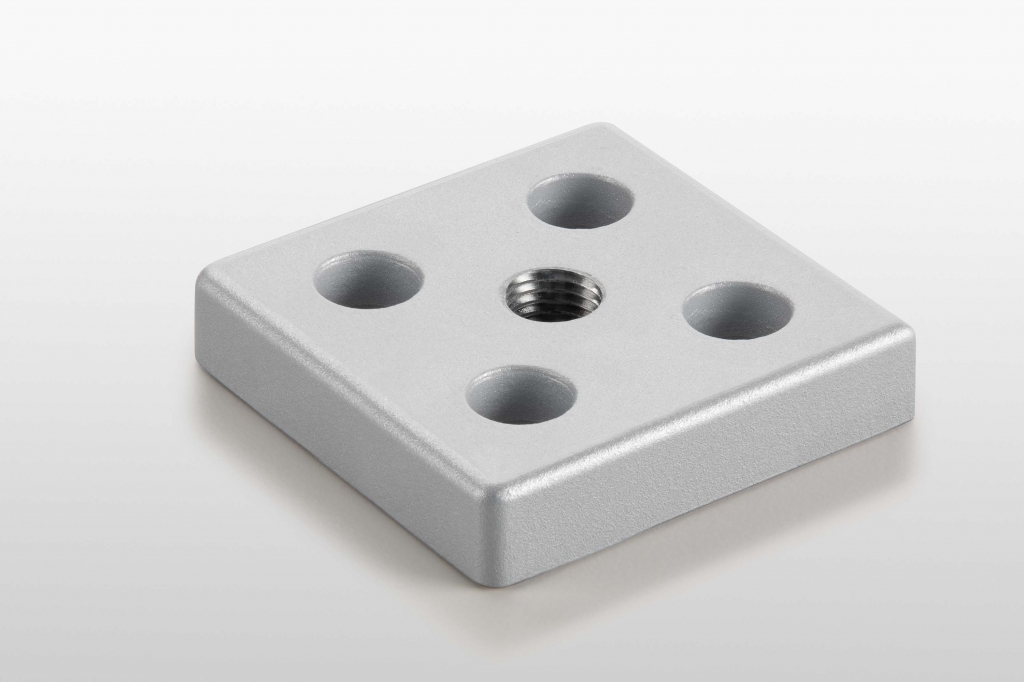

Secure connection! Base Plate 8 80×40 and Base Plate 8 80×80 are screwed into the core bores of profiles at the end face.

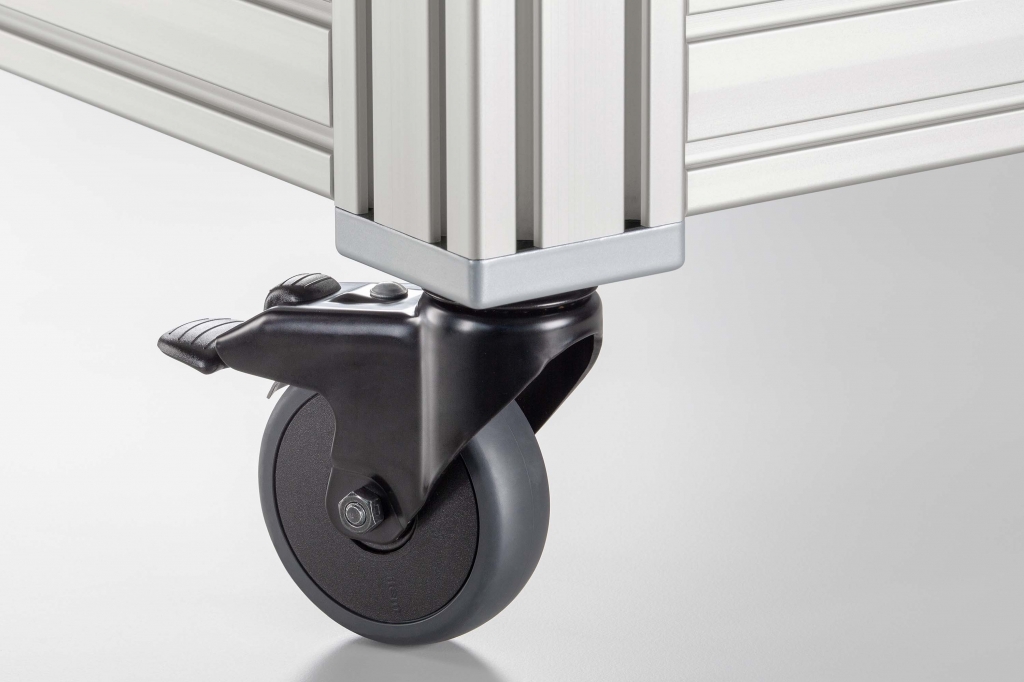

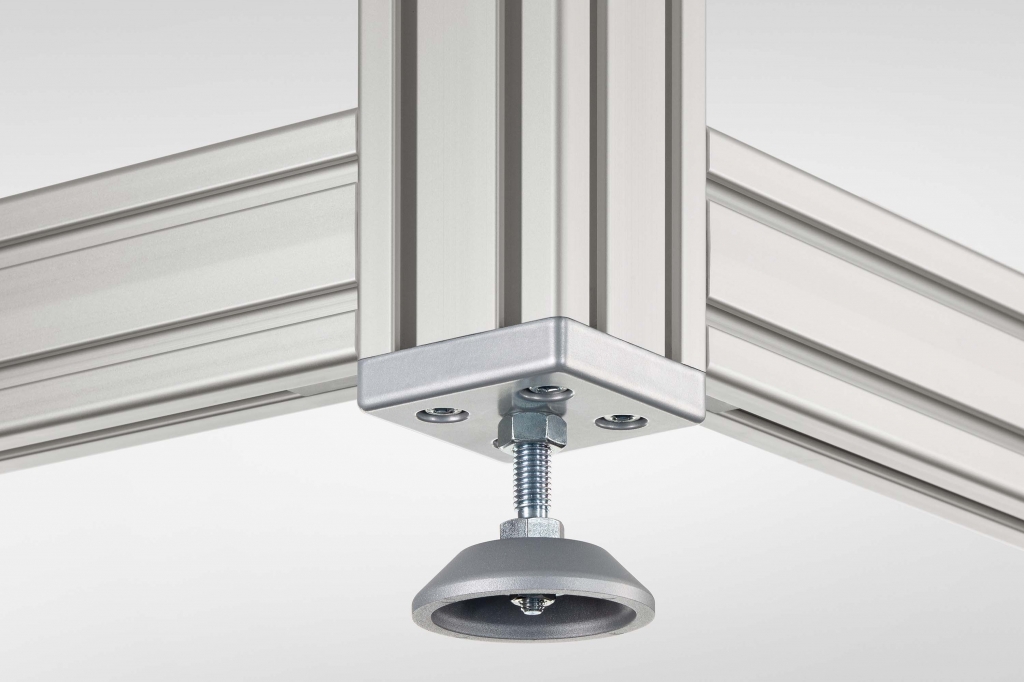

The threaded hole in the centre accommodates castors and feet.
They are available with an M10, M12 or M16 thread.
The 16mm-thick plates made of die-cast zinc have a white aluminum powder coating, blending in perfectly with the overall look of a construction.
| Weight | 1.068 lbs |
|---|---|
| Dimensions | 80 × 80 × 16 mm |
| Line | Line 8 |
| Material | Die-cast zinc |
| Property | white aluminum, similar to RAL 9006 |
| Delivery unit | 1 pce. |
| Thread | M10 |
| Weight | m = 484 g |
An M8x18 thread must be tapped in a core bore before the Base Plate can be screwed into it. Hexagon Socket Head Cap Screw DIN 912-M8x25 (0.0.610.71) is used as a fastener.
Fastening Set 8 6-8mm with Hexagon Socket Head Cap Screw M8 (0.0.684.91) is used to create a screw connection with a Line 8 groove.
In both cases, the tightening torque is 25 Nm.
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 |
22041424
|
| eCl@ss 4.1 |
22041424
|
| eCl@ss 5.0 | 23250311 |
| eCl@ss 5.1 | 23250311 |
| eCl@ss 6.0.1 | 23250311 |
| eCl@ss 7.1 | 23360290 |
| eCl@ss 8.0 | 23360290 |
| UNSPSC 7.0 | 31162503 |
| UNSPSC 9.0 | 31162503 |
| Customs Tariff Number | 76169910 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
