Home/Shop/Racks & Carts/New Products/Fastener D30-45°, internal
Fastener D30-45°, internal - 0.0.678.66

Fastener D30-45°, internal

SKU: 0.0.678.66

Categories:
,

Description

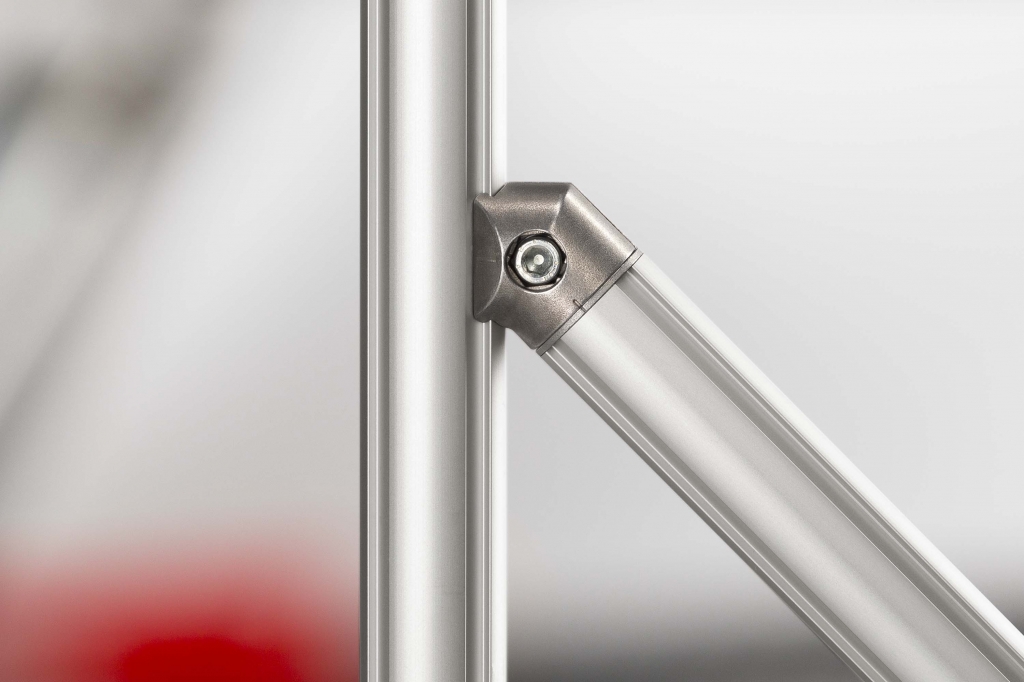

For smooth and elegant diagonals!

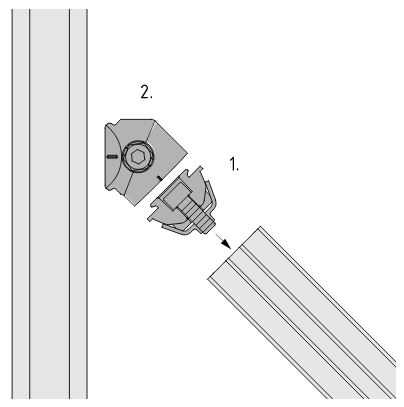

Fastener D30-45°, internal uses internal clamping technology from item to create a smooth transition between fastener and Profile Tube. On the one hand, it looks great. On the other hand, it also makes the fastener ideal for retrofitting into the tightest of spaces. This means additional struts can be rapidly built into constructions to provide extra reinforcement.

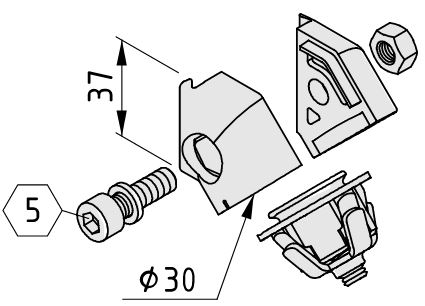

Partially preassembled

  • 2 fastener halves, die-cast Al, natural
  • Internal Fastener D30 tube insert
  • Hexagon Socket Head Cap Screw M6x20, St, bright zinc-plated
  • Hexagon nut DIN 934-M6-5, St, bright zinc-plated

Fastener D30-45°, internal - 0.0.678.66

Additional information

Weight 0.128 lbs
Line

Line D30
Delivery unit

1 set
ESD

Yes
Weight

m = 58 g
Torque

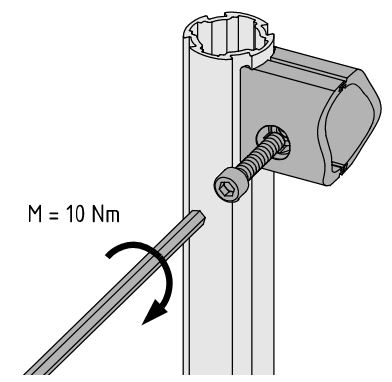

M = 10 Nm

More details

Fastener D30-45°, internal - 0.0.678.66
Fastener D30-45°, internal - 0.0.678.66
Fastener D30-45°, internal - 0.0.678.66

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0 22041424
eCl@ss 4.1 22041424
eCl@ss 5.0 23250311
eCl@ss 5.1 23250311
eCl@ss 6.0.1 23250311
eCl@ss 7.1 23360290
eCl@ss 8.0 23360290
UNSPSC 7.0 31162503
UNSPSC 9.0 31162503
Customs Tariff Number
83024900

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
