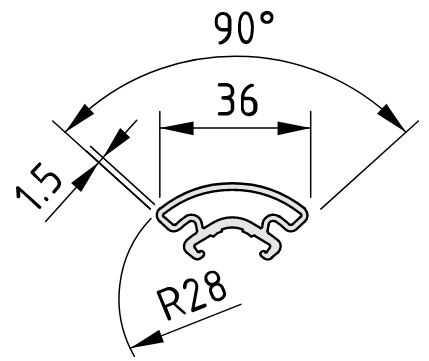

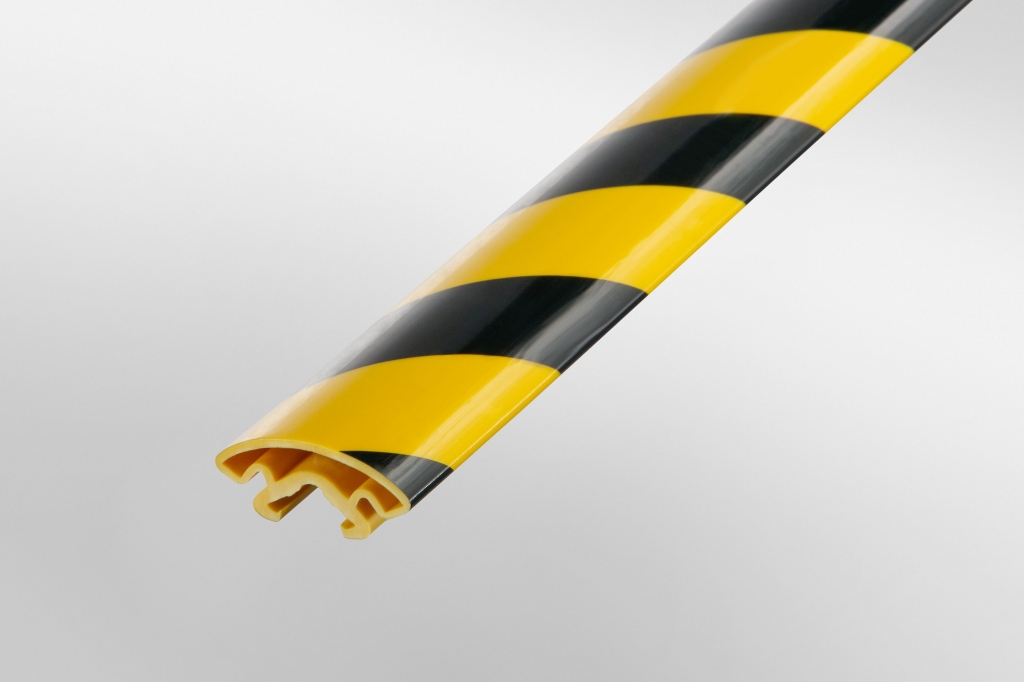

Warning and Protective Profile D30 R28-90°, yellow

SKU: 0.0.675.25

Description

Doubly safe!

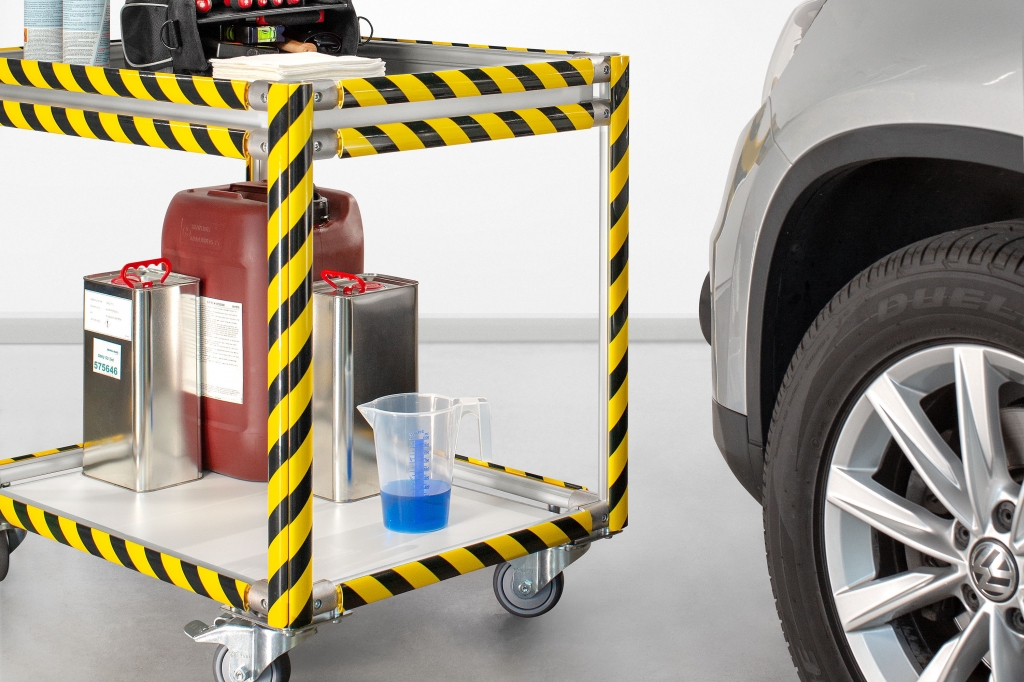

Warning and Protective Profile D30 R28-90° combines Protective Profile D30 R28-90° with hatched yellow and black warning markings. The strikingly coloured impact protection can be used to highlight hazard areas such as exposed profiles and protect both man and material in equal measure. The elastic chamber of the Protective Profile deforms to absorb impacts.

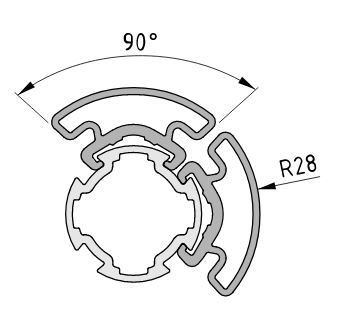

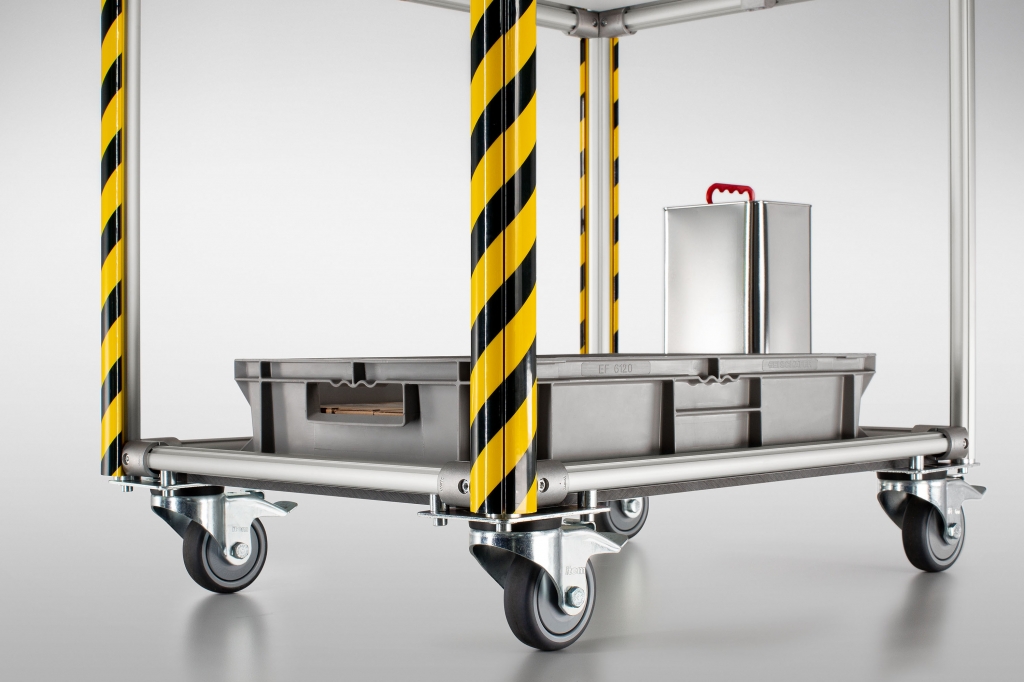

Warning and Protective Profile D30 R28-90° can be fitted in seconds and is simply clipped onto the flank of a Profile Tube D30 or Profile 6 D30. It is resistant to typical, day-to-day impacts and prevents scratches, too. If the basic frame is modified, the Warning and Protective Profile can be easily removed without leaving any traces and can then be simply clipped back into place. This also makes it ideal as a temporary warning sign.

Warning and Protective Profile D30 R28-90°, yellow, similar to RAL 1023 - 0.0.675.25Warning and Protective Profile D30 R28-90°, yellow, similar to RAL 1023 - 0.0.675.25

Additional information

Weight 0.937 lbs
Line

Line D30

Material

PP/TPE

Property

yellow, similar to RAL 1023

Delivery unit

1 pce., length 6.57 ft

Weight, spec. Length

m = 212.5 g/m

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.

eCl@ss 4.0
35030108
eCl@ss 4.1
35030108
eCl@ss 5.0 35030190
eCl@ss 5.1 35030190
eCl@ss 6.0.1 23369290
eCl@ss 7.1 23369290
eCl@ss 8.0 23369290
UNSPSC 7.0 31141502
UNSPSC 9.0 31141502
Customs Tariff Number 39161000

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
