Tool Balancer

Tool Balancer 10-14 kg

SKU: 0.0.674.98

Categories:
,

Description

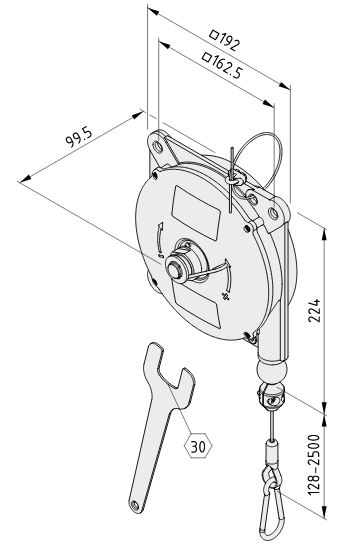

  • Casing
  • Steel cable ø 2.5 mm, St, stainless
  • Arrester mechanism: Steel cable ø 2 mm, St, stainless; steel cable clamp, St, bright zinc-plated
  • Spring hook, St
  • Wrench 30 A/F, St, bright zinc-plated
  • Notes on Use and Installation

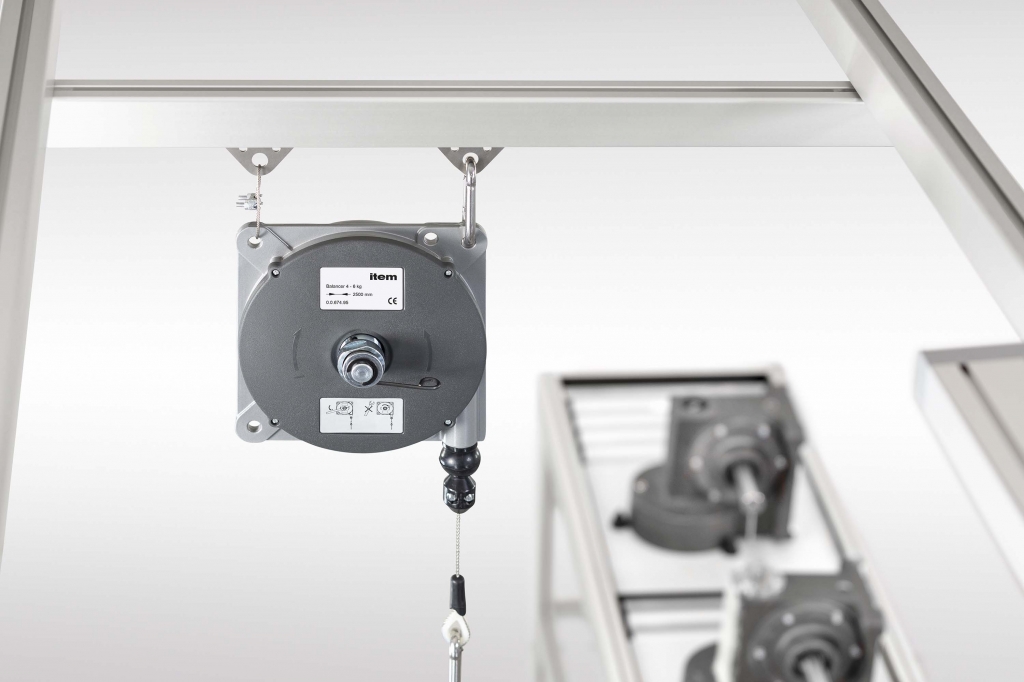

Out of the way, but close to hand! Tool Balancers from item ensure tools are at the right height for employees to reach. When not required, the Tool Balancer automatically removes the tool from the immediate working area. Because the retraction force can be manually set, the Tool Balancer can be adjusted to perfectly match the weight of the tool. This takes a considerable amount of strain off employees who are working with heavy tools. An arrester mechanism is also included as standard.
Employees can customize any of the Tool Balancers to their reaching height using a screw-adjusted stopper. Useful accessories include Runway Profile 8 40×40 (0.0.623.61), Tool Slide 40×40 (0.0.653.41) and Spring Hook 80 D8 (0.0.619.70).

Additional information

Weight 8.378 lbs
Delivery unit

1 set
Weight

m = 3.8 kg

Adjustments

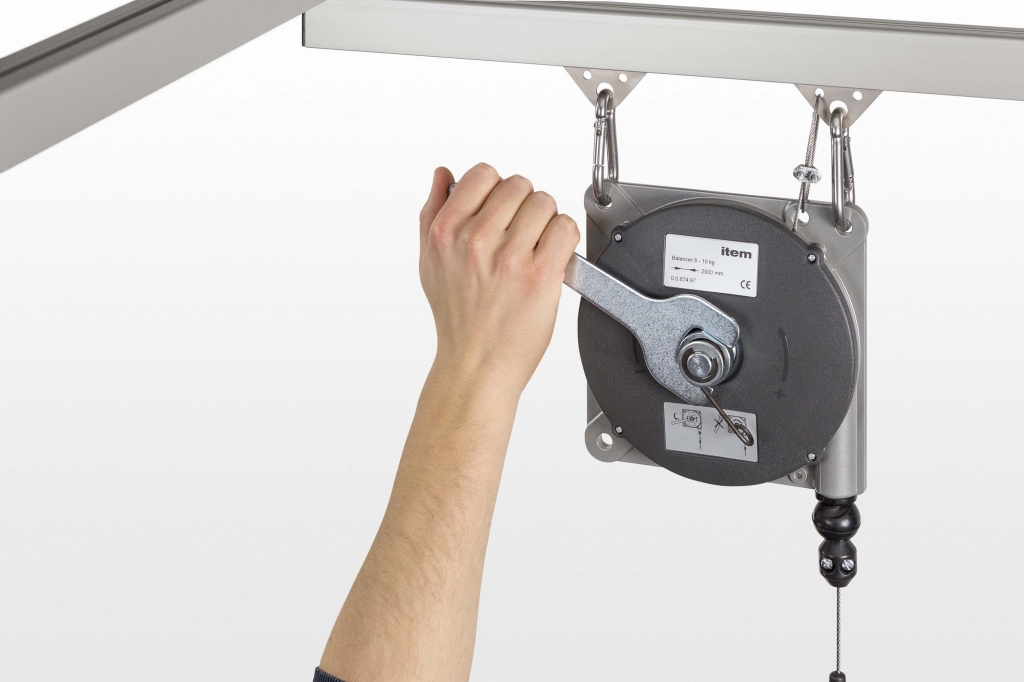

To adjust the Tool Balancer for the maximum tensile load, use the tool included in the scope of supply, turning it anti-clockwise.

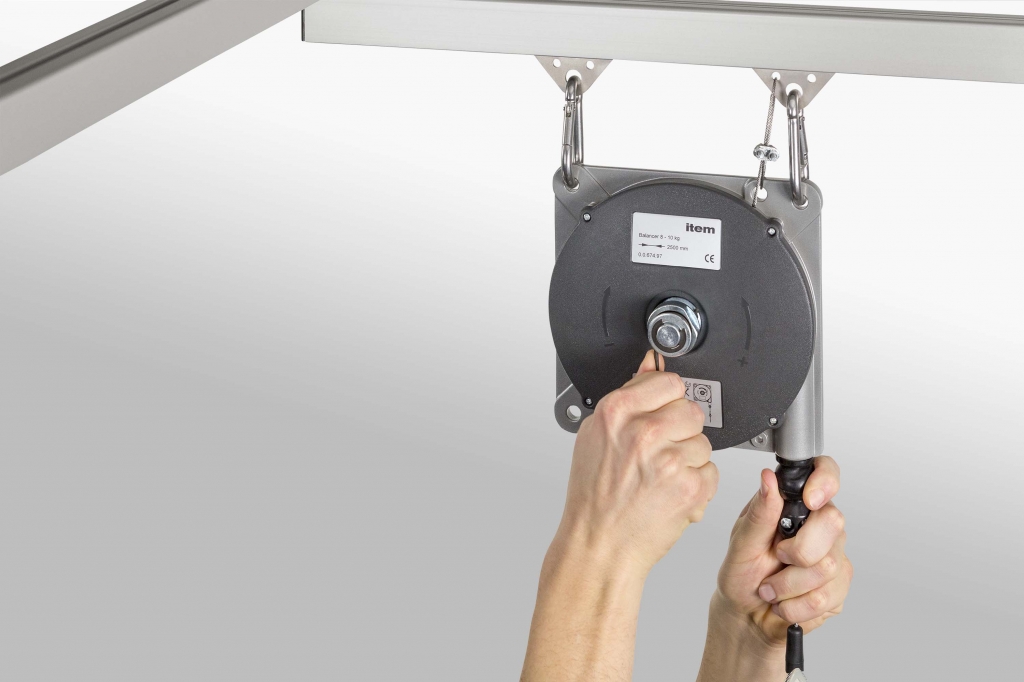

To adjust the Tool Balancer for the minimum tensile load, use the loop on the casing, turning it clockwise.

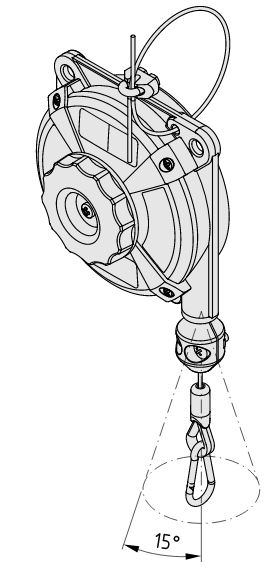

Maximum pullout-/swinging angle

.
Tool Balancer

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0 21100201
eCl@ss 4.1 21100201
eCl@ss 5.0 21100201
eCl@ss 5.1 21100201
eCl@ss 6.0.1 21100290
eCl@ss 7.1 21100290
eCl@ss 8.0 21100290
UNSPSC 7.0 56111905
UNSPSC 9.0 56111905
Customs Tariff Number 84251900

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
