Cap 8 160x80 St - 0.0.674.49

Cap 8 160×80 St

SKU: 0.0.674.49

Categories:
, , , Tag:

Description

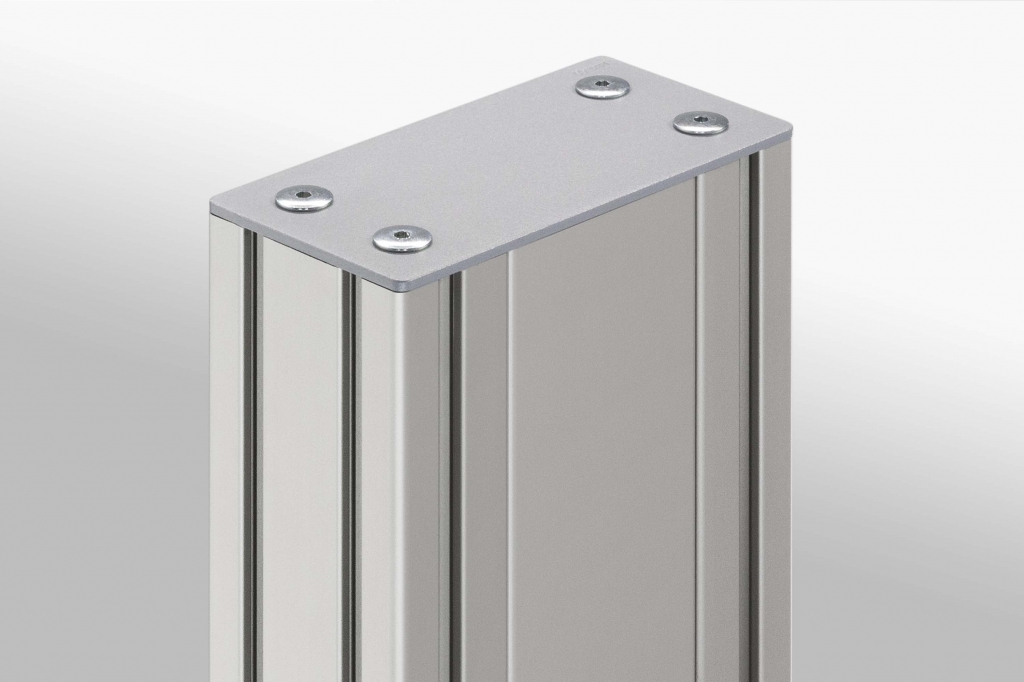

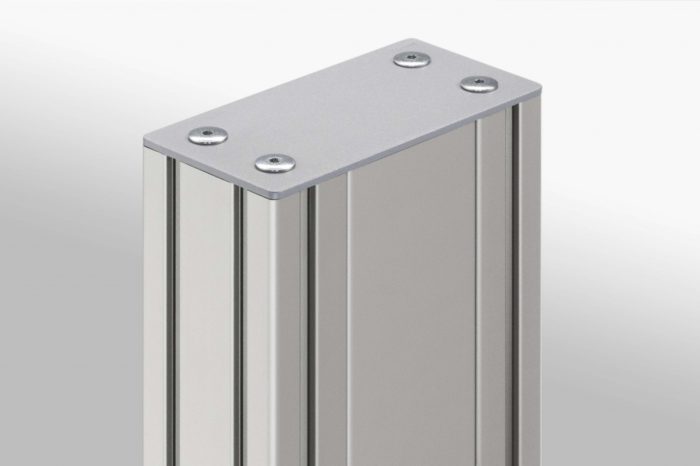

The perfect and safe finishing touch! The screw-attached Cap 8 160×80 St seals the end-face of Installation Profile 8 160×80 K76. Cap 8 160×160 St is used with Installation Column Profile 8 160×160 K76 (0.0.663.39).
The Cap, combined with Cover Profile 76 Al (0.0.663.41), keeps dust out of the cable conduit. It is advisable to fit the Cap when using Sealing Plugs D19, as it ensures the Sealing Plugs cannot be forced out of the compressed air conduits. It also covers over cut edges safely.
Cap 8 160x80 St - 0.0.674.49

  • Cap 8 160×80, St, white aluminum similar to RAL 9006
  • 4 dome-head screws M8x14, St, bright zinc-plated

Additional information

Weight 0.715 lbs

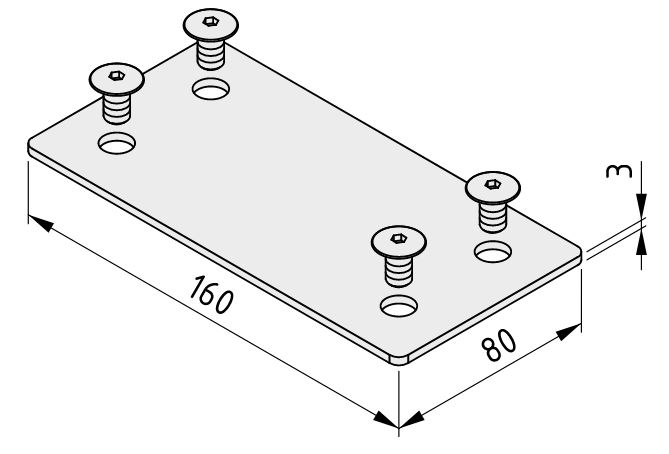

Dimensions 160 × 80 × 3 mm
Line

Line 8
Delivery unit

1 set
Weight

m = 324 g

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0
22041441
eCl@ss 4.1 22041441
eCl@ss 5.0 37070517
eCl@ss 5.1 37070517
eCl@ss 6.0.1 23369290
eCl@ss 7.1 23369290
eCl@ss 8.0 23369290
UNSPSC 7.0 31141501
UNSPSC 9.0 31141501
Customs Tariff Number 73269098

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
