Description

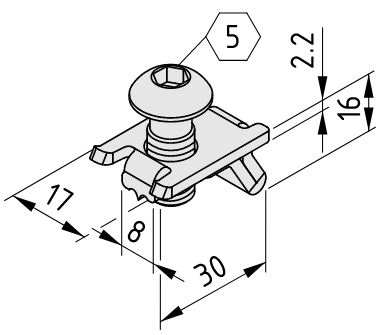

The Standard-Fastening Set 8, one-sided consists of:
- Standard connecting plate 8, one-sided, St, bright zinc-plated
- Special Button-Head Screw similar to ISO 7380 M8x20, St, bright zinc-plated
Additional information
| Weight | 0.042 lbs |
|---|---|
| Line | Line 8 |
| Delivery unit | 1 set |
| Torque | M = 25 Nm |
| Weight | m = 19 g |
More details
 |

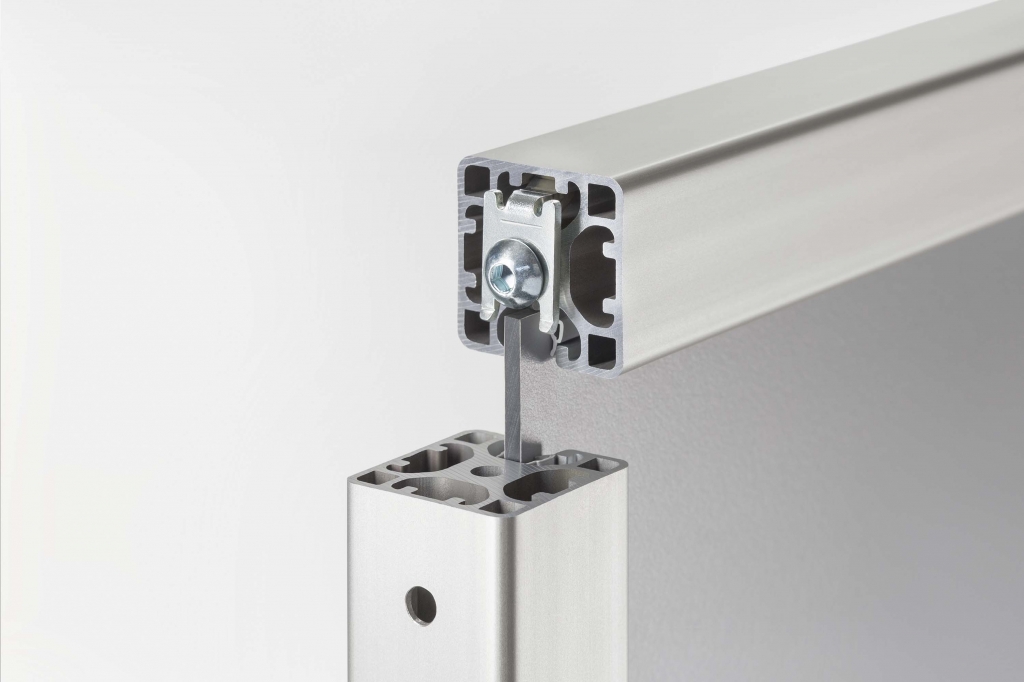

The necessary thread is tapped directly into the core bore of the profiles. |
 |
|
 |
Position of the through holes for the key. |
 |

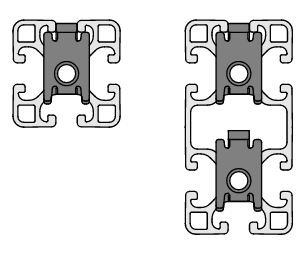

The standard connecting plates can be arranged to match the way in which the profiles are fitted. Large profiles with high load-bearing capabilities can be connected using a larger number of Standard Fasteners. |
 |

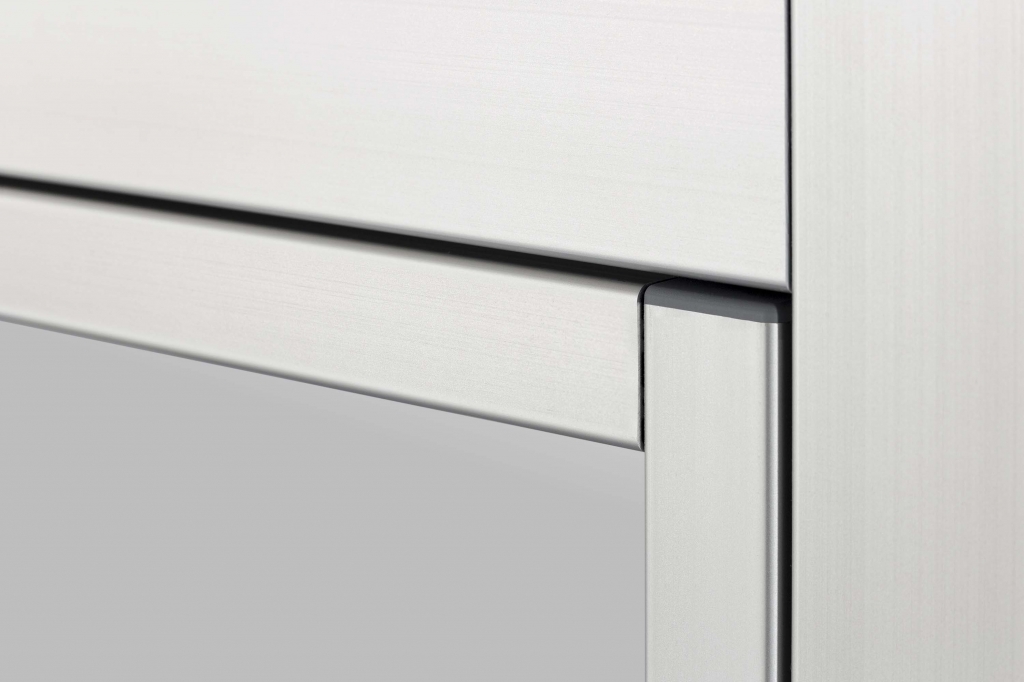

Standard-Fastening Set 8, one-sided has a modified centring feature that allows users to offset profiles. This means that right-angled profile connections can be achieved with a flush fit that factors in Caps (a). Furthermore, because the anti-torsion feature is located on just one side, the internal grooves are left clear. This means that panel elements can be inserted into the grooves without having to trim the corners first (b). |
Classifications
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 22041424 |
| eCl@ss 4.1 | 22041424 |
| eCl@ss 5.0 | 23250311 |
| eCl@ss 5.1 | 23250311 |
| eCl@ss 6.0.1 | 23250311 |
| eCl@ss 7.1 | 23360290 |
| eCl@ss 8.0 | 23360290 |
| UNSPSC 7.0 | 31162503 |
| UNSPSC 9.0 | 31162503 |
| Customs Tariff Number | 83024200 |
Special Features
 |
These components are protected against electrostatic discharge. Static discharge can damage electrical components. ESD-safe components safely dissipate differences in potential. |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
