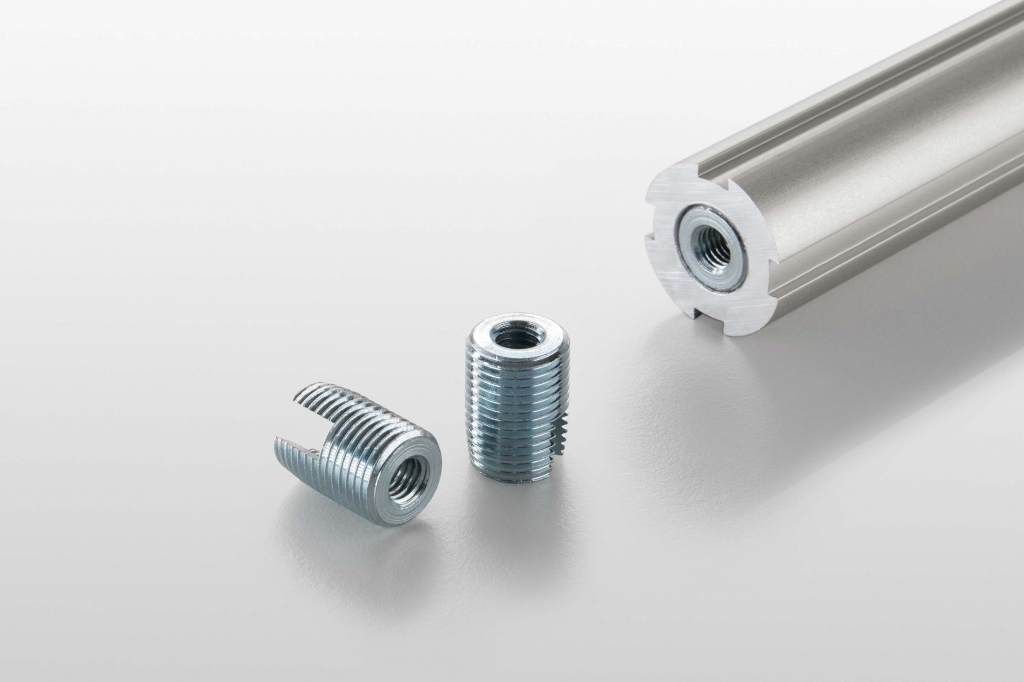

The combination for a particularly strong hold!

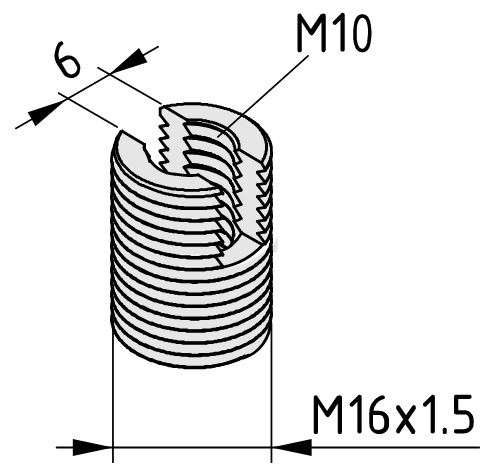

When combined with reinforced Profile Tube D30 heavy duty, these Threaded Inserts can accommodate extremely high compressive and tensile loading. The self-tapping Inserts are available for M8, M10 and M12 threads. Loads up to 20,000 N pose no problems.

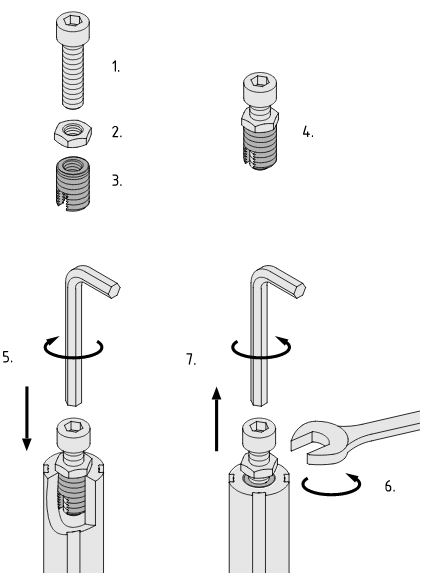

The Threaded Inserts can be used to screw all sorts of attachments into the end face of Profile D30 heavy duty. They are typically used for Adjustable Feet and Castors.
| Weight | 0.034 lbs |
|---|---|
| Line | Line D30 |
| Material | St |
| Property | bright zinc-plated |
| Delivery unit | 1 pce. |
| Force max | Fmax = 20000 N |
| Weight | m = 15.4 g |
| ESD | Yes |
Fmax = 20000 N
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 22041441 |
| eCl@ss 4.1 | 22041441 |
| eCl@ss 5.0 | 37070517 |
| eCl@ss 5.1 | 37070517 |
| eCl@ss 6.0.1 | 23369290 |
| eCl@ss 7.1 | 23369290 |
| eCl@ss 8.0 | 23369290 |
| UNSPSC 7.0 | 31162503 |
| UNSPSC 9.0 | 31162503 |
| Customs Tariff Number | 73181900 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
