Plain Bearing Sleeve D40/D30 ESD, black similar to RAL 9005

SKU: 0.0.665.63

Categories:
,

Description

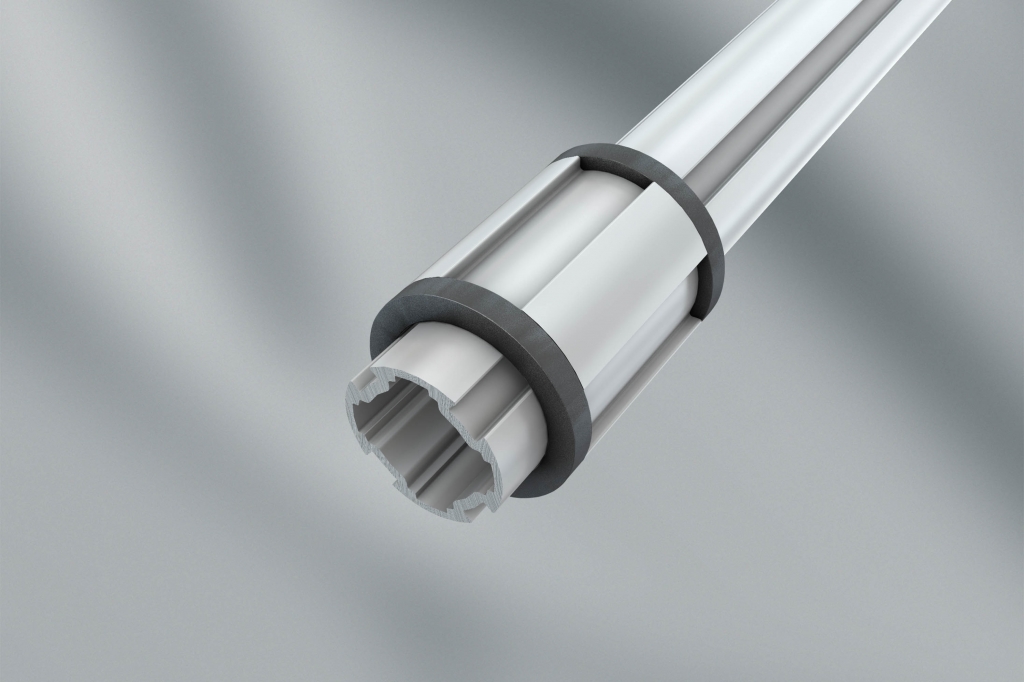

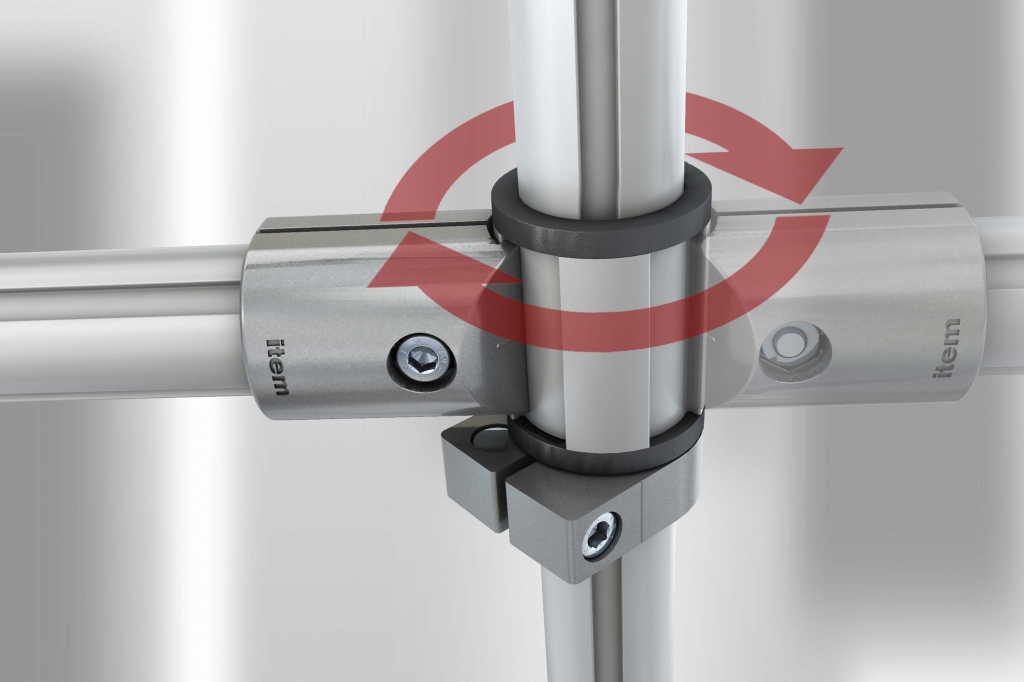

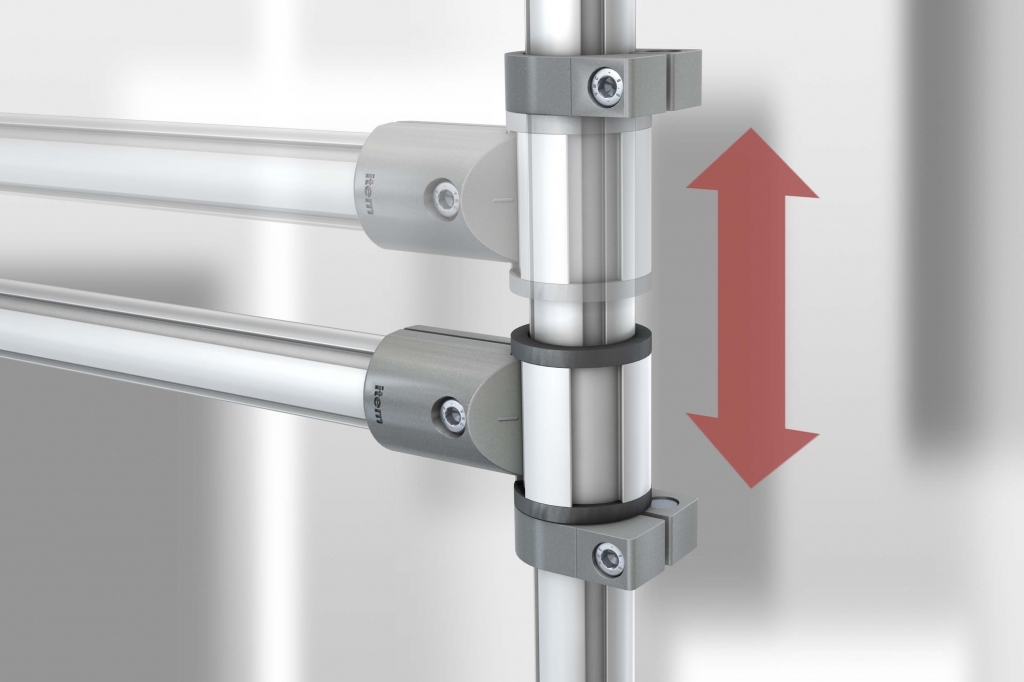

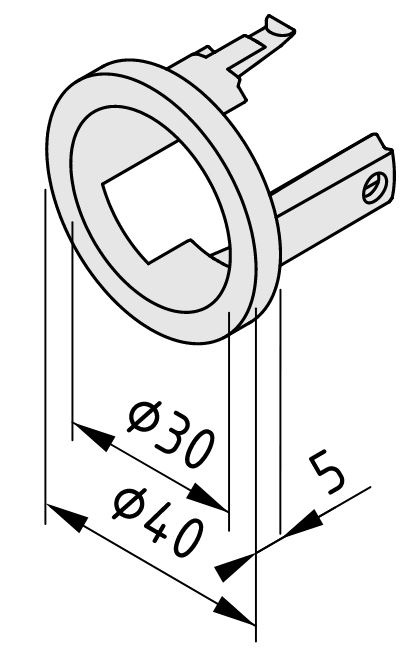

The set comprises two Plain Bearing Sleeves D40/D30 and a 40 mm cut-off of Profile Tube D40/D30. Additional profiles and accessories can be fastened to the Plain Bearing. The tabs on the Plain Bearing Sleeve interlock so that they cannot slip out of the profile.
Plain Bearing D40/D30-50 is supplied preassembled, is ESD-safe and measures 50 mm in length.

Plain Bearing Sleeve D40/D30 ESD, black similar to RAL 9005 - 0.0.665.63

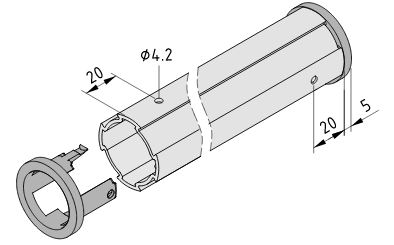

If the Profile Tube D40/D30 (0.0.666.63) is longer than 50 mm, 4 holes need to be drilled into the aluminum profile. This means that plain bearings can be built in custom lengths.
Plain Bearing Sleeve D40/D30 ESD, black similar to RAL 9005 - 0.0.665.63

Additional information

Weight 0.014 lbs
Line

Line D30
Material

POM
Property

black similar to RAL 9005
Delivery unit

1 pce.
Weight

m = 6 g
ESD

Yes

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.

eCl@ss 4.0 23050402
eCl@ss 4.1 23050402
eCl@ss 5.0 23050107
eCl@ss 5.1 23050107
eCl@ss 6.0.1 23050107
eCl@ss 7.1 23050191
eCl@ss 8.0 23050191
UNSPSC 7.0 31162703
UNSPSC 9.0 31162703
Customs Tariff Number 39269097

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
