Home/Shop/Parts, New Products, Work Stations, Material Supply, Work Bench Equipment/Tray Pivot Arm 8 80-370
Tray Pivot Arm 8 80-370 - 0.0.663.15

Tray Pivot Arm 8 80-370

SKU: 0.0.663.15

Categories:
, , , ,

Description

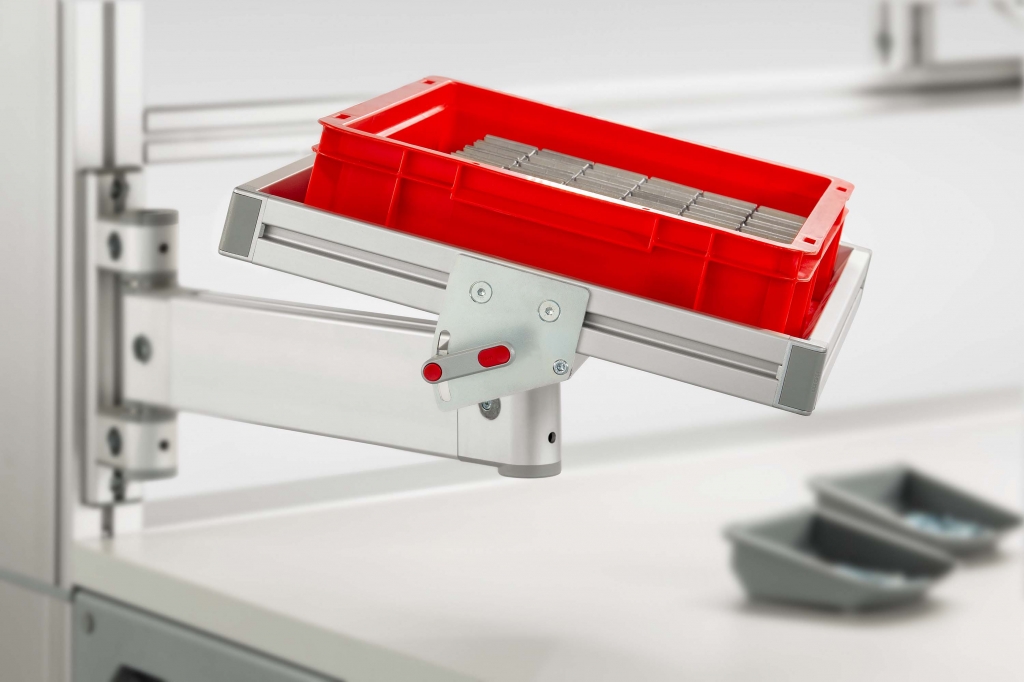

The Tray Pivot Arm allows users to perfectly position a versatile storage surface for crates, work pieces or tools.
Due to its three axes, Tray Double Pivot Arm 8 80-695 has a wide radius of action and can be positioned with great flexibility. Maximum load-carrying capacity is 25 kg.
Tray Pivot Arm 8 80-370 can carry a total load weighing up to as much as 40 kg.

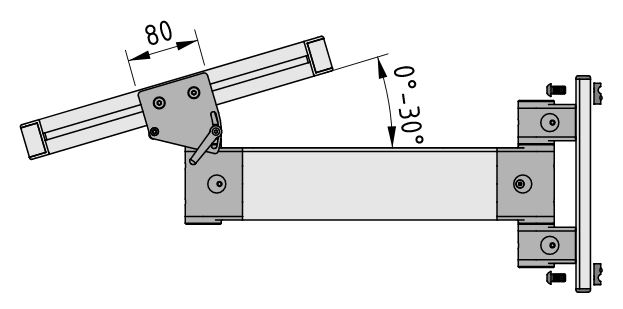

The all-round edging made of aluminum profile provides a secure hold, even when the tray (usable surface: 410×310 mm) is tilted using the series-standard angle adjustment mechanism. Contents are always in easy view and can be picked and returned to the highest ergonomic standards.

Tray Pivot Arm 8 80-370 - 0.0.663.15

  • Pivot Arm 8 80-370 with height-adjustment mechanism
  • Tray 4×3 ESD

Additional information

Weight 11.244 lbs
Line

Work Bench System, Line 8
Delivery unit

1 set
Weight

m = 5.10 kg
Force max

Fmax. = 400 N
ESD

Yes

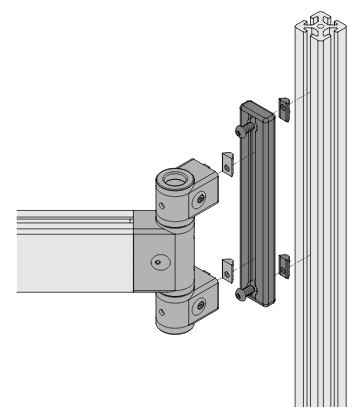

Installation

Tray Pivot Arm 8 80-370 - 0.0.663.15 Tray Pivot Arm 8 80-370 - 0.0.663.15

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0 21100201
eCl@ss 4.1 21100201
eCl@ss 5.0 21100201
eCl@ss 5.1 21100201
eCl@ss 6.0.1 21100290
eCl@ss 7.1 21100290
eCl@ss 8.0 21100290
UNSPSC 7.0 56111905
UNSPSC 9.0 56111905
Customs Tariff Number 84879090

Special Features

ESD safe These components are protected against electrostatic discharge.
Static discharge can damage electrical components. ESD-safe components safely dissipate differences in potential.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
