Home/Shop/Accessories, Hinges & Fittings/Hinge Leaf Profile V 8 z 18 light, natural
Hinge Leaf Profile V 8 z 18 light, natural - 0.0.662.42

Hinge Leaf Profile V 8 z 18 light, natural

SKU: 0.0.662.40

Categories:
,

Description

Better doors thanks to greater freedom for Clamp Profile 8 32×18!
Clamp Profile (0.0.373.67) is ideal for building stable, lightweight doors, guards, enclosures and sliding doors. Its particularly slim frame holds panel elements securely in place using Clamping Springs.

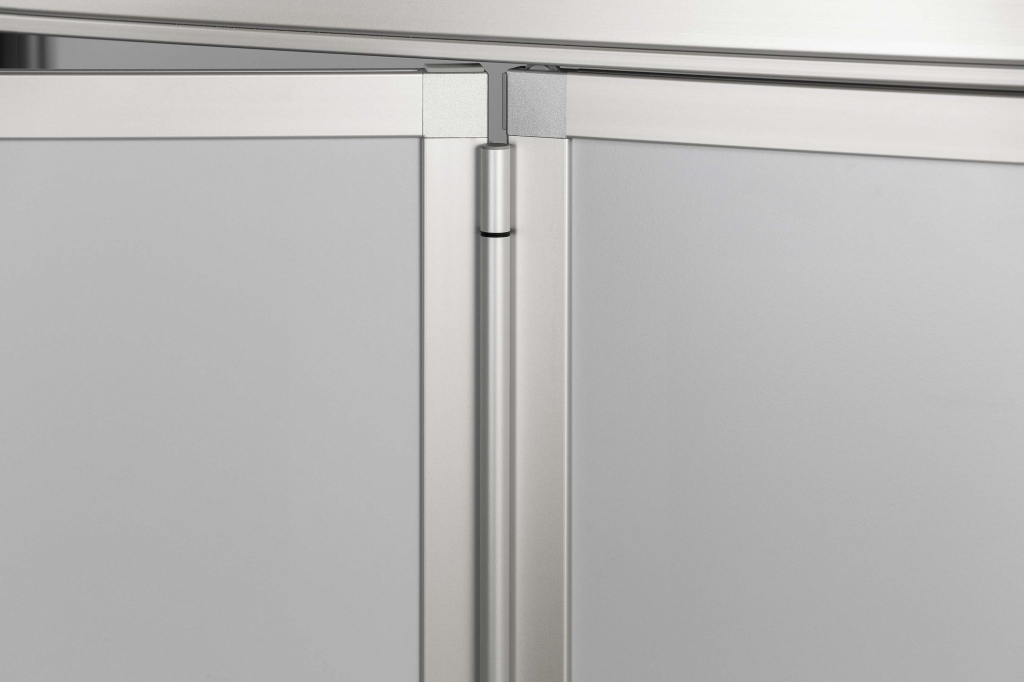

Hinge Leaf Profile V 8 z 18 is used to build solid doors. It connects a frame made of Line 8 profiles to a structure built using Line 8 profiles. This Hinge can be ordered in a customised length so that it can distribute forces and minimise jamming hazards. When using suitable bolts, continuous hinge strips can be built that cover over the door gap. Hinge Leaf Profile V 8 z light can also be used to construct simple doors.

Hinge Leaf Profile V 8 z 18 light, natural - 0.0.662.42 Hinge Leaf Profile V 8 z 18 light, natural - 0.0.662.42





Additional information

Weight 0.73 lbs
Dimensions 609 mm
Line

Line 8
Delivery unit

cut-off length 2 ft
Material

Al, anodized
Property

natural
Weight, spec. Length

m = 0.54 kg/m

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0 35020106
eCl@ss 4.1 35020106
eCl@ss 5.0 35020190
eCl@ss 5.1 35020190
eCl@ss 6.0.1 23360101
eCl@ss 7.1 23360101
eCl@ss 8.0 23360101
UNSPSC 7.0 30102306
UNSPSC 9.0 30102306
Customs Tariff Number 76042100

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
