Home/Shop/Racks & Carts/Fasteners/Butt Fastener D30-45°
Butt Fastener D30-45° - 0.0.662.15

Butt Fastener D30-45°

SKU: 0.0.662.15

Categories:
,

Description

  • 2 butt fastener halves, die-cast aluminum, natural
  • Washer, St, bright zinc-plated
  • Hexagon Socket Head Cap Screw DIN 912-M6x28, St, bright zinc-plated
  • Hexagon nut DIN 934-M6, St, bright zinc-plated

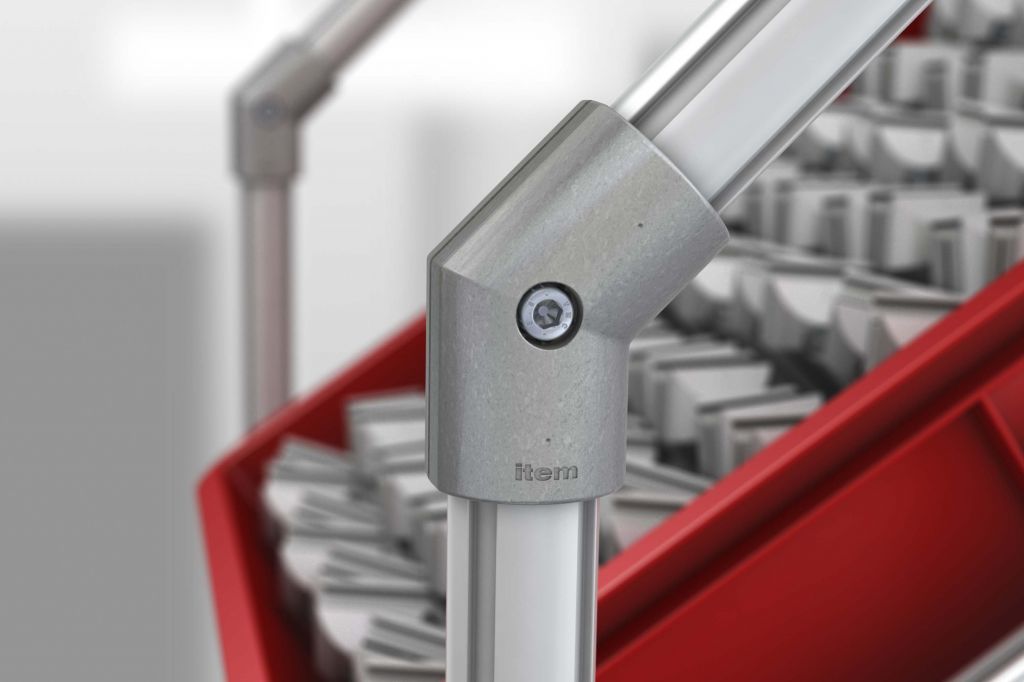

The alternatives to a right angle: Butt Fasteners make Profile Tube System D30 even more versatile. Do you need to extend a profile, create rounded corners or chamfer a frame? Then there are creative and strong fasteners to help you do just that by connecting Profile Tubes D30 via their end faces.

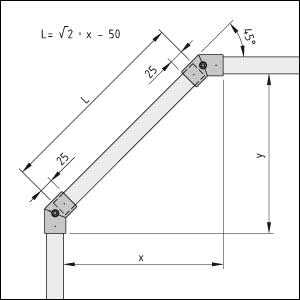

For direct connections at a diagonal: Following on from 30° (0.0.646.10) and 60° (0.0.646.94 ), there is now a happy medium in the form of Butt Fastener D30-45°. For example, this fastener can be used to design octagonal table tops.

Note:
Ball Joint Fastener D30 (0.0.646.85) can be used to create supporting struts and profile connections at any angle.


………………………………………..

Additional information

Weight 0.29 lbs
Line

Line D30
Delivery unit

1 set
Antistatic

No
Torque

M = 10 Nm

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0  22041424
eCl@ss 4.1  22041424
eCl@ss 5.0  23250311
eCl@ss 5.1  23250311
eCl@ss 6.0.1  23250311
eCl@ss 7.1  23360290
ECLASS80  23360290
UNSPSC 7.0  31162503
UNSPSC 9.0  31162503
Customs Tariff Number  83024900

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
