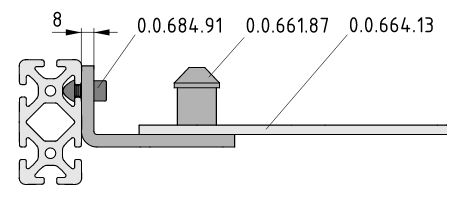

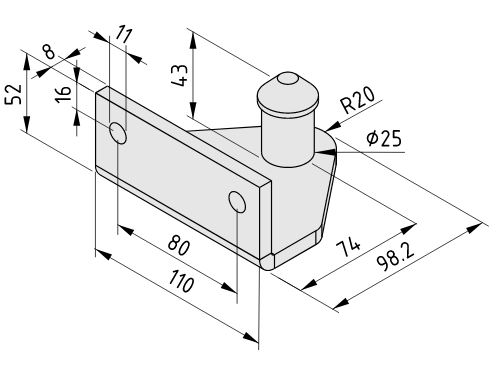

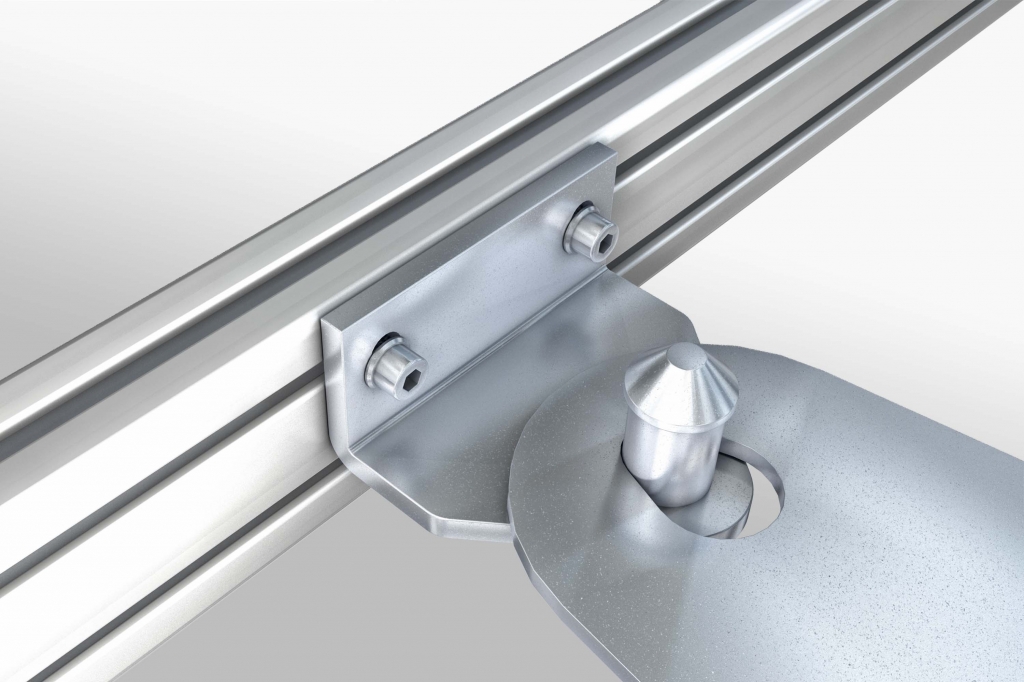

When using the version of Drawbar D25-686 without the self-lifting mechanism, the pin of the coupling should point upward.
The dead weight of the steel Drawbar ensures that the connection holds. Because there is no spring-loaded lifting mechanism, the Drawbar has to be moved into its park position by hand.
| Weight | 2.06 lbs |
|---|---|
| Line | Line 8 |
| Material | St, bright zinc-plated |
| Delivery unit | 1 pce. |
| Weight | m = 934 g |
| ESD | Yes |
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 |
21070301
|
| eCl@ss 4.1 |
21070301
|
| eCl@ss 5.0 |
21070301
|
| eCl@ss 5.1 |
21070301
|
| eCl@ss 6.0.1 | 21070390 |
| eCl@ss 7.1 | 21070390 |
| eCl@ss 8.0 | 21070390 |
| UNSPSC 7.0 | 24101706 |
| UNSPSC 9.0 | 24101706 |
| Customs Tariff Number | 73269098 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
