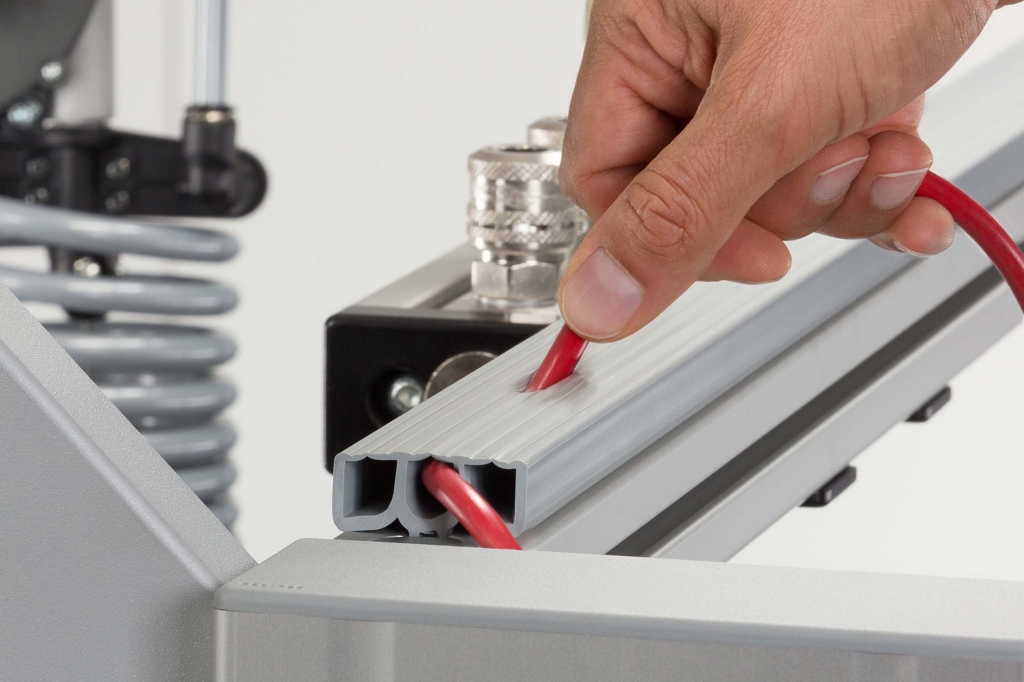

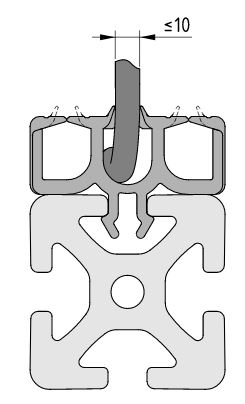

The fastest cable conduit solution from item – simply cut to length and press into a Line 8 groove.

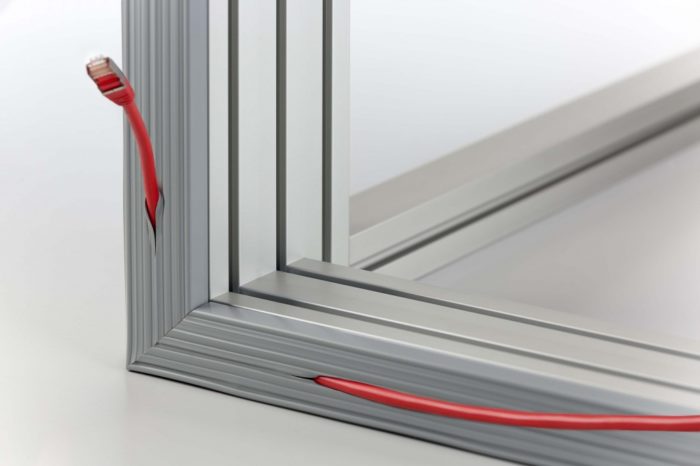

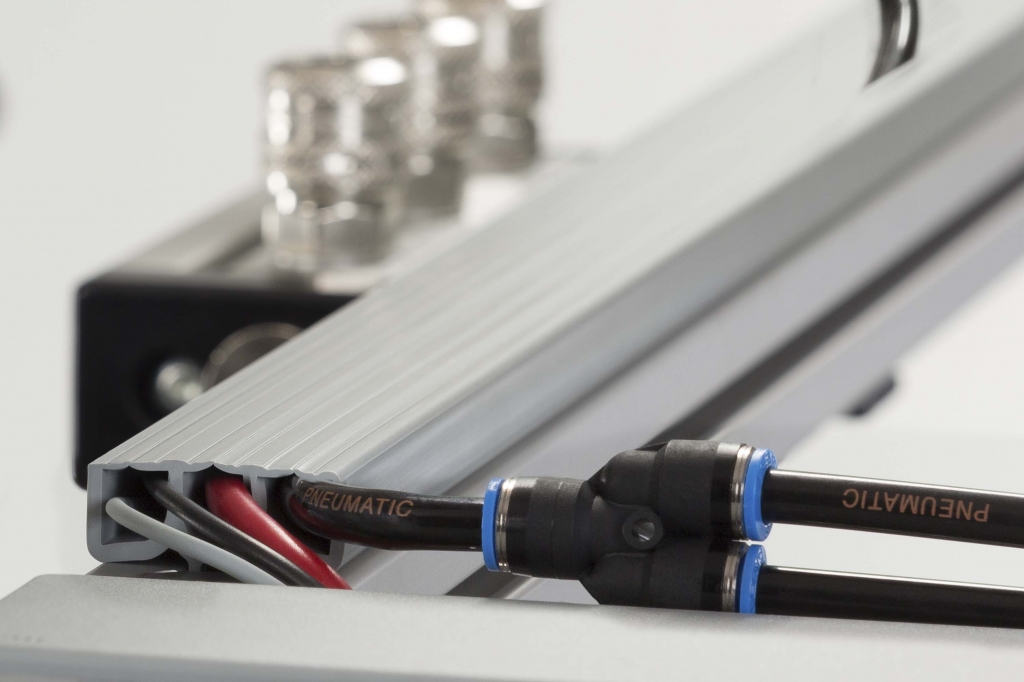

The profile incorporates three separate conduits, which makes it incredibly easy to lay and replace individual cables as necessary. Cables can even be laid around corners by pushing Cable Guide Profiles up against each other.

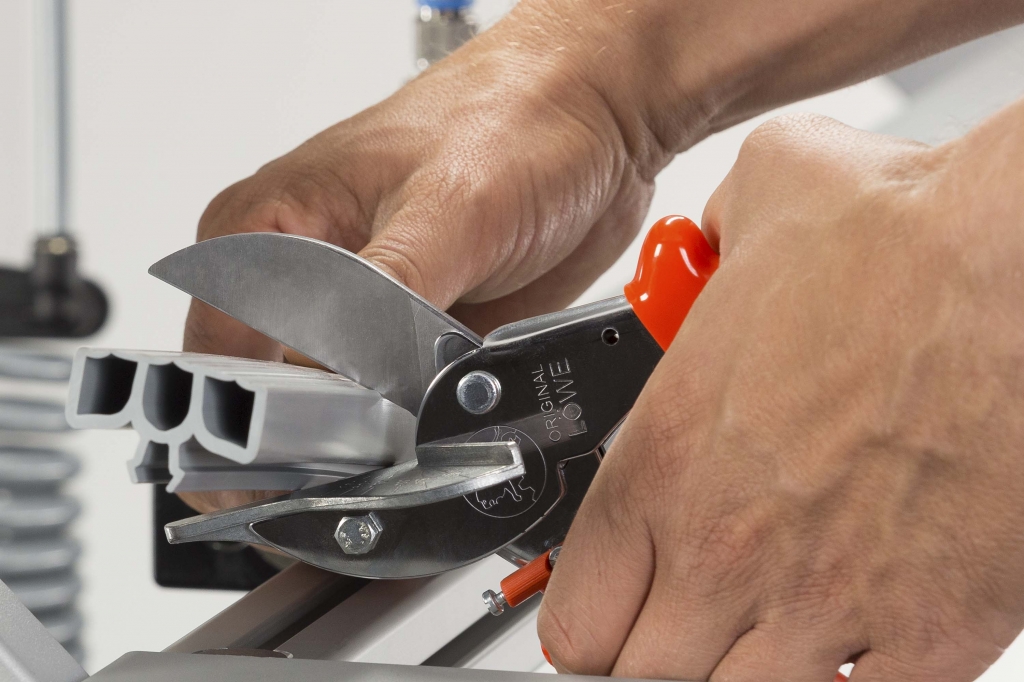

item Multi-Purpose Pliers (0.0.265.63) are all that is needed to cut the profile to size.
| Weight | 0.157 lbs |
|---|---|
| Line | Work Bench System |
| Material | PVC |
| Property | grey similar to RAL 7042 |
| Delivery unit | 1 pce., length 6.57 ft |
| Weight, spec. Length | m = 0.46 kg/m |

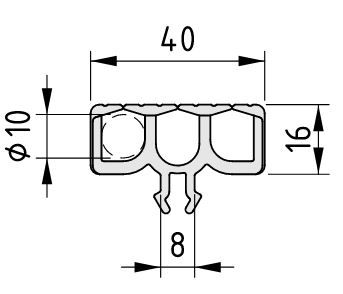

| Cross-sectional area | A = 3.3 cm² |
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 27140799 |
| eCl@ss 4.1 | 27140799 |
| eCl@ss 5.0 | 27140707 |
| eCl@ss 5.1 | 27140707 |
| eCl@ss 6.0.1 | 27140706 |
| eCl@ss 7.1 | 27140702 |
| eCl@ss 8.0 | 27140702 |
| UNSPSC 7.0 | 30102315 |
| UNSPSC 9.0 | 30102315 |
| Customs Tariff Number | 39259020 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
