Home/Shop/Parts, Machine accessories, Work Stations, Work Bench Equipment/Monitor Mounting Joint 8 VESA 75-100
Monitor Mounting Joint 8 VESA 75-100 - 0.0.653.42
Monitor Mounting Joint 8 VESA 75-100 - 0.0.653.42

Monitor Mounting Joint 8 VESA 75-100

SKU: 0.0.653.42

Categories:
, , ,

Description

Strong support for all:

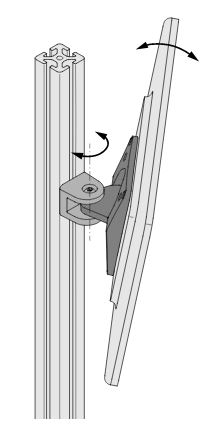

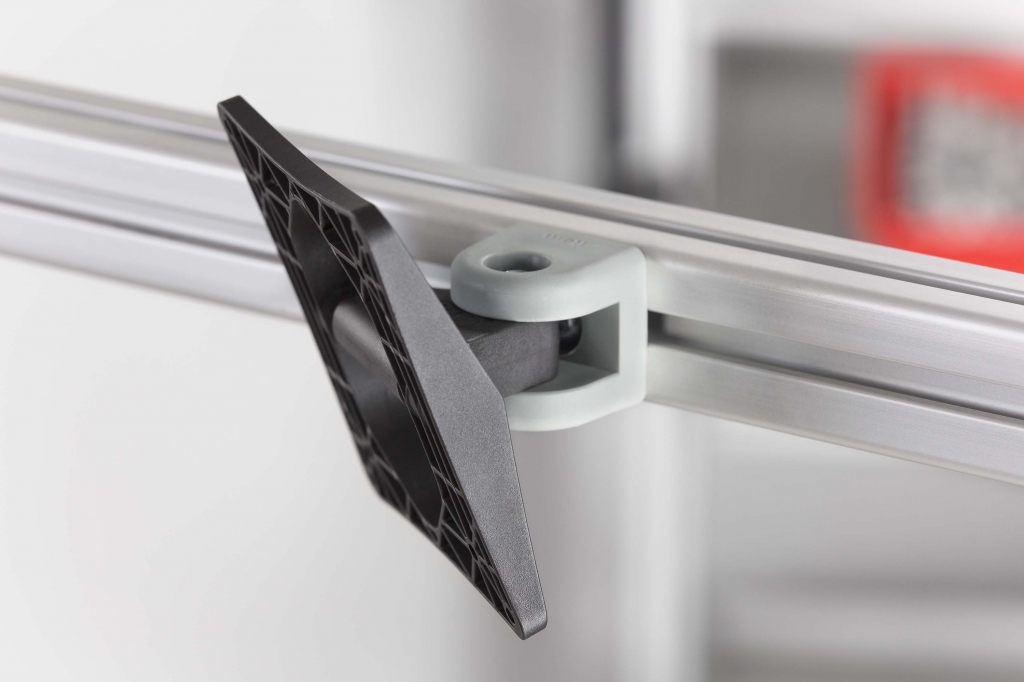

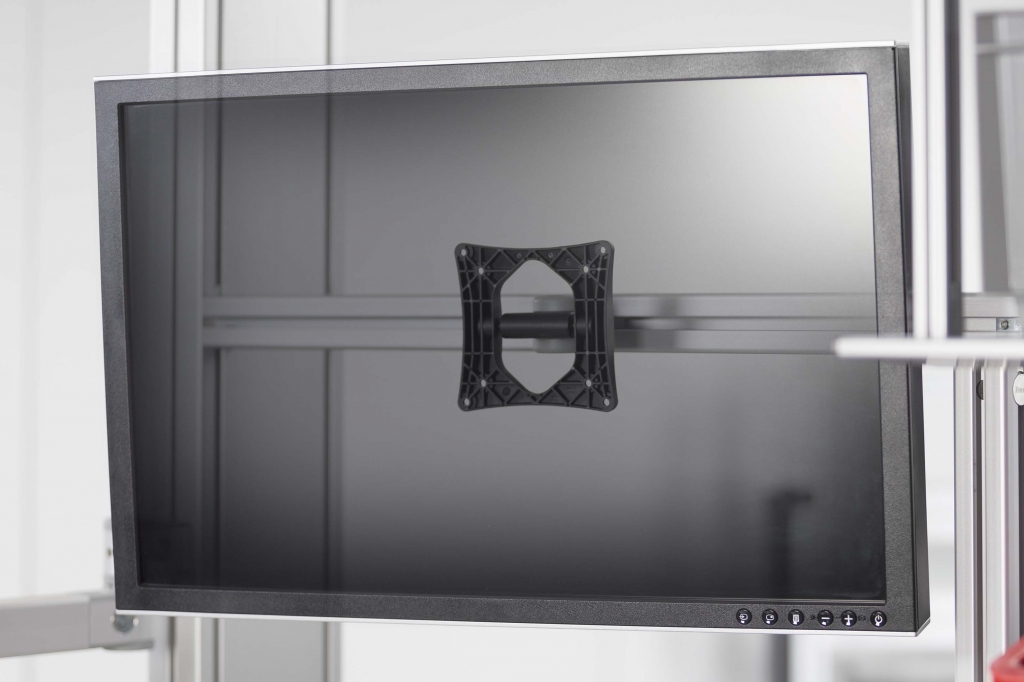

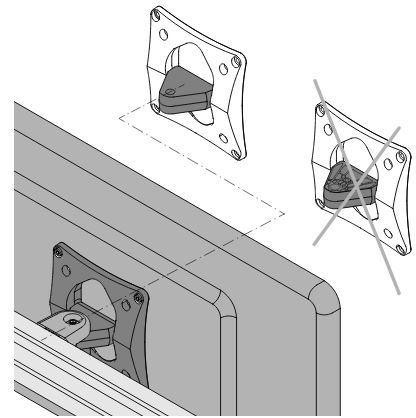

Pivoting Monitor Mounting Joint 8 VESA 75-100 secures flatscreen monitors directly to profile constructions with a Line 8 groove. The Adapter Plate fits displays with a VESA 75 or VESA 100 connection.

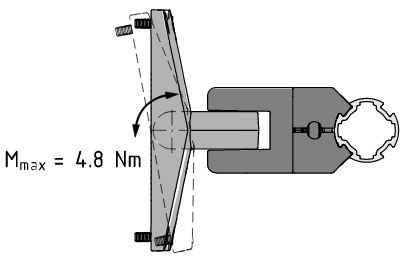

The two friction hinges ensure users can adjust monitors weighing up to 11 kg horizontally and vertically to achieve the ideal viewing angle.

Monitor Mounting Joint 8 VESA 75-100 - 0.0.653.42

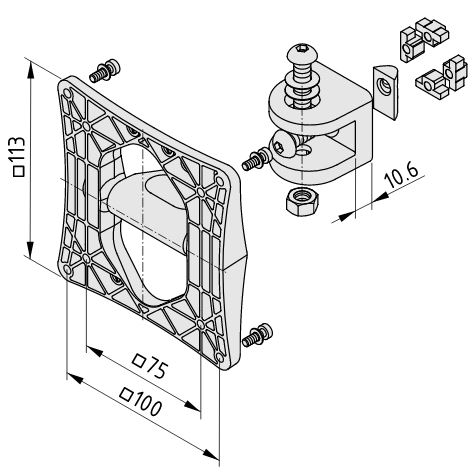

  • Adapter Plate, PA-GF, black
  • 4 Hinge 8 fixing elements
  • Button-Head Screw M8x16, St, bright zinc-plated
  • Button-Head Screw M8x30, St, bright zinc-plated
  • Hexagon nut DIN 934–M8-8
  • T-Slot Nut 8 St M8
  • 2 disc springs DIN 2093-A16
  • 4 Hexagon Socket Head Cap Screws DIN 7984–M4x12, St, bright zinc-plated
  • 4 washers DIN 433–ø4.3, bright zinc-plated

Monitor Mounting Joint 8 VESA 75-100 - 0.0.653.42

Additional information

Weight 0.508 lbs
Line

Work Bench System, Line 8
Delivery unit

1 set
Weight

m = 230 g

More details

The two friction pivot axes ensure users can adjust monitors weighing up to 11 kg horizontally and vertically to achieve the ideal viewing angle.Monitor Mounting Joint 8 VESA 75-100 - 0.0.653.42

Monitor Mounting Joint 8 VESA 75-100 - 0.0.653.42

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0 22041424
eCl@ss 4.1 22041424
eCl@ss 5.0 23250311
eCl@ss 5.1 23250311
eCl@ss 6.0.1 23250311
eCl@ss 7.1 23360290
eCl@ss 8.0 23360290
UNSPSC 7.0 31162502
UNSPSC 9.0 31162502
Customs Tariff Number 84879090

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
