Multi-functional and award-winning design
The item hooks and holders storage system combines form and function!

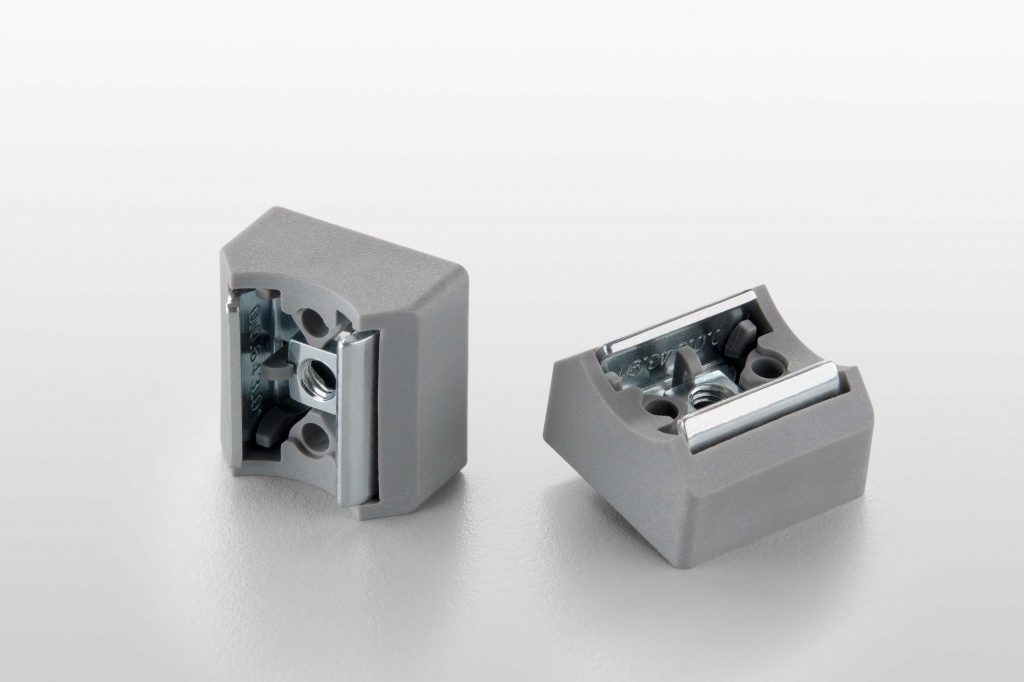

Hook and Holder Adapter D30 ensures users can mount any Hook or Holder to a (Profile) Tube D30 via its central tensioning screw.

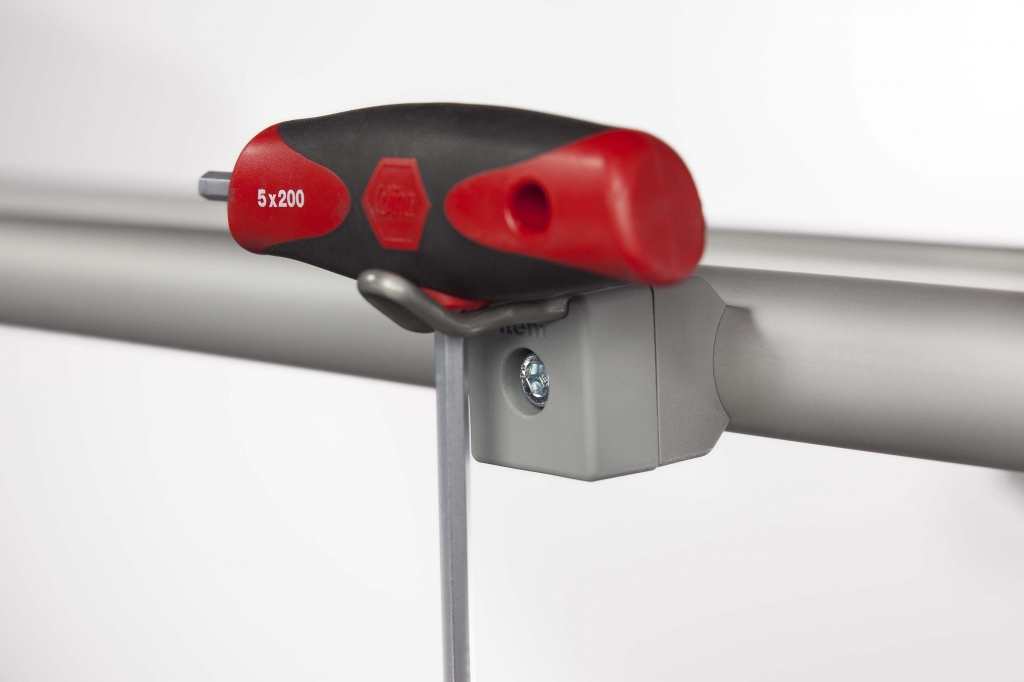

As a result, rapid, easy access to tools etc. is now possible on all constructions built using Profile Tube System D30.
| Weight | 0.12 lbs |
|---|---|
| Line | Line 8 |
| Property | grey |
| Delivery unit | 1 set |
| Weight | m = 26 g |
 |

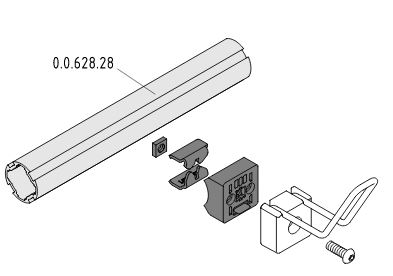

Hook and Holder Adapter D30 is fixed to Profile Tubes D30 without the need for any machining. The retaining plates utilize the groove and hold the Adapter securely. Recommended tightening torque for fastening screw: M = 5 Nm |
 |

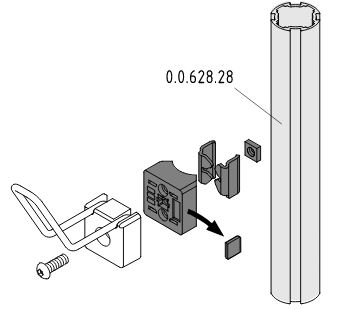

When using the adapter with vertical struts, the removable anti-torsion feature must be taken out prior to assembly. |
 |

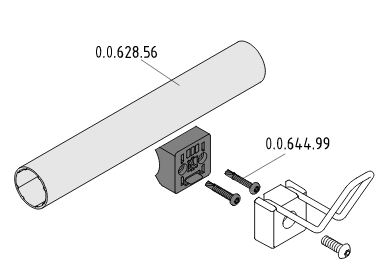

The adapter can also be fastened to Tube D30. Self-tapping screws (0.0.644.99) are used in this case. The retaining plates must be removed from the adapter. |
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 21100201 |
| eCl@ss 4.1 | 21100201 |
| eCl@ss 5.0 | 21100201 |
| eCl@ss 5.1 | 21100201 |
| eCl@ss 6.0.1 | 21100290 |
| eCl@ss 7.1 | 21100290 |
| eCl@ss 8.0 | 21100290 |
| UNSPSC 7.0 | 56111905 |
| UNSPSC 9.0 | 56111905 |
| Customs Tariff Number | 39269097 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
 |
iF product design award This product has been recognised for outstanding design quality by the internationally renowned iF product design award. The judges for the iF product design award believe that product optimisation and the courage to stand out through design will continue to be important in the future. |
 |
German Design Award 2012 – Nominee This product has won the German Design Award. Thanks to the international standing of the German Design Council, this prize is extremely prestigious. The aim of the German Design Award is to discover unique design trends and acknowledge high-quality product design. |
