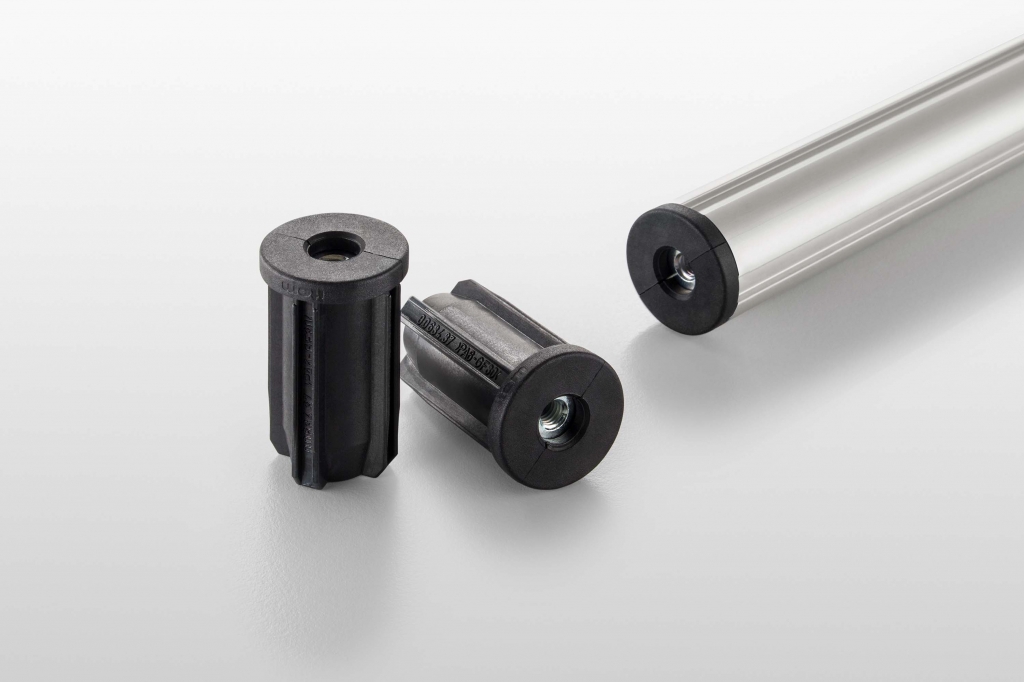

The universal fastener for all parts that are to be fitted to the ends of Tubes or Profile Tubes D30.

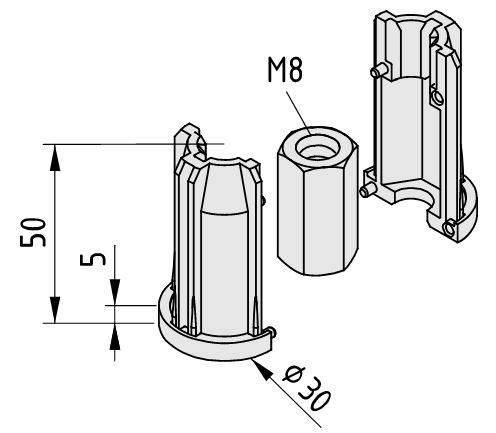

Available in thread sizes M6, M8 and M10 and also with ESD protection.

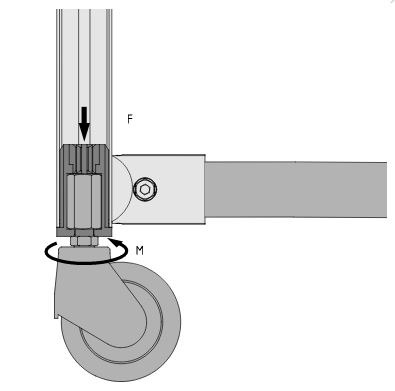

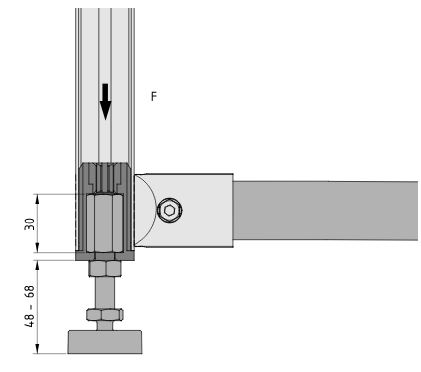

Furthermore, Threaded Inserts offer a simple means of attaching Tubes and Profile Tubes D30 to Panels, Flat Brackets and any other structure.
| Weight | 0.113 lbs |
|---|---|
| Line | Line D30 |
| Property | black similar to RAL 9005 |
| Delivery unit | 1 set |
| Force max | Fmax. = 2000 N |
| Weight | m = 51 g |
| ESD | Yes |
 |
 |
| Fmax = 2000 N | Fmax = 500 N |
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 22041441 |
| eCl@ss 4.1 | 22041441 |
| eCl@ss 5.0 | 37070517 |
| eCl@ss 5.1 | 37070517 |
| eCl@ss 6.0.1 | 23369290 |
| eCl@ss 7.1 | 23369290 |
| eCl@ss 8.0 | 23369290 |
| UNSPSC 7.0 | 31141501 |
| UNSPSC 9.0 | 31141501 |
| Customs Tariff Number | 73181900 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
