Home/Shop/Parts/Floor Elements/Castors/Castor D125 swivel 120×40 ESD
Castor D125 swivel 120x40 ESD - 0.0.633.47

Castor D125 swivel 120×40 ESD

SKU: 0.0.633.47

Categories:
, ,

Description

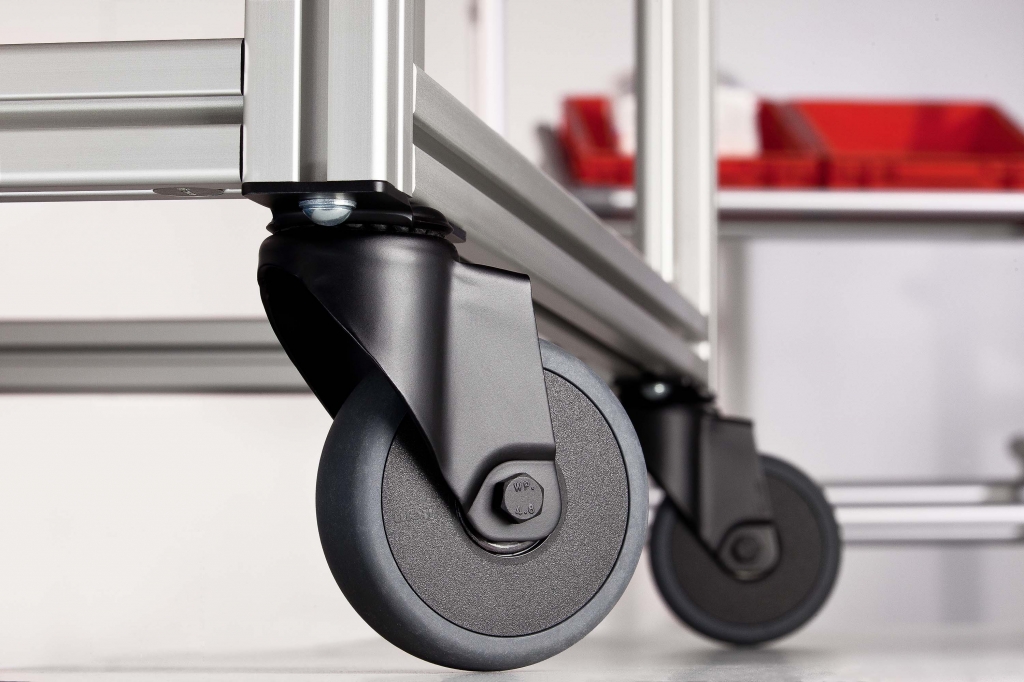

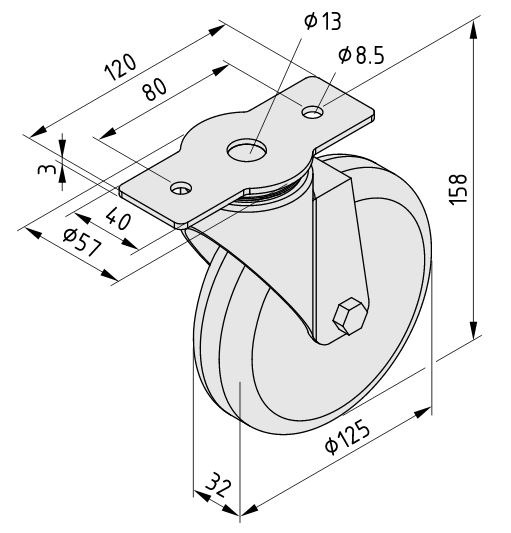

This version of Castor D125 swivel incorporates a connecting plate as standard. These swivel castors can be secured in place without the need for additional base plates or transport plates. The three holes in the modular dimension of 40 mm make it easy to screw the castors to the core bore of Profiles 8 or various profile grooves (particularly recommended for frames built using Line 8 and 10 profiles).
The swivel castor with connecting plate is the same height as a swivel castor with fixing holes. As a result, it can be combined with fixed castors of the same castor size.
All the designs are also available in antistatic/electrostatically dissipative versions for ESD applications.
Castor D125 swivel 120x40 - 0.0.633.46

  • Steel sheet casing bright zinc-plated, black
  • Swivelling axis with sealed ball bearing
  • Wheel axis with sealed ball bearing
  • Dust shield
  • Tyre TPE, track-free, 80 Sh A, grey

Additional information

Weight 1.599 lbs
Line

Line 8, Line 10, Line 12
Delivery unit

1 pce.
Weight

m = 725 g
Load-carrying capacity

100 kg/ castor
ESD

Yes

More details

Recommended screws for fastening to the profile groove:

The specified carrying capacities are maximum values under ideal operating conditions, at walking speed (max. 4 km/h) and over smooth and flat surfaces. If the floor is uneven and weight badly distributed, the load on the castor should be calculated in accordance with the following formula:

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0 22041431
eCl@ss 4.1 22041431
eCl@ss 5.0 23250319
eCl@ss 5.1 23250319
eCl@ss 6.0.1 23370201
eCl@ss 7.1 23370590
eCl@ss 8.0 23370590
UNSPSC 7.0 31162701
UNSPSC 9.0 31162701
Customs Tariff Number 83022000

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
