Description
- Steel sheet casing bright, zinc-plated, black
- Swivelling axis with sealed ball bearing
- Wheel axle with sealed ball bearing
- Dust shield
- Tyre TPE, track-free, 90 Sh A, grey
Additional information
| Weight | 1.705 lbs |
|---|---|
| Line | Line 8, Line 10, Line 12 |
| Delivery unit | 1 pce. |
| Weight | m = 761 g |
| Load-carrying capacity | 80 kg/ castor |
| ESD | Yes |
More Details
 |

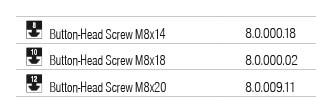

Recommended screws for fastening to the profile groove:
|
 |
Carrying capacity 80 kg/castor The specified carrying capacities are maximum values under ideal operating conditions, at walking speed (max. 4 km/h) and over smooth and flat surfaces. If the floor is uneven and weight badly distributed, the load on the castor should be calculated in accordance with the following formula:
|
Classifications
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 |
22041431
|
| eCl@ss 4.1 |
22041431
|
| eCl@ss 5.0 | 23250319 |
| eCl@ss 5.1 | 23250319 |
| eCl@ss 6.0.1 | 23370201 |
| eCl@ss 7.1 | 23370590 |
| eCl@ss 8.0 | 23370590 |
| UNSPSC 7.0 | 31162701 |
| UNSPSC 9.0 | 31162701 |
| Customs Tariff Number | 83022000 |
Special Features
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
