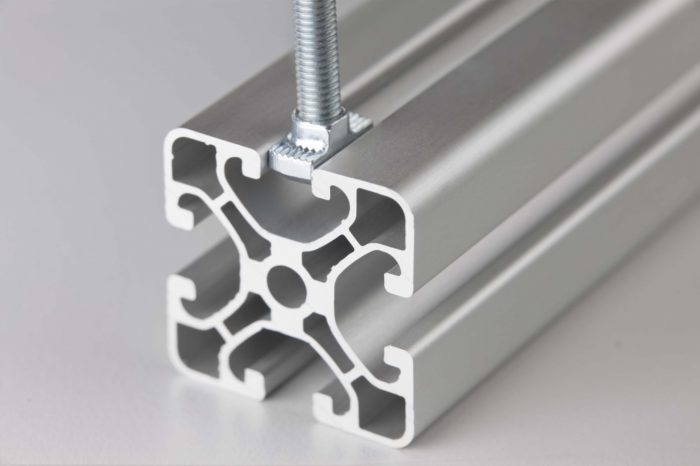

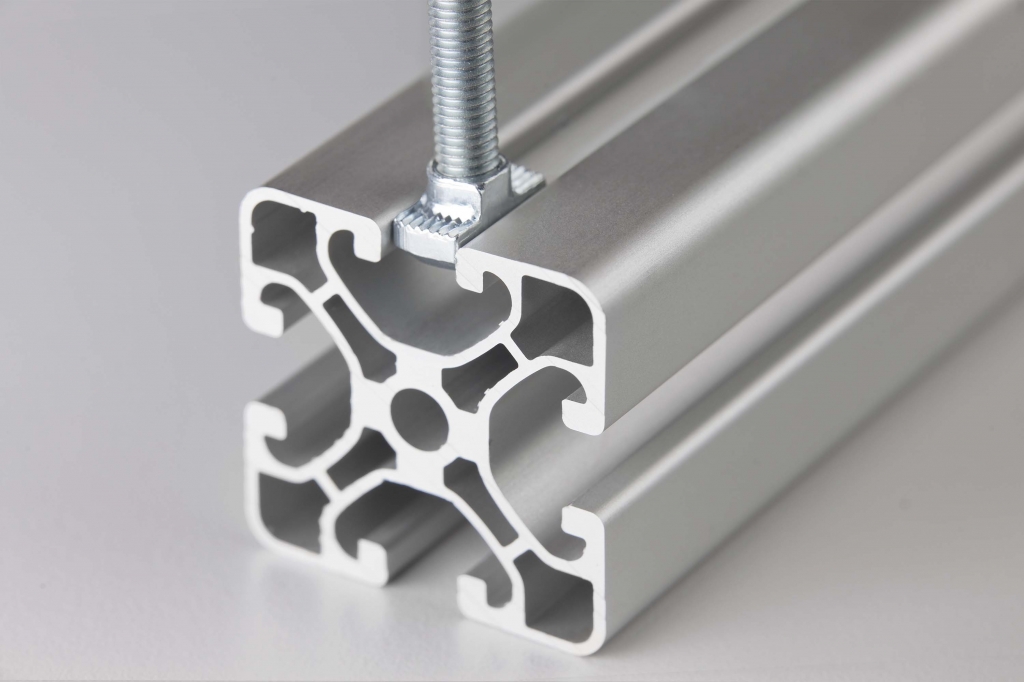

For the fastest possible fastening in the profile groove –
insert a screw that has already been fitted with Hammerhead Nut 8 St. When the screw is tightened, the Hammerhead Nut rotates around 90° and is clamped in the groove.
A safe contact is made by partially destroying the anodized layer, making the fastening ESD dissipative.
Note:
The Hammerhead Nut has a self-locking thread. This generates the drag torque (2 Nm) when tightening the screw.

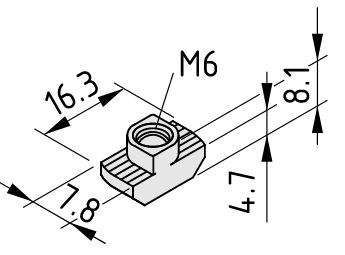

| Weight | 0.009 lbs |
|---|---|
| Line | Line 8 |
| Material | St |
| Property | bright zinc-plated |
| Delivery unit | 1 pce. |
| Thread | M6 |
| Torque | M = 6 Nm |
| Weight | m = 4.2 g |
| ESD | Yes |

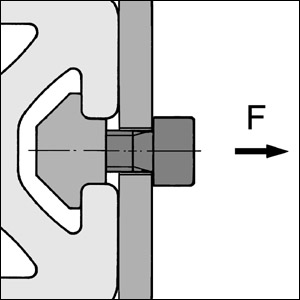

Permissible operating load F = 1,000 N
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 23110806 |
| eCl@ss 4.1 | 23110806 |
| eCl@ss 5.0 | 23110806 |
| eCl@ss 5.1 | 23110806 |
| eCl@ss 6.0.1 | 23110890 |
| eCl@ss 7.1 | 23110890 |
| eCl@ss 8.0 | 23110890 |
| UNSPSC 7.0 | 31161708 |
| UNSPSC 9.0 | 31161708 |
| Customs Tariff Number |
73181692
|
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
