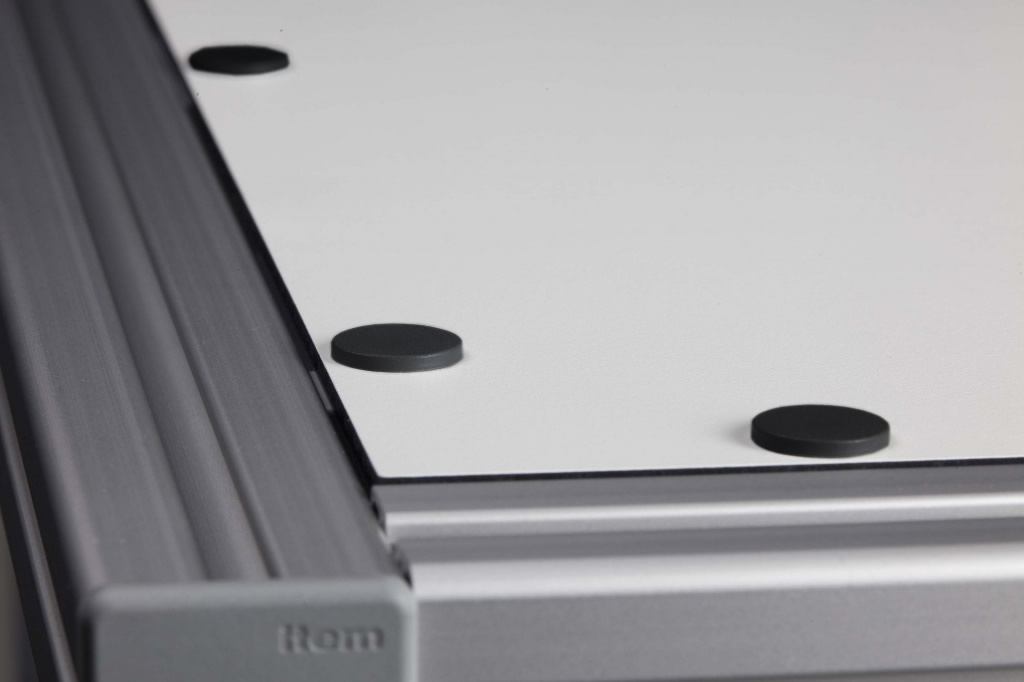

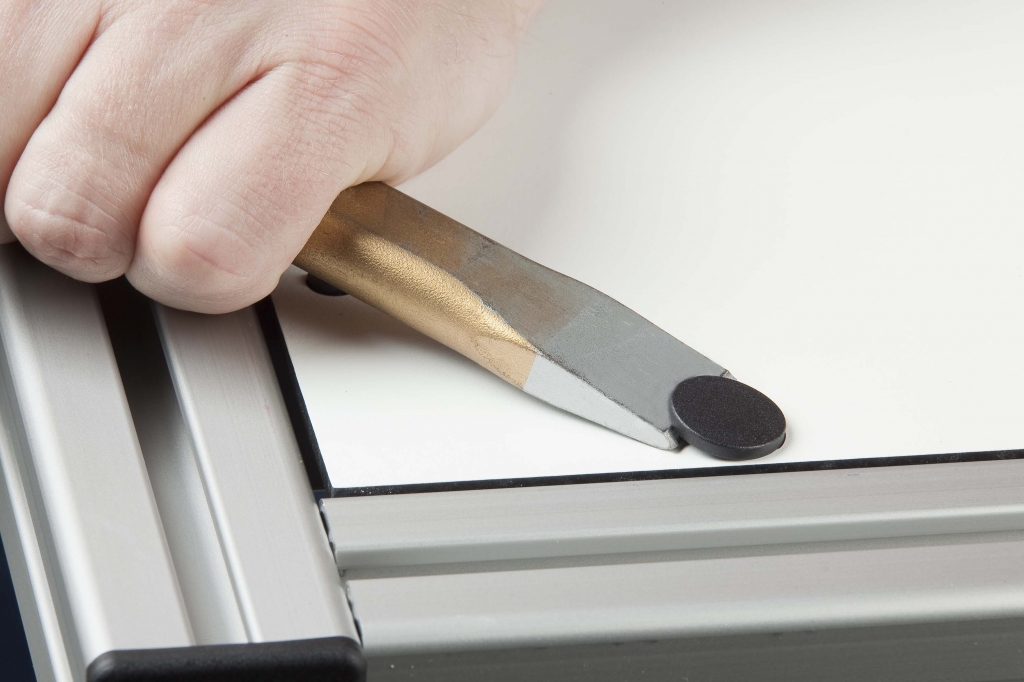

It doesn’t get any faster: push the non-removable pin through the hole in the panel element and into the Quick Multiblock – that’s it, the secure panel fastening cannot be released without destroying it.
Safe and sound: say goodbye to unauthorized access!
| Weight | 0.031 lbs |
|---|---|
| Line | Line 8 |
| Property | black |
| Delivery unit | 1 set |
| Force max | Fmax. = 250 N |
| Weight | m = 14 g |

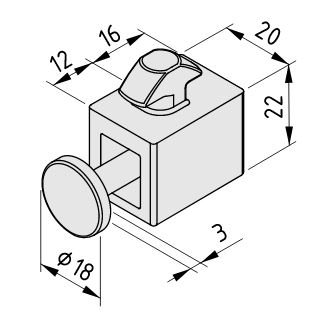

Quick Multiblocks can be used for panel elements of any thickness (up to 8 mm).

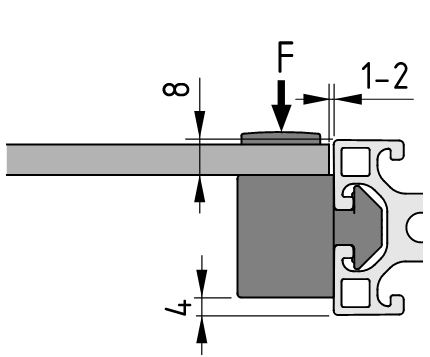

They can be adapted to the thickness of the panel thanks to two different mounting positions (4 or 8 mm from the edge of the profile). The spring clip is to be inserted in the Quick Multiblock according to the direction in which the load is applied: the convex side of the clip must face away from the panel and pin.
Pressing in the pin also tightens the spring.

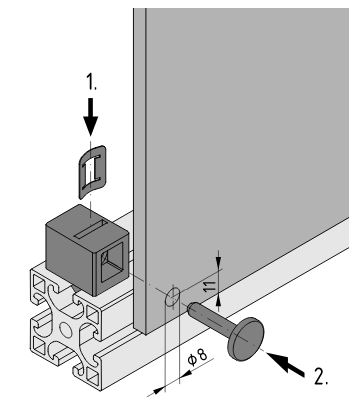

Recommendation for mounting the panel element.
Permissible loading force for Multiblocks 8 is F = 250 N.
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 |
22041426
|
| eCl@ss 4.1 |
22041426
|
| eCl@ss 5.0 | 23250320 |
| eCl@ss 5.1 | 23250320 |
| eCl@ss 6.0.1 | 23250320 |
| eCl@ss 7.1 | 23240190 |
| eCl@ss 8.0 | 23240190 |
| UNSPSC 7.0 | 31101508 |
| UNSPSC 9.0 | 31101508 |
| Customs Tariff Number |
39269097
|
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
