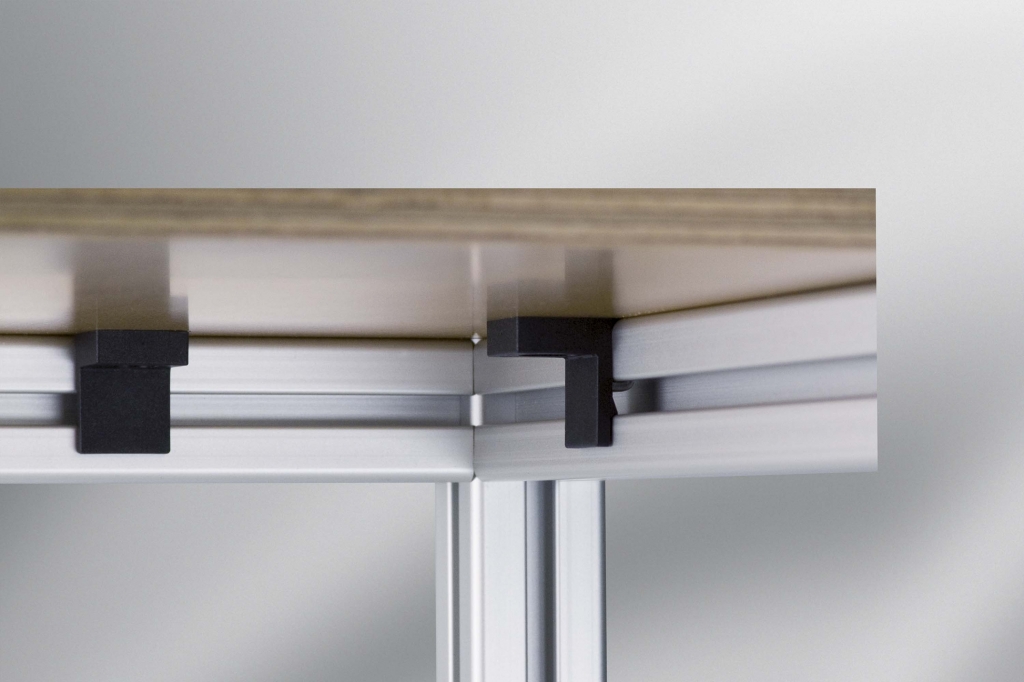

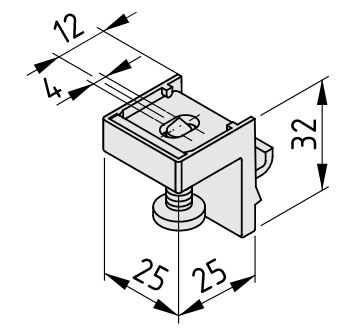

Table-Top Fastening Set 8 is a robust fastening element for table tops made of solid wood or chipboard on profile frame constructions.
Clamping in the profile groove is achieved by tightening the self-tapping screw.
| Weight | 0.053 lbs |
|---|---|
| Line | Work Bench System, Line 8 |
| Delivery unit | 1 set |
| Weight | m = 24 g |
| ESD | Yes |

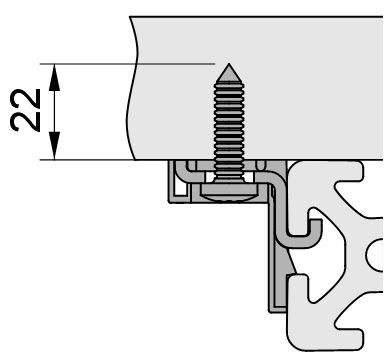

The table top does not need to be processed. The self-tapping screw can be screwed directly into the table top using a screwdriver (TX30 bit). The tolerance is adjusted by means of a slot in Table-Top Fastening Set 8.
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 22041426 |
| eCl@ss 4.1 | 22041426 |
| eCl@ss 5.0 | 23250320 |
| eCl@ss 5.1 | 23250320 |
| eCl@ss 6.0.1 | 23250320 |
| eCl@ss 7.1 | 23240190 |
| eCl@ss 8.0 | 23240190 |
| UNSPSC 7.0 | 31162307 |
| UNSPSC 9.0 | 31162307 |
| Customs Tariff Number | 39269097 |
 |
These components are protected against electrostatic discharge. Static discharge can damage electrical components. ESD-safe components safely dissipate differences in potential. |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
