Door Stop Seal 8 40, grey similar to RAL 7042 - 0.0.617.32

Door Stop Seal 8 40, grey similar to RAL 7042

SKU: 0.0.617.32

Categories:
,

Description

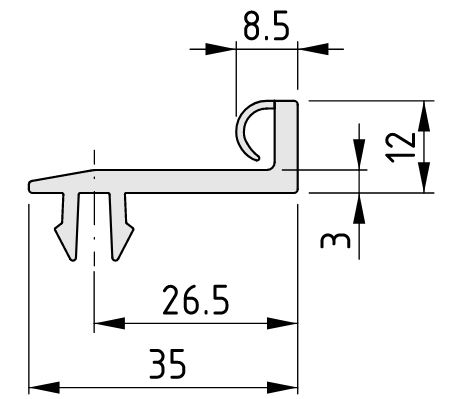

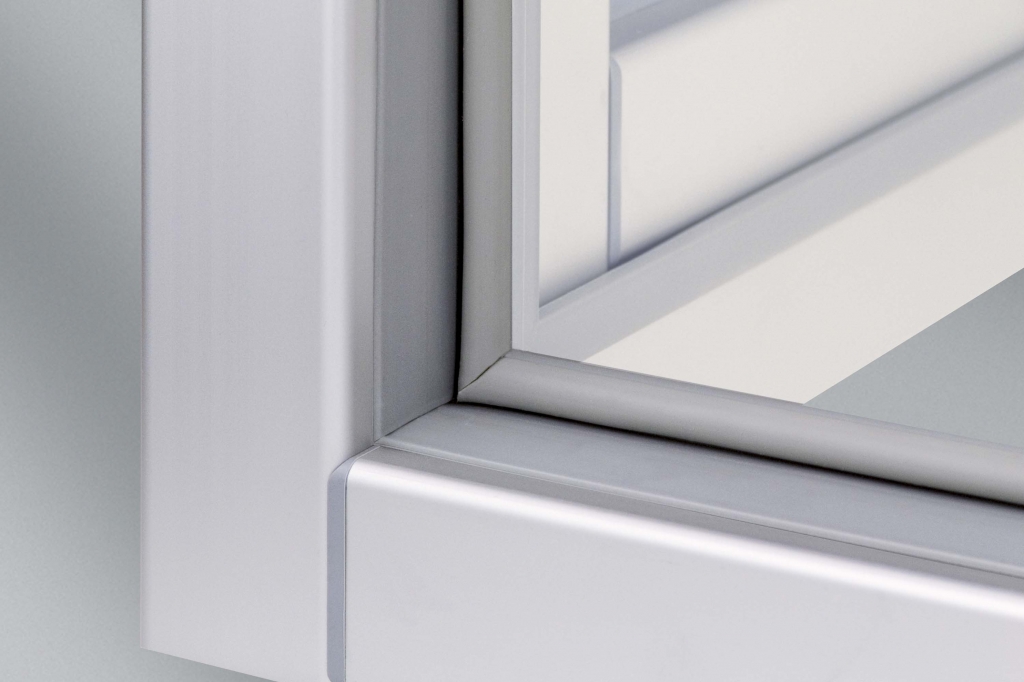

The Door Stop Seals are designed to fit in the door gap, where they function as both stop and continuous elastic seal for swing doors.

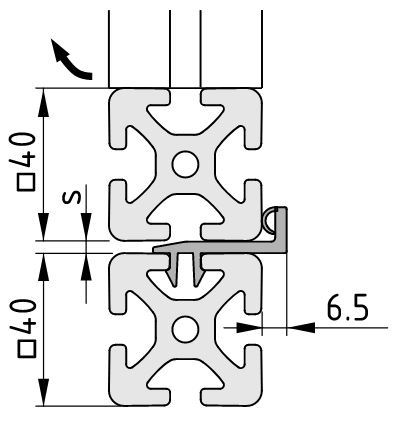

The Door Stop Seal is fitted in the Profile 8 groove facing the door and stops the door leaf flush with the profile’s outer face.
With suitable hinges, the Door Stop Seal may also be used on the hinged side of the door (note gap dimension s); or alternatively the hinges can be reset to eliminate the gap and the Door Stop Seal omitted.Door Stop Seal 8 40, grey similar to RAL 7042 - 0.0.617.32

The Door Stop Seals are used in Line 8 frame structures.
They are suitable for doors made of Profiles 6 (modular dimension 30 mm) or Profiles 8 (modular dimension 40 mm) with a door gap all-round (recommended: s > 4 to 8 mm).Door Stop Seal 8 40, grey similar to RAL 7042 - 0.0.617.32

Additional information

Weight N/A
Dimensions N/A
Line

Line 8
Material

PP/TPE
Property

grey similar to RAL 7042
Delivery unit

cut-off length 2 ft, cut-off length 4 ft, cut-off length 6 ft, cut-off length 8 ft
Weight, spec. Length

m = 142 g/m

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0
22041412
eCl@ss 4.1
22041412
eCl@ss 5.0 23210192
eCl@ss 5.1 23210192
eCl@ss 6.0.1 23210192
eCl@ss 7.1 23270290
eCl@ss 8.0 23270290
UNSPSC 7.0 30102315
UNSPSC 9.0 30102315
Customs Tariff Number
39169050

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
