Profile 6 D30, natural - 0.0.616.46

Profile 6 D30, natural

SKU: 0.0.616.46

Categories:
,

Description

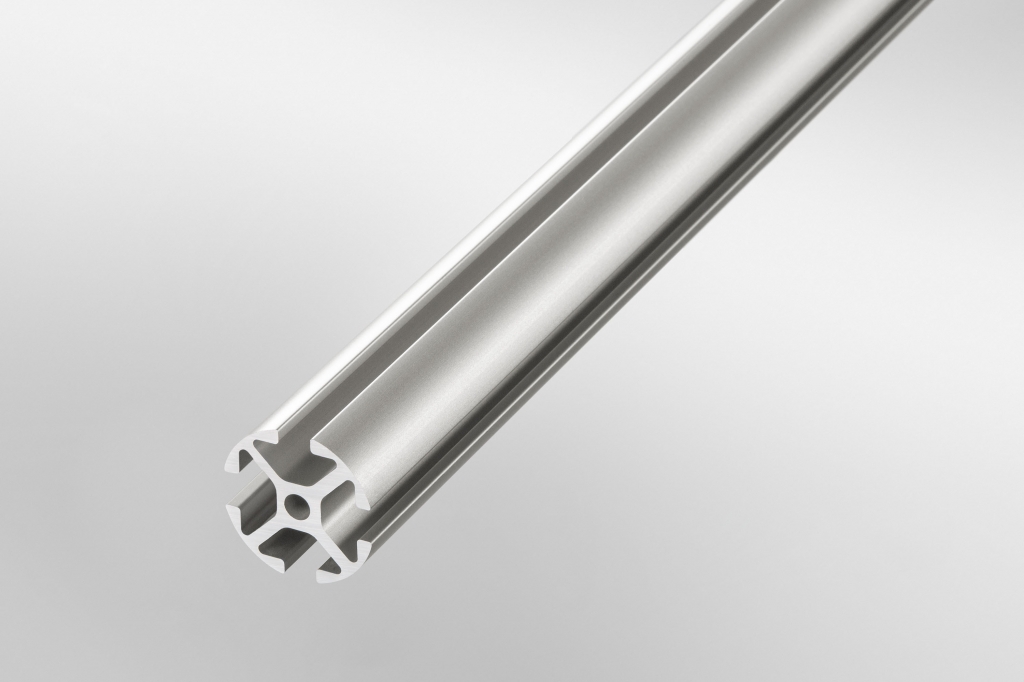

Profiles 6 D30 feature four Line 6 grooves for fastening elements from Line 6 of the MB Building Kit System. These Profiles can be combined with Tube D30 and Profile Tube D30 as and when required. Fastener D30 creates a mechanically locked connection with the profile contour between the grooves.

Profile 6 D30, natural - 0.0.616.46

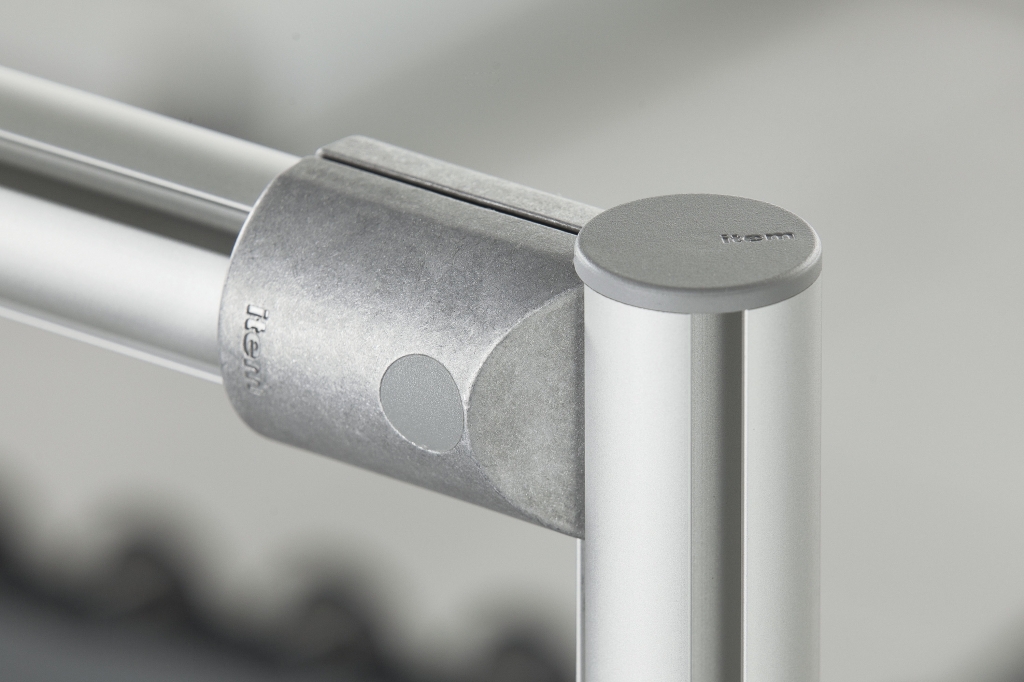

Caps for the ends of Profiles and Tubes are available in two variants – grey and a black, electrostatically dissipative version. This makes it easy to identify the intended application of a Cap.

Profile 6 D30, natural - 0.0.616.46

Additional information

Weight N/A
Dimensions N/A
Line

Line D30, Line 6
Delivery unit

cut-off length 2 ft, cut-off length 4 ft, cut-off length 6 ft, cut-off length 8 ft
Material

Al, anodized
Property

natural

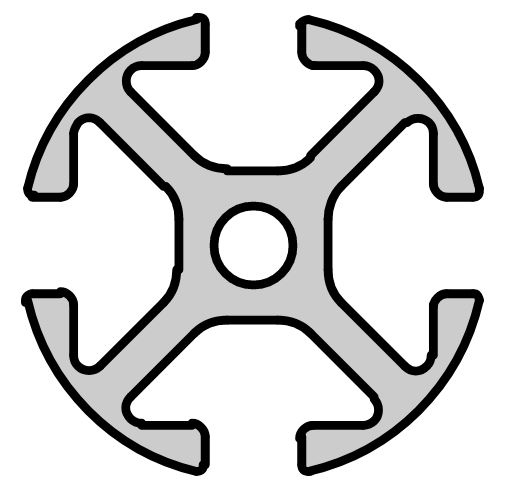

Cross-sectional area

A = 2.79 cm²
Moment of Inertia, x-axis

Ix = 1.69 cm⁴
Moment of Inertia, y-axis

Iy = 1.69 cm⁴
Moment of Inertia, torsional

It = 0.17 cm⁴
Resistance Moment, x-axis

Wx = 1.12 cm³
Resistance Moment, y-axis

Wy = 1.12 cm³
Weight, spec. Length

m = 0.75 kg/m

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0 35020106
eCl@ss 4.1 35020106
eCl@ss 5.0 35020190
eCl@ss 5.1 35020190
eCl@ss 6.0.1 23360101
eCl@ss 7.1 23360101
eCl@ss 8.0 23360101
UNSPSC 7.0 30102306
UNSPSC 9.0 30102306
Customs Tariff Number 76042100
