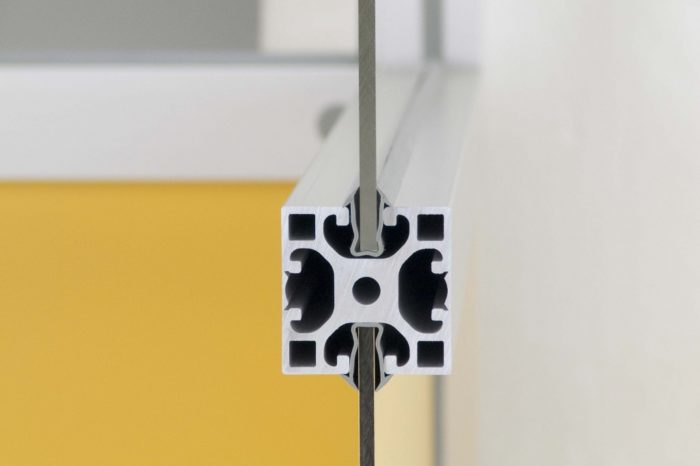

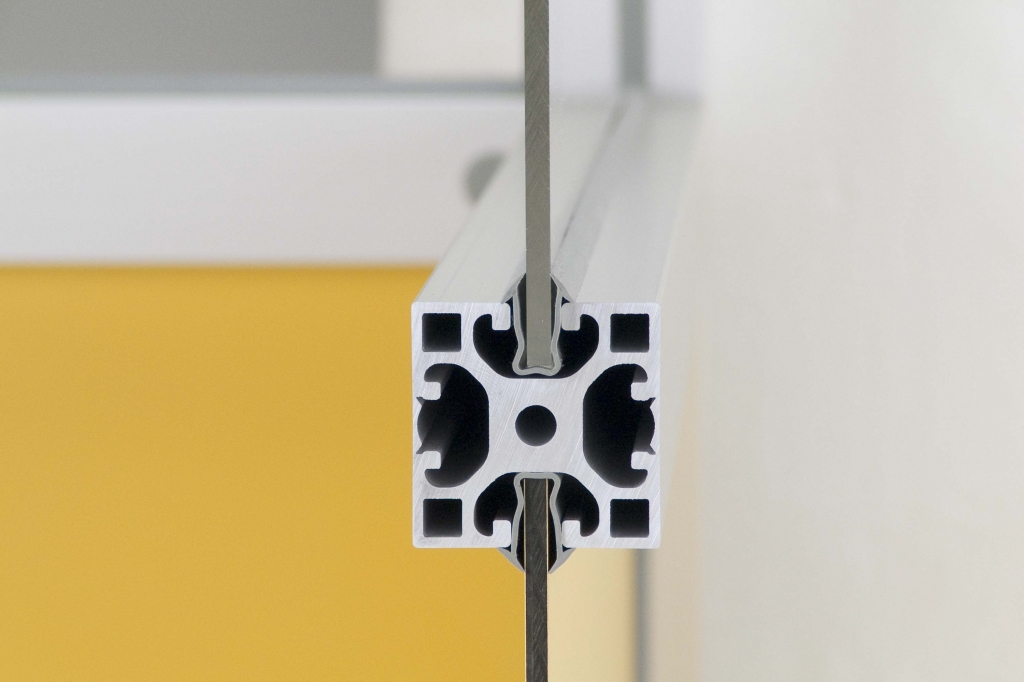

Double-Lip Seal 8 is used for fitting panel elements directly into grooves of Profiles 8.

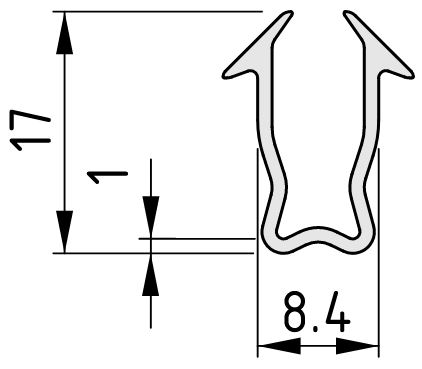

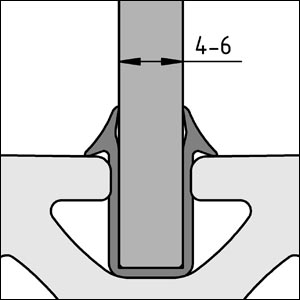

It provides a sealing function and prevents direct contact with the aluminum profile. Double-Lip Seal 8 completely encloses panel elements of thickness 4 to 6 mm in the profile groove.
Double-Lip Seal 8 4-6mm is ideal for all types of panel elements ― including those made of plastic or safety glass.
| Weight | 2.205 lbs |
|---|---|
| Line | Line 8 |
| Material | TPE |
| Property | grey similar to RAL 7042 |
| Delivery unit | 1 roll – length 65.62 ft |
| Weight, spec. Length | m = 50 g/m |
Double-Lip Seal 8 is best installed using soapy water.
It is then slipped onto the panel element and pushed into the profile groove.
The profile frame is closed around the panel element.
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 35030108 |
| eCl@ss 4.1 | 35030108 |
| eCl@ss 5.0 | 35030190 |
| eCl@ss 5.1 | 35030190 |
| eCl@ss 6.0.1 | 35030190 |
| eCl@ss 7.1 | 35030190 |
| eCl@ss 8.0 | 35030190 |
| UNSPSC 7.0 | 30102315 |
| UNSPSC 9.0 | 30102315 |
| Customs Tariff Number | 40082900 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
