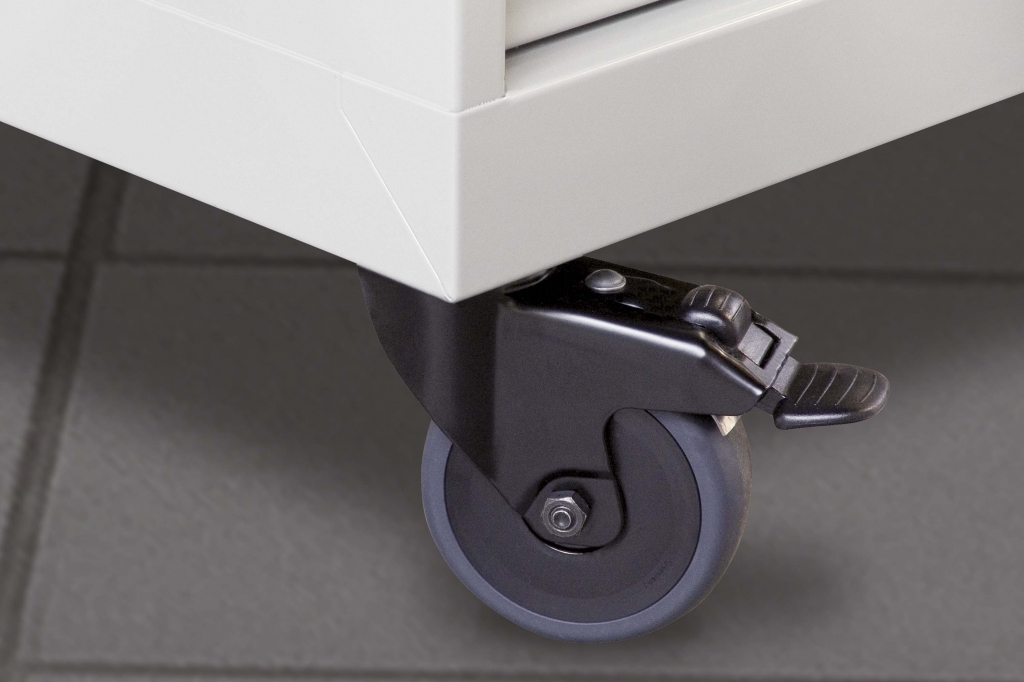

Castors D100 are designed for medium-duty industrial use, e.g. on material trolleys and drawer cabinets.
The Castors have good rolling properties and a high load-carrying capacity and are able to withstand most environmental influences.
| Weight | 1.72 lbs |
|---|---|
| Line | Line 8, Line 5, Line 6, Line 12 |
| Delivery unit | 1 pce. |
| Weight | m = 780 g |
| Load-carrying capacity | 80 kg/ castor |
| ESD | Yes |
|
The castors can be secured in the end faces of all Profile Lines by means of a thread in the core bore (counter boring and tapping may be required) or by using Base Plates.
The castors can be fitted to the groove side of the profiles using appropriate Base Plates (thread lengths may need to be compensated by washers DIN 125). A combination with Floor-Fastening Plate 8 is also possible for specific applications.
|
|
 |
 |
| Castors can also be attached to the groove side of the profiles using suitable Base Plates/Transport Plates (over-long thread lengths may be compensated for using Washers DIN 125 if necessary). In addition, they can be combined with Floor-Fixing Plate 8 (see Comprehensive Catalogue for MB Building Kit System, Section 2.1 Adjustable Feet) for specific applications. | |
 |
Carrying capacity 80 kg/castor The specified carrying capacities are maximum values under ideal operating conditions, at walking speed (max. 4 km/h) and over smooth and flat surfaces. If the floor is uneven and weight badly distributed, the load on the castor should be calculated in accordance with the following formula:
|
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 |
22041431
|
| eCl@ss 4.1 |
22041431
|
| eCl@ss 5.0 | 23250319 |
| eCl@ss 5.1 | 23250319 |
| eCl@ss 6.0.1 | 23370202 |
| eCl@ss 7.1 | 23370590 |
| eCl@ss 8.0 | 23370590 |
| UNSPSC 7.0 | 31162701 |
| UNSPSC 9.0 | 31162701 |
| Customs Tariff Number | 83022000 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
