Home/Shop/Parts/Connections/Right-Angled Connections/Angle Bracket/Angle Bracket 8 160×160 Al M8, white aluminum, similar to RAL 9006
Angle Bracket 8 160x160 Al M8, white aluminum, similar to RAL 9006 - 0.0.602.36

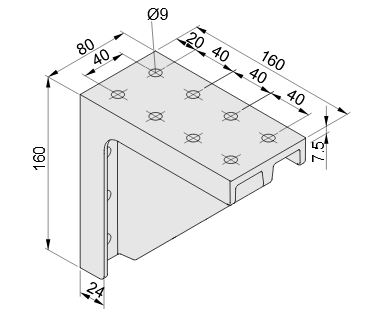

Angle Bracket 8 160×160 Al M8, white aluminum, similar to RAL 9006

SKU: 0.0.602.36

Categories:
, , ,

Description

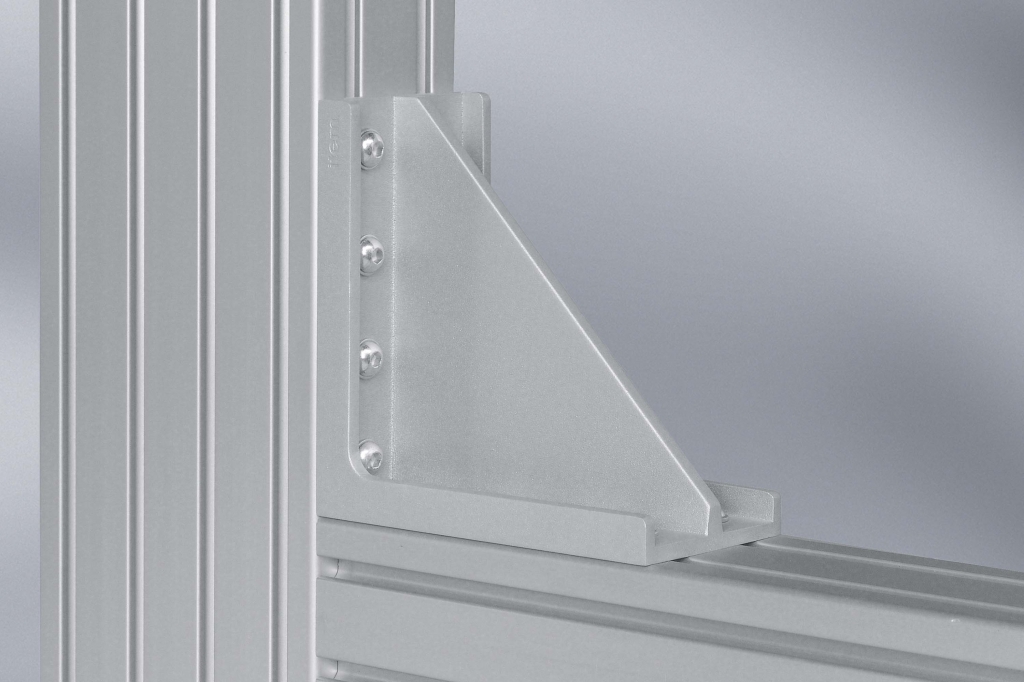

Angle Bracket 8 160×160 Al is a heavy-duty fastening element for power-lock, non-machined interconnection of large Profiles 8. It can also be used for screwing profiles to floors and walls and for fastening heavy parts that are not part of the MB Building Kit System. Angle Bracket 8 160×160 Al M8 is fastened to the profile with the Fastening Set. Up to 4 Fastening Sets per Angle Bracket are required depending on the combination of profiles used.
Angle Bracket 8 160x160 Al M8, white aluminum, similar to RAL 9006 - 0.0.602.36
When used as a reinforcing element at points where large profiles are joined, several Angle Brackets may be used in parallel. N.B.: The maximum permissible tensile load-carrying capacity of the profile groove should not be exceeded!

Additional information

Weight 2.426 lbs
Line

Line 8
Material

Die-cast Al
Property

white aluminum, similar to RAL 9006
Delivery unit

1 pce.
Weight

m = 1.1 kg

Load-carrying capacity

F < 8,000 N ∧ F x l < 800 NmAngle Bracket
The load-carrying capacity is to be checked based on both conditions.

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0 22041424
eCl@ss 4.1 22041424
eCl@ss 5.0 23250311
eCl@ss 5.1 23250311
eCl@ss 6.0.1 23250311
eCl@ss 7.1 23360290
eCl@ss 8.0 23360290
UNSPSC 7.0 31162502
UNSPSC 9.0 31162502
Customs Tariff Number 76169910

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
