Drilling into profiles for Mitre-Fastening Sets 8 should be performed using special drilling jigs.

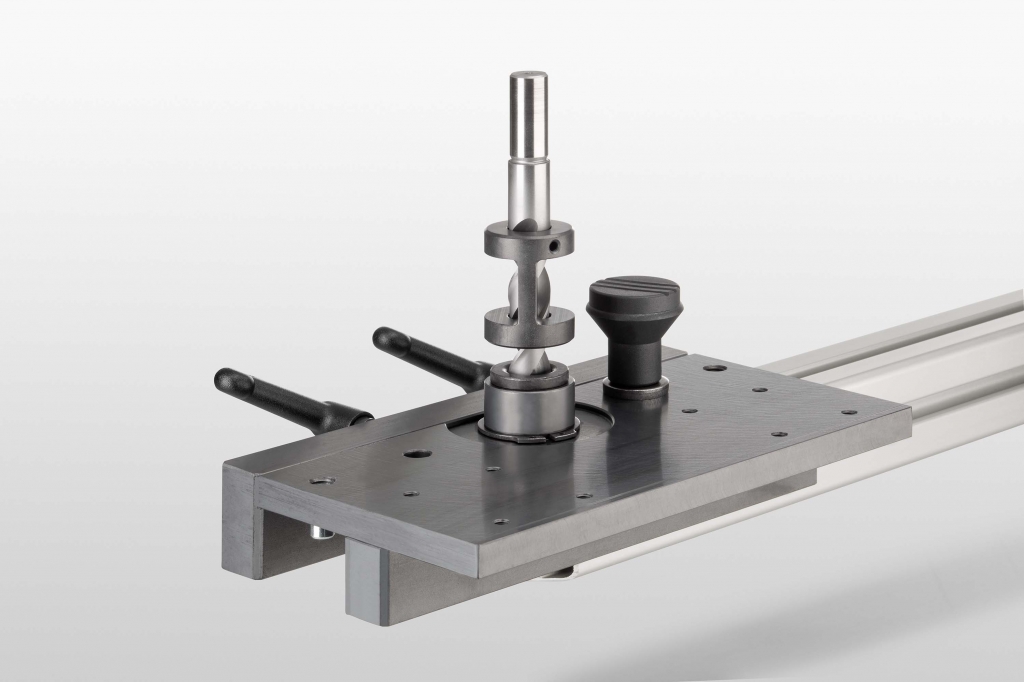

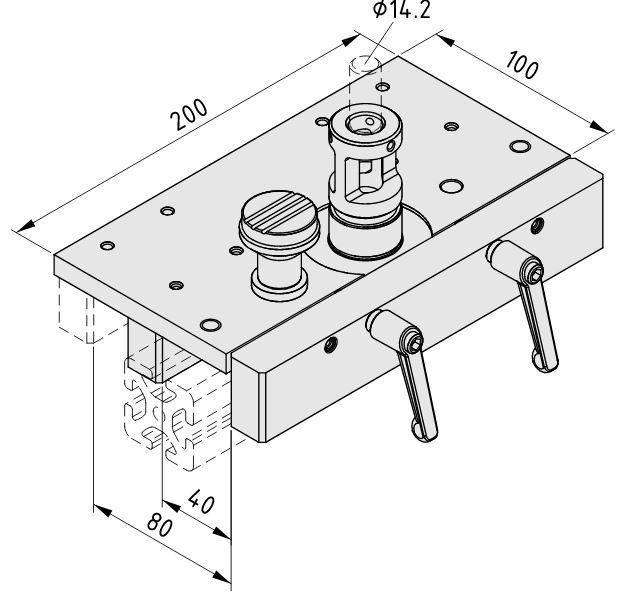

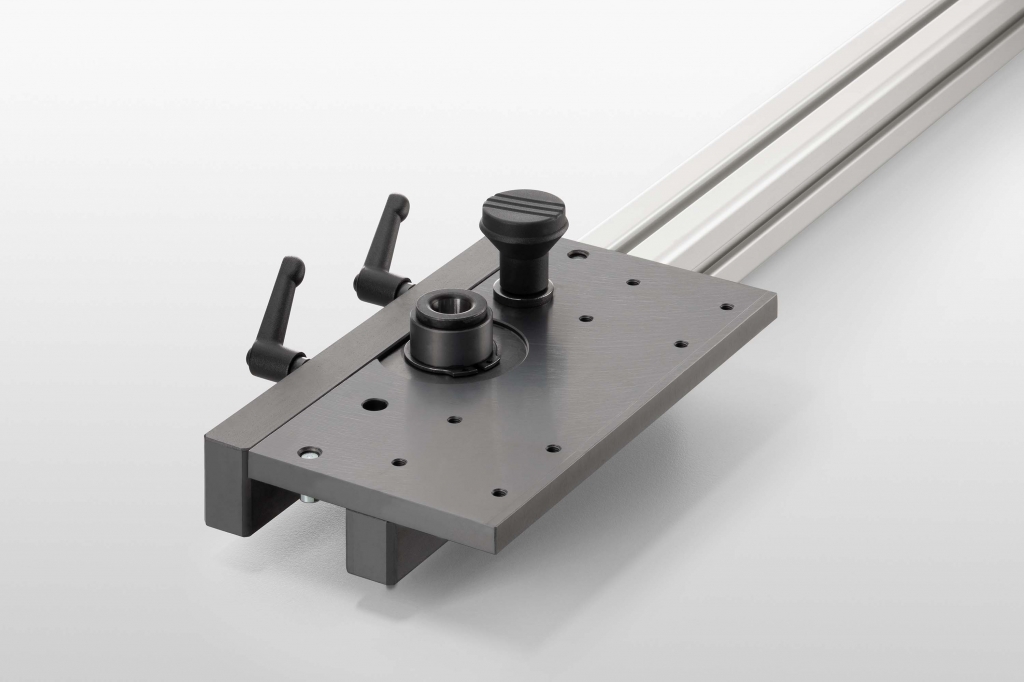

Drilling Jig 8 D14.2 is positioned onto the mitred profile and ensures – irrespective of the cut-off angle – that the 14.2 mm dia. drill hole can be drilled at the right distance from the end face of the profile. The depth limit stop is positioned on the shaft of Step Drill D14.2 to ensure the correct drill depth (26.2 mm).
| Weight | 4.079 lbs |
|---|---|
| Line | Line 8 |
| Material | St, black |
| Delivery unit | 1 pce. |
| Weight | m = 1.85 kg |
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 21030102 |
| eCl@ss 4.1 | 21030102 |
| eCl@ss 5.0 | 21170203 |
| eCl@ss 5.1 | 21170203 |
| eCl@ss 6.0.1 | 21170203 |
| eCl@ss 7.1 | 21170203 |
| eCl@ss 8.0 | 21170203 |
| UNSPSC 7.0 | 27112825 |
| UNSPSC 9.0 | 27112825 |
| Customs Tariff Number | 73269098 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
