Castor D125 swivel with double-brake, heavy-duty - 0.0.488.39
Castor D125 swivel with double-brake, heavy-duty - 0.0.488.39

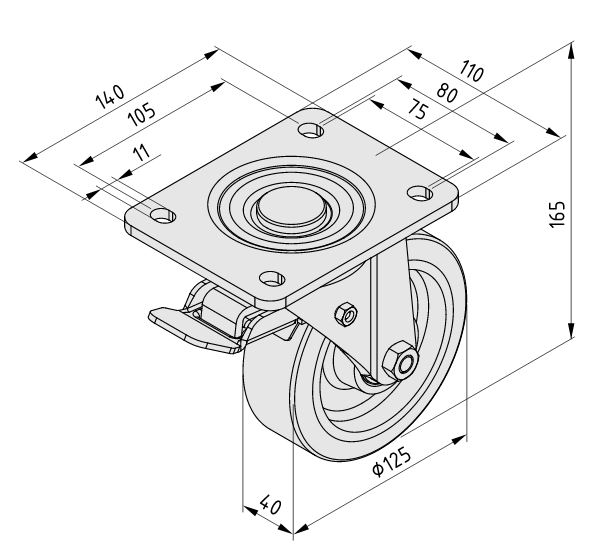

Castor D125 swivel with double-brake, heavy-duty

SKU: 0.0.488.39

Categories:
, ,

Description

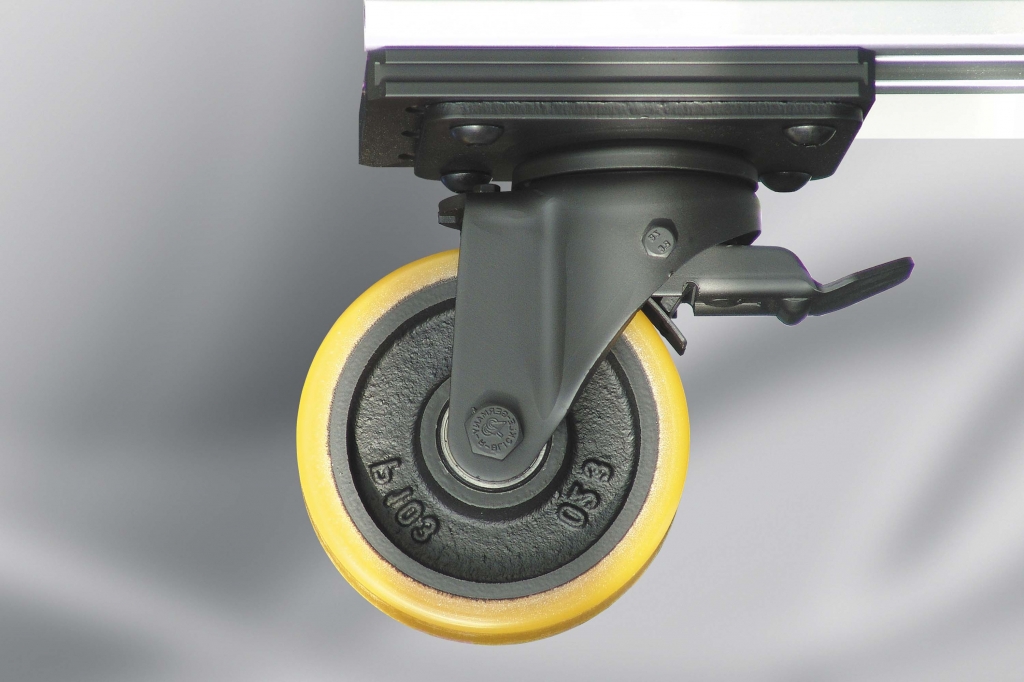

Heavy-duty castors for high loads
Due to its special design and the materials used Castor Line D125 heavy duty can accommodate high wheel loads. The permissible load on one D125 Castor heavy duty is 4,500 N.
Resistant to external influences
To maximise ease of running, the cast-iron castors are fitted with sealed ball bearings and coated with a layer of cast polyurethane. This is resistant to a whole range of chemicals and is insensitive to cracks and cuts.
Various versions
Castor Line D125 heavy duty consists of the following versions: Swivel Castor, Swivel Castor with double-brake (brake for wheel and swivelling axis) and Fixed Castor.
Universal adapter plates
The Castor Adapter Plates have the necessary through-holes in the modular dimensions of Line 8 and 12 Profiles. They also have four fastening threads M10 for castor back plates in bore dimensions standardised to DIN 8458 – size 3.

Castor D125 swivel with double-brake, heavy-duty - 0.0.488.39

  • Sheet-metal casing, bright zinc-plated, black
  • Swivelling axis with ball bearing and rotating track seal
  • Wheel axle with ball bearing
  • Tyres PU, 92 Sh A, yellow

Additional information

Weight 7.715 lbs
Line

Line 8, Line 12
Delivery unit

1 pce.
Weight

m = 3.5 kg
Load-carrying capacity

450 kg/Castor at max. 4 km/h
ESD

No

More Details

The specified carrying capacities are maximum values under ideal operating conditions, at walking speed (max. 4 km/h) and over smooth and flat surfaces.

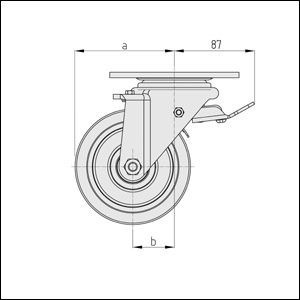

If the floor is uneven and weight badly distributed, the load per castor should be calculated in accordance with the following formula:
a – radius of swivel – 108 mm
b – offsett – 45 mm

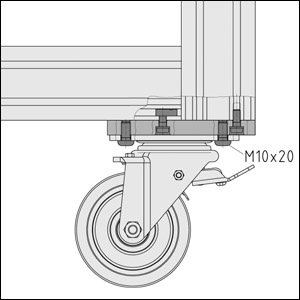

The stable back-plate with standard mounting bores provides a reliable means of securing the castors to profile frames using special Castor Adapter Plates.
It is screwed in the prepared threads by means of four M10x20 screws per plate.
The Castor Adapter Plates are secured in the core bore using the enclosed Hexagon Socket Head Cap Screws or in the profile groove using T-Slot Nuts for the relevant profile line.
Carrying capacity 450 kg/castor

If the floor is uneven or the weight is distributed unevenly, the load is calculated separately for each Castor using the following formula:

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0
22041431
eCl@ss 4.1
22041431
eCl@ss 5.0 23250319
eCl@ss 5.1 23250319
eCl@ss 6.0.1 23370201
eCl@ss 7.1 23370590
eCl@ss 8.0 23370590
UNSPSC 7.0 31162701
UNSPSC 9.0 31162701
Customs Tariff Number 83022000

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
