Description

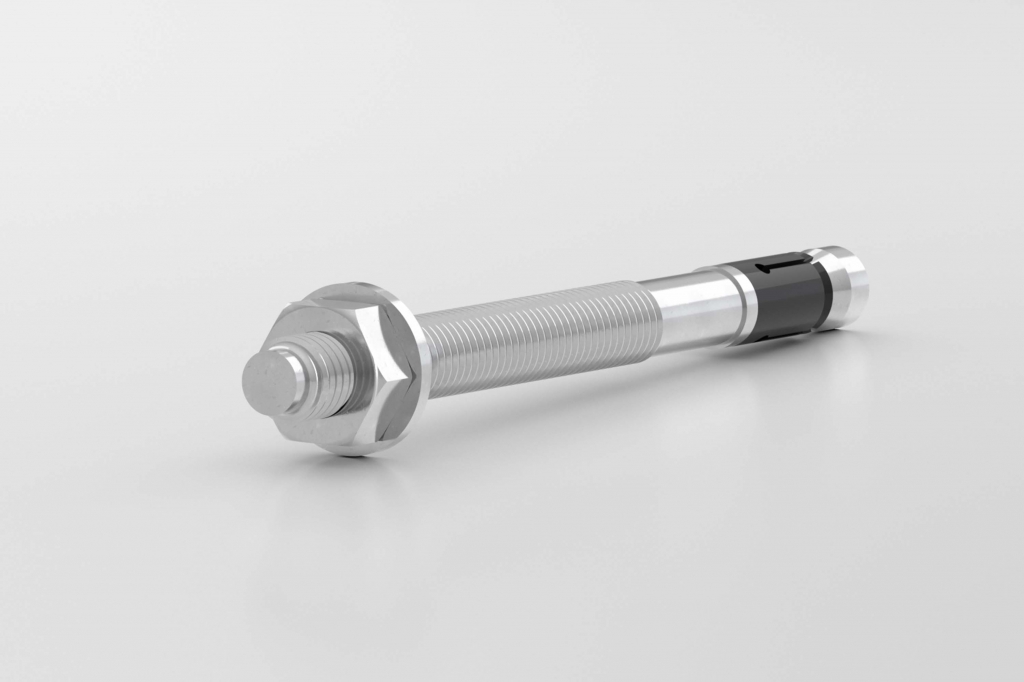

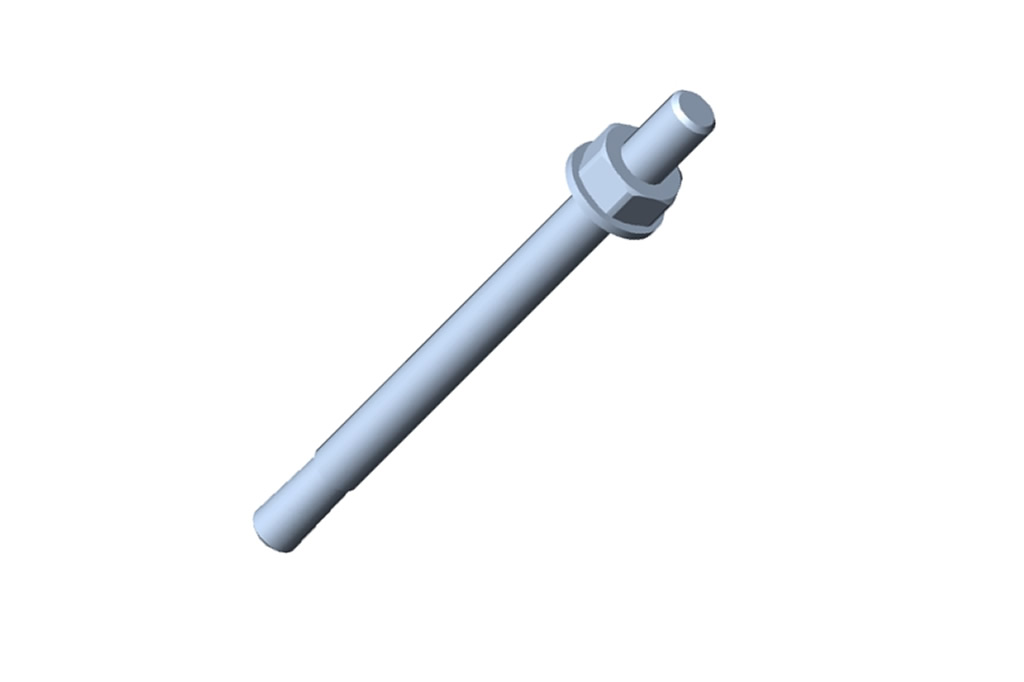

- Floor anchor M10x135
- Nut, similar to DIN 934-M10, St, bright zinc-plated
- Washer, similar to ISO 7089-M10, St, bright zinc-plated
Additional information
| Weight | 0.181 lbs |
|---|---|
| Material | St |
| Property | bright zinc-plated |
| Delivery unit | 1 pce. |
| Weight | m = 82 g |
| Thread | M10 |
| Force max | Fmax. = 3570 N |
| ESD | Yes |
| Torque | M = 45 Nm |
More details

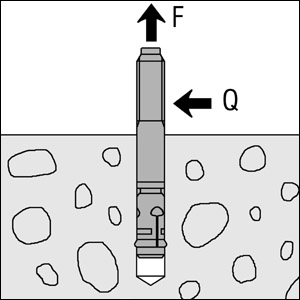

| Floor-Fastening Set | Fmax | Qmax |
| M8 x 95 | 1,650 N | 4,250 N |
| M10x135 | 3,570 N | 9,520 N |
| M12x150 | 4,760 N | 14,290 N |
Classifications
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 23150101 |
| eCl@ss 4.1 | 23150101 |
| eCl@ss 5.0 | 23152101 |
| eCl@ss 5.1 | 23152101 |
| eCl@ss 6.0.1 | 23152101 |
| eCl@ss 7.1 | 23159090 |
| eCl@ss 8.0 | 23159090 |
| UNSPSC 7.0 | 31162104 |
| UNSPSC 9.0 | 31162104 |
| Customs Tariff Number |
73181558
|
Special Features
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
