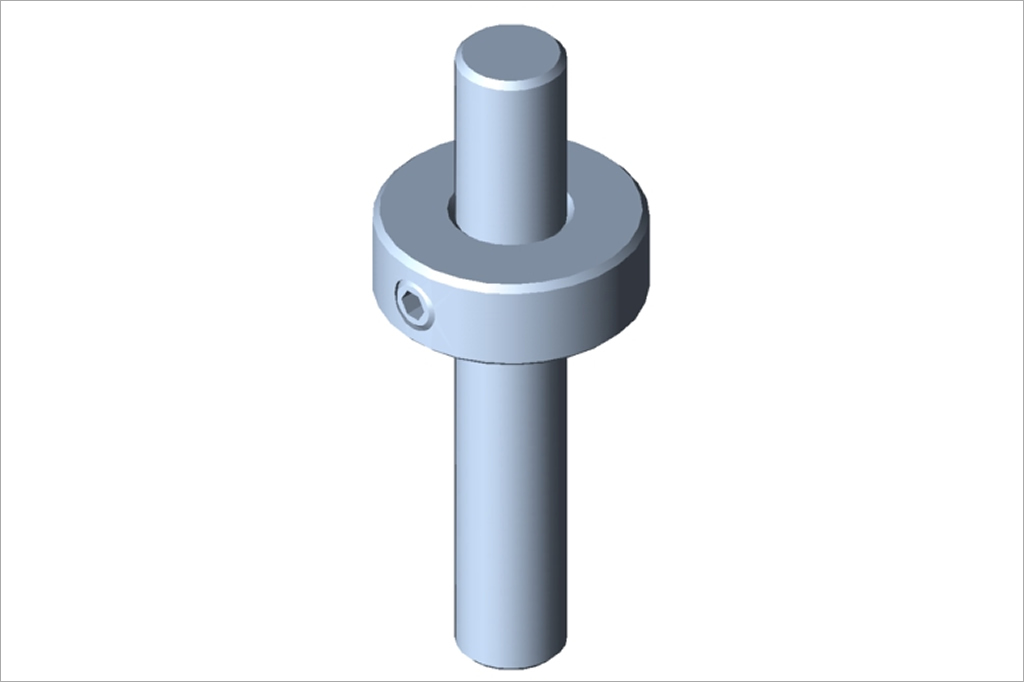

Description
.
- Pin, St, stainless
- Locking ring, St, bright zinc-plated
- Grub screw DIN 916-M4x4, St, bright zinc-plated

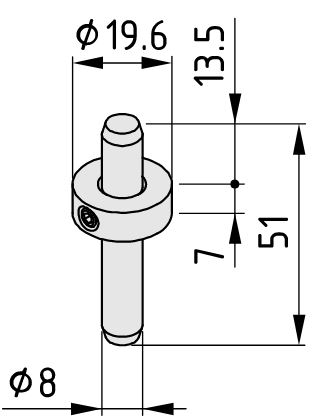

- L = 51 mm
Additional information
| Weight | 0.071 lbs |
|---|---|
| Line | Line 8 |
| Delivery unit | 1 set |
| Weight | m = 32 g |
| ESD | Yes |
Installation
 |

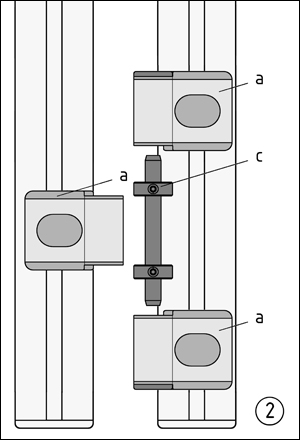

The required hinge can be assembled easily from the following sets: a = Hinge Leaf 8 40×40 b = Hinge Pin D8x51 |
 |

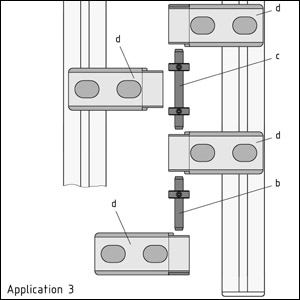

Various Hinge Leaves and Hinge Pins can be combined to construct hinge strips. For example: Constructing a hinge strip with Hinge Leaves 8 80×40. The required hinge can be assembled easily from the following sets: b = Hinge Pin D8x51 c = Hinge Pin D8x76 d = Hinge Leaf 8 80×40 |
Classifications
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 22041403 |
| eCl@ss 4.1 | 22041403 |
| eCl@ss 5.0 | 23250304 |
| eCl@ss 5.1 | 23250304 |
| eCl@ss 6.0.1 | 23250304 |
| eCl@ss 7.1 | 23250304 |
| eCl@ss 8.0 | 23250304 |
| UNSPSC 7.0 | 31162403 |
| UNSPSC 9.0 | 31162403 |
| Customs Tariff Number |
73182100
|
Special Features
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
