Description
The values apply for an individual profile section and not for a pair.

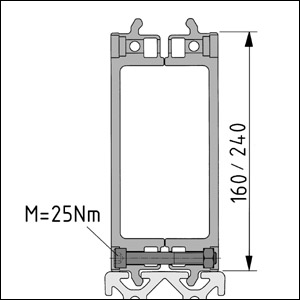

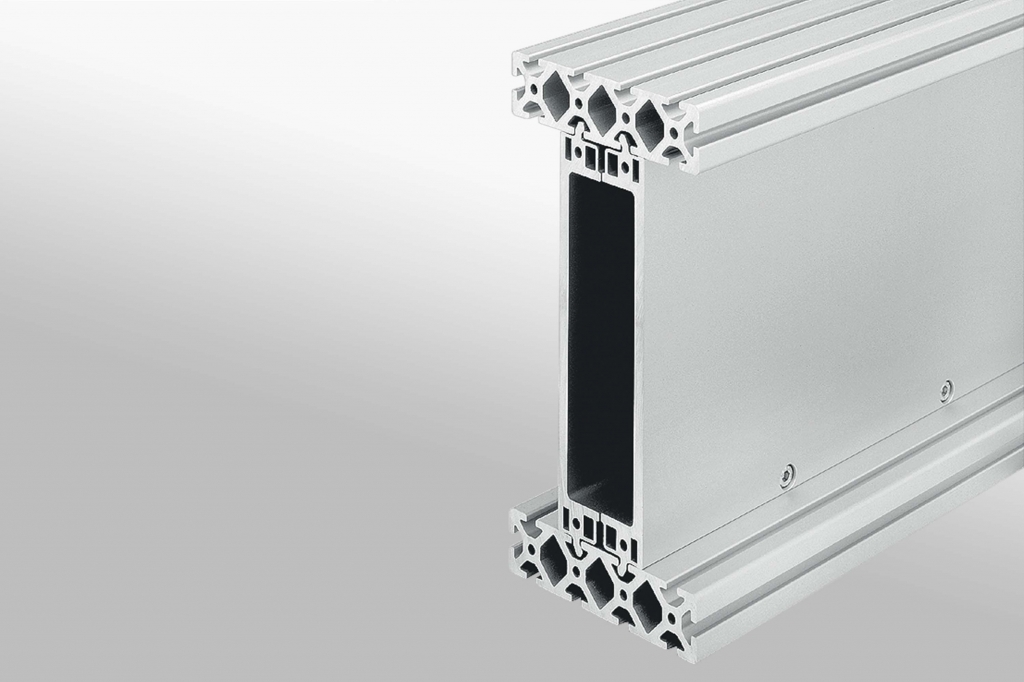

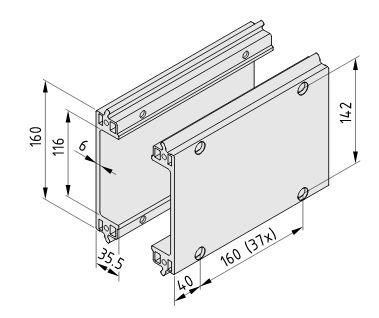

Connection Profiles 8 160 and 8 240 are supplied in pairs and machined with bores for the DIN 912-M8x60 fastening screws and DIN 934-M8 Hexagon Nuts.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Line | Line 8 |
| Material | Al, anodized |
| Property | natural |
| Delivery unit | cut-off, length 2 ft, 1 pair, cut-off, length 4 ft, 1 pair, cut-off, length 6 ft, 1 pair, cut-off, length 8 ft, 1 pair |
| Cross-sectional area | A = 17.8 cm² |
| Moment of Inertia, x-axis | Ix = 618.43 cm⁴ |
| Moment of Inertia, y-axis | Iy = 17.51 cm⁴ |
| Moment of Inertia, torsional | It = 10.34 cm⁴ |
| Resistance Moment, x-axis | Wx = 69.1 cm³ |
| Resistance Moment, y-axis | Wy = 7.14 cm³ |
| Weight, spec. Length | m = 4.76 kg/m |
Classifications
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 22041424 |
| eCl@ss 4.1 | 22041424 |
| eCl@ss 5.0 | 23250311 |
| eCl@ss 5.1 | 23250311 |
| eCl@ss 6.0.1 | 23250311 |
| eCl@ss 7.1 | 23251090 |
| eCl@ss 8.0 | 23251090 |
| UNSPSC 7.0 | 30102306 |
| UNSPSC 9.0 | 30102306 |
| Customs Tariff Number | 76042990 |
Special Features
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
