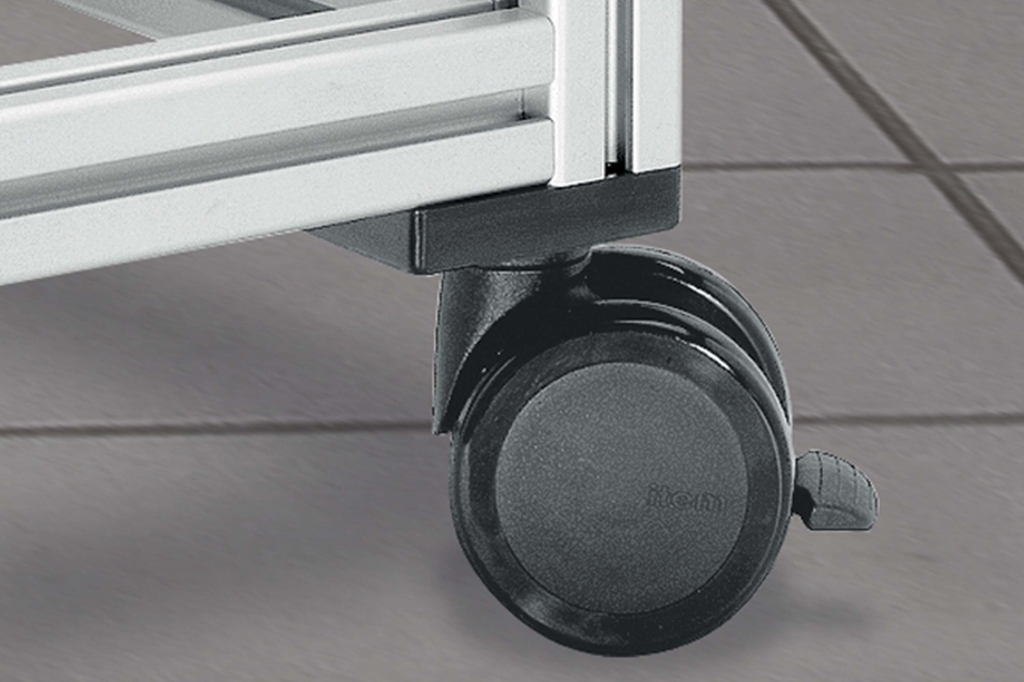

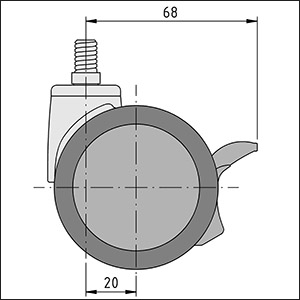

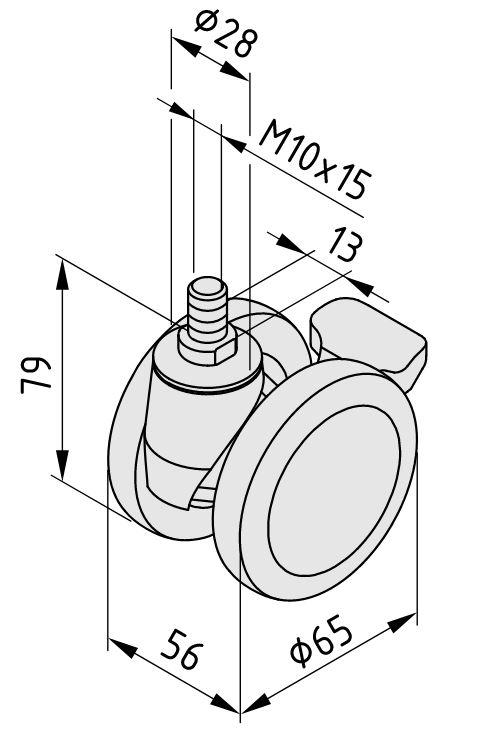

Castor line D65 (castor diameter 65 mm) consists of the variants:
Swivel Castor and Swivel Castor with brake (brake for wheel axle).
| Weight | 0.393 lbs |
|---|---|
| Line | Line 8, Line 5, Line 6 |
| Delivery unit | 1 pce. |
| Weight | m = 177 g |
| Load-carrying capacity | 50 kg / castor |

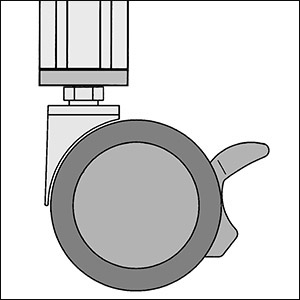

The castors can be secured in the end faces of all Profile Lines by means of a thread in the core bore (counter boring and tapping may be required) or by using Base Plates.

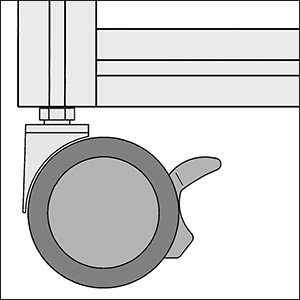

The castors can be fitted to the groove side of the profiles using appropriate Base Plates (thread lengths may need to be compensated by washers DIN 125). A combination with Floor-Fastening Plate 8 is also possible for specific applications.
 |
 |
 |
 |
Carrying capacity 50 kg/castor

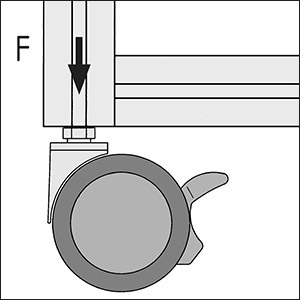

If the floor is uneven or the weight is distributed unevenly, the load is calculated separately for each Castor using the following formula:
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 22041431 |
| eCl@ss 4.1 | 22041431 |
| eCl@ss 5.0 | 23250319 |
| eCl@ss 5.1 | 23250319 |
| eCl@ss 6.0.1 | 23370201 |
| eCl@ss 7.1 | 23370590 |
| eCl@ss 8.0 | 23370590 |
| UNSPSC 7.0 | 31162701 |
| UNSPSC 9.0 | 31162701 |
| Customs Tariff Number | 83022000 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
