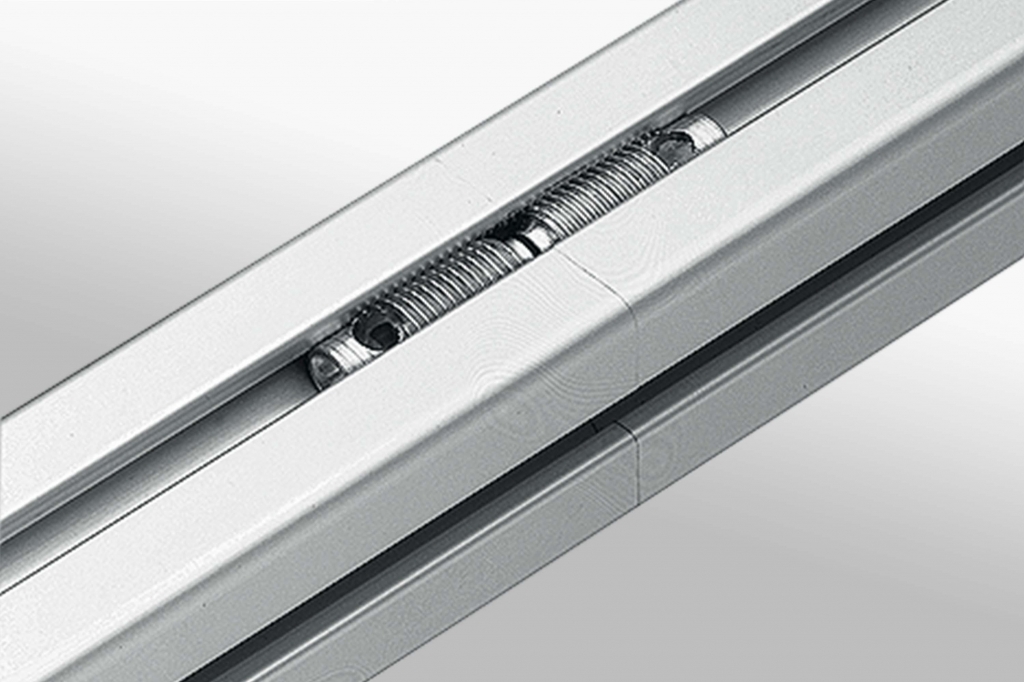

The Automatic Butt-Fastening Sets can be used to connect the end faces of two profiles from the same Line without mechanical processing. Automatic Butt-Fastening Sets should always be used in pairs. Depending on the profile size and load, several pairs may be necessary.
| Line | Line 8 |
|---|---|
| Property | stainless |
| Delivery unit | 1 set |
| Torque | Mstainl. = 11 Nm |
| Weight | m = 43 g |
 |

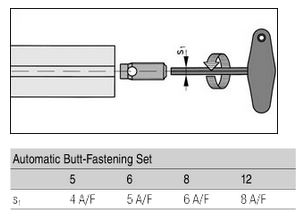

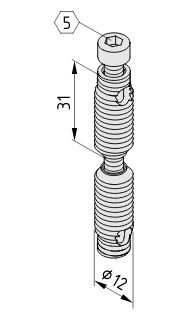

The Fastener is screwed into a profile groove in the end face, the thread being cut automatically. Use of a lubricant is recommended. Note: All Fasteners with a through bore for the fastening screw have a counter-clockwise thread on the outside in order to prevent the Fastener twisting when the screw is tightened. The Fasteners with internal threads have a clockwise thread on the outside. |
 |
When driving the Fastener with internal thread into a profile, additional anti-torsion protection can be provided by leaving the end protruding out so that it projects into the groove opposite. The Fastener with through bore will then need to be driven far enough into the adjoining profile to accommodate it. |
 |

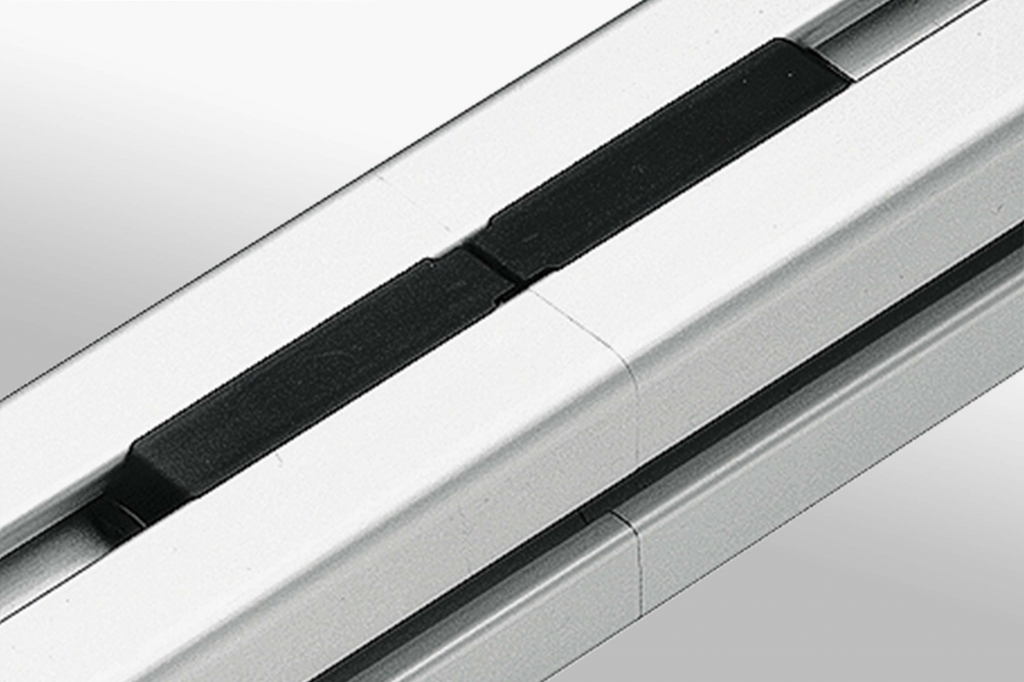

A cover is available for Automatic-Fastening Set 8. It is fitted after the fastening has been installed. |
 |
|
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 22041424 |
| eCl@ss 4.1 | 22041424 |
| eCl@ss 5.0 | 23250311 |
| eCl@ss 5.1 | 23250311 |
| eCl@ss 6.0.1 | 23250311 |
| eCl@ss 7.1 | 23360290 |
| eCl@ss 8.0 | 23360290 |
| UNSPSC 7.0 | 31162503 |
| UNSPSC 9.0 | 31162503 |
| Customs Tariff Number | 83024200 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
