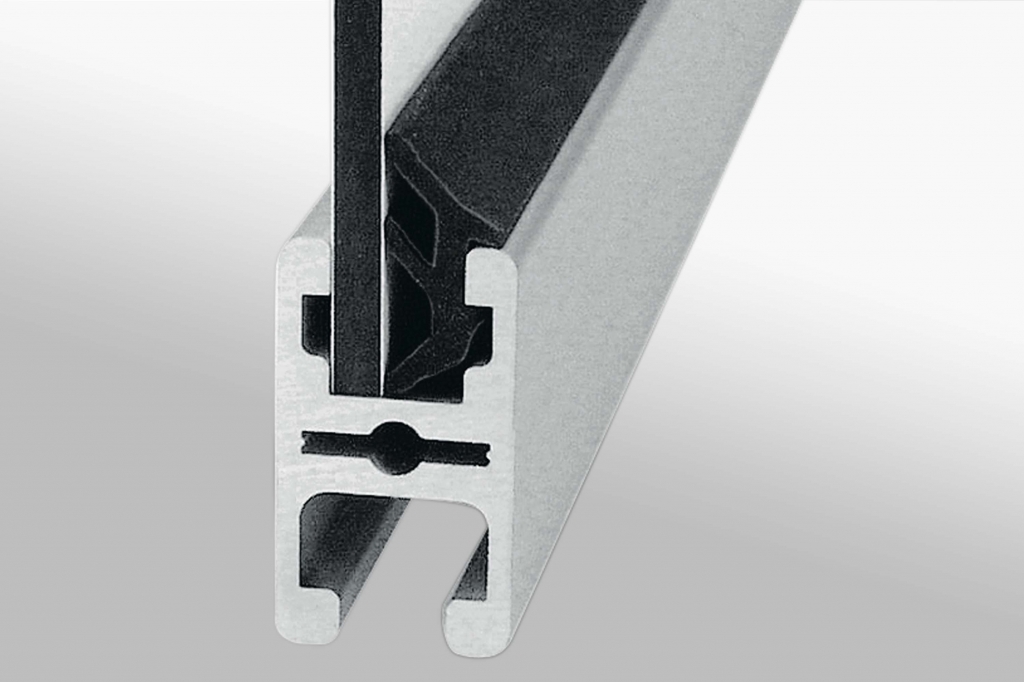

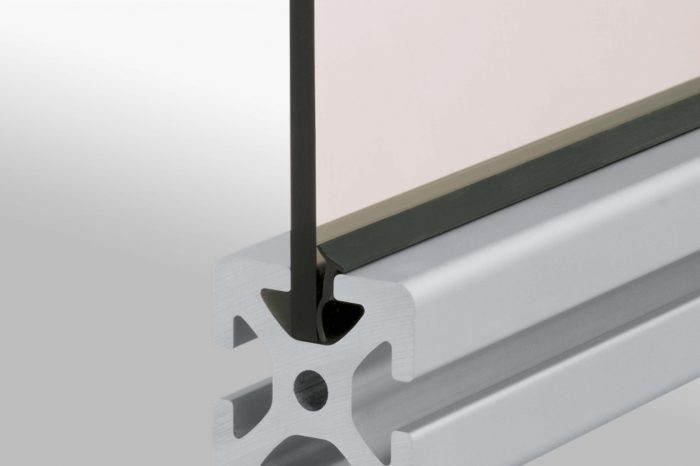

For fastening and sealing panel elements of differing thickness which are inserted into profile grooves 5, 6, 8 and 12.
The version in grey blends in well with the natural anodized surface of the profile.
The elastic material is resistant to cleaning agents and mineral oil.
| Weight | 2.293 lbs |
|---|---|
| Line | Line 8 |
| Material | TPV |
| Property | black |
| Delivery unit | 1 roll – length 65.62 ft |
| Weight, spec. Length | m = 52 g/m |
The Lip Seals are best wetted with soapy water prior to assembly to ensure they are fitted easily and correctly.
Careful pressure must be applied to lock them into the profile groove.
The Assembly Tool facilitates the process of pressing the Lip Seal into the profile groove in the right orientation.
 |
 |
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 35030108 |
| eCl@ss 4.1 | 35030108 |
| eCl@ss 5.0 | 35030190 |
| eCl@ss 5.1 | 35030190 |
| eCl@ss 6.0.1 | 35030190 |
| eCl@ss 7.1 | 35030190 |
| eCl@ss 8.0 | 35030190 |
| UNSPSC 7.0 | 30102315 |
| UNSPSC 9.0 | 30102315 |
| Customs Tariff Number | 40069000 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
