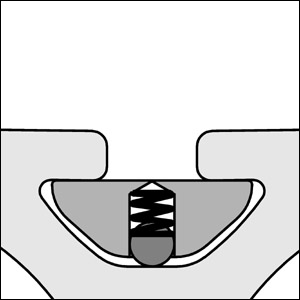

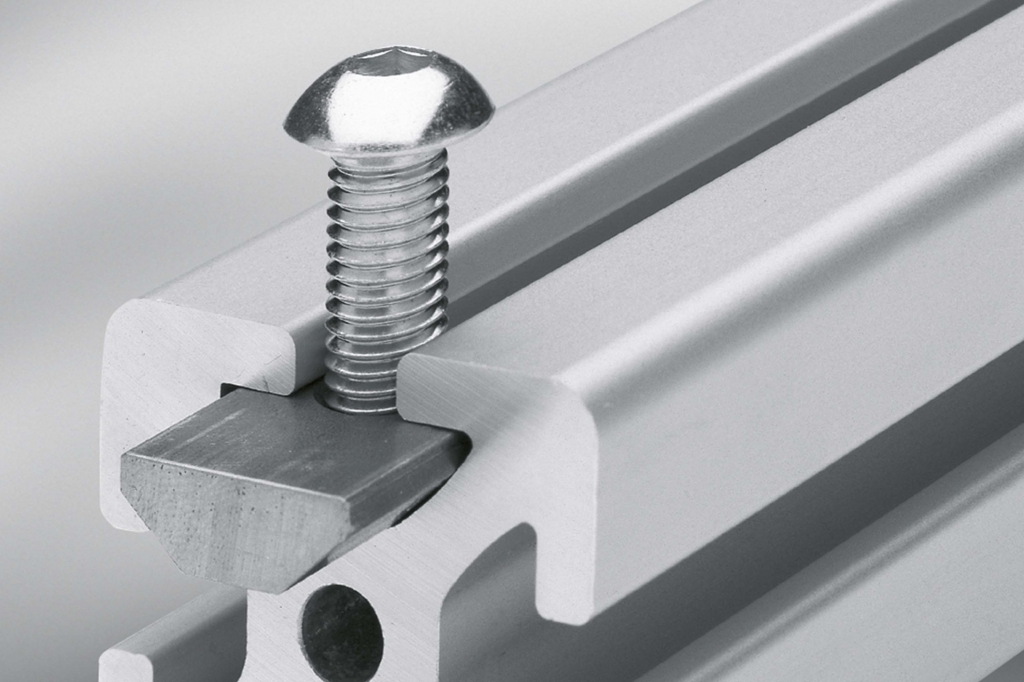

T-Slot Nuts St, heavy-duty are inserted into the profile groove in the end face where they are secured in position by means of a thrust piece.
T-Slot Nuts St, heavy-duty, can be used for very heavy-duty fastening applications.
Since their cross-section is adapted to the groove shape, tensile forces are guided into the aluminum profile.
They also have more supporting threads than the turn-to-insert T-Slot Nuts and thus allow greater screw tightening torques.
| Weight | 0.038 lbs |
|---|---|
| Line | Line 8 |
| Material | St |
| Property | bright zinc-plated |
| Delivery unit | 1 pce. |
| Thread | M6 |
| Force max | Fmax. = 3500 N |
| Torque | M = 14 Nm |
| Weight | m = 17 g |
| ESD | Yes |
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 23110806 |
| eCl@ss 4.1 | 23110806 |
| eCl@ss 5.0 | 23110806 |
| eCl@ss 5.1 | 23110806 |
| eCl@ss 6.0.1 | 23110890 |
| eCl@ss 7.1 | 23110890 |
| eCl@ss 8.0 | 23110890 |
| UNSPSC 7.0 | 31161708 |
| UNSPSC 9.0 | 31161708 |
| Customs Tariff Number | 73181692 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
