Connection Profile 8 40, natural - 0.0.422.35

Connection Profile 8 40, natural

SKU: 0.0.422.35

Categories:
, ,

Description

(The values apply for an individual profile section and not for a pair)Connection Profile 8 40, natural - 0.0.422.35

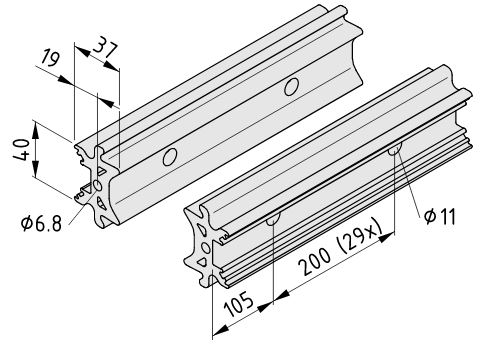

Connection Profile 8 40 is supplied in pairs and machined with 11 mm ⌀ bores (bore spacing 200 mm) for the fastening screws.

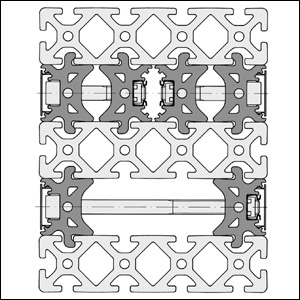

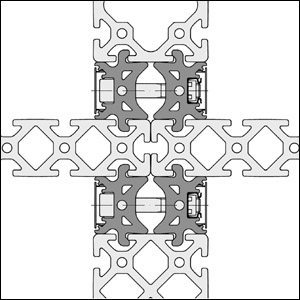

The use of Captive Nuts (designed to fix positions and prevent torsion) allows the Connection Profile to be fitted from one side. DIN 912-M10x60, M10x100 or M10x140 Hexagon Socket Head Cap Screws (tightening torque M = 34 Nm) are inserted at the relevant predetermined positions to join Connection Profiles.
The joint and/or screw heads and Captive Nuts can be covered over with a dust-tight Cover Profile 32.

Connection Profile 8 40, natural - 0.0.422.35 Connection Profile 8 40, natural - 0.0.422.35

Additional information

Weight N/A
Dimensions N/A
Line

Line 8
Material

Al, anodized
Property

natural
Delivery unit

cut-off, length 2 ft, 1 pair, cut-off, length 4 ft, 1 pair, cut-off, length 6 ft, 1 pair, cut-off, length 8 ft, 1 pair
Cross-sectional area

A = 8.97 cm²
Moment of Inertia, x-axis

Ix = 5.73 cm⁴
Moment of Inertia, y-axis

Iy = 19.85 cm⁴
Moment of Inertia, torsional

It = 4.59 cm⁴
Resistance Moment, x-axis

Wx = 2.9 cm³
Resistance Moment, y-axis

Wy = 6.96 cm³
Weight, spec. Length

m = 2.43 kg/m

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.

eCl@ss 4.0 22041424
eCl@ss 4.1 22041424
eCl@ss 5.0 23250311
eCl@ss 5.1 23250311
eCl@ss 6.0.1 23250311
eCl@ss 7.1 23251090
eCl@ss 8.0 23251090
UNSPSC 7.0 30102306
UNSPSC 9.0 30102306
Customs Tariff Number 76042100

Special Features

Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
