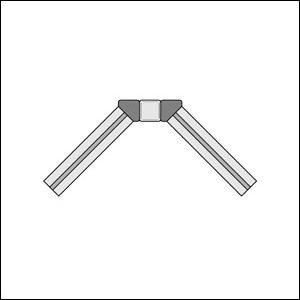

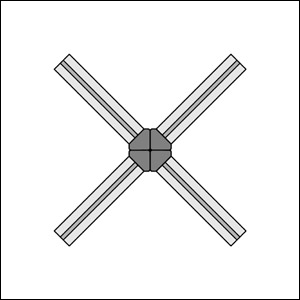

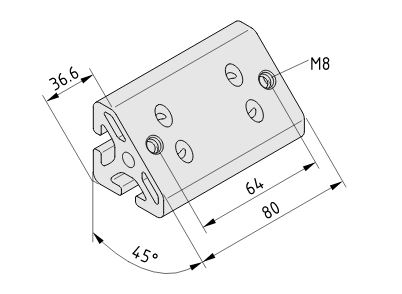

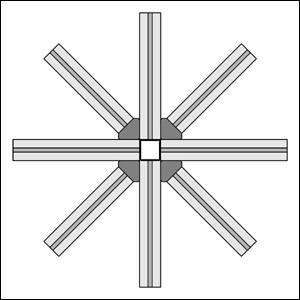

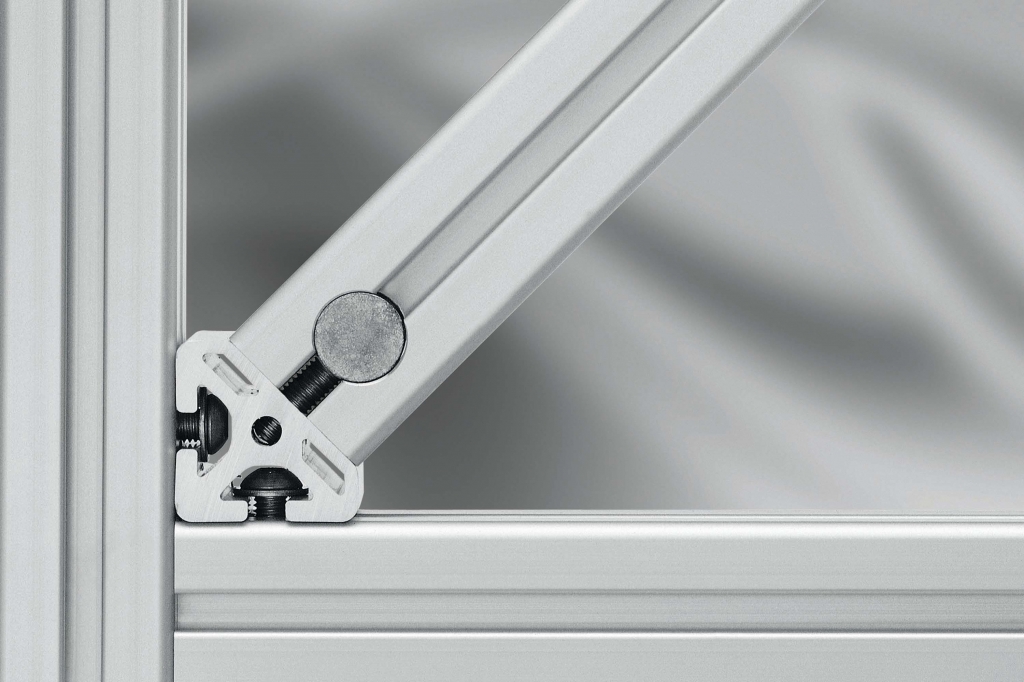

Connection elements for fastening a profile at an angle of 45° when working with bracing and latticework.
Where required, the anti-torsion pin of the Universal Fastener can be broken off at a specified break-point.
This Universal-Fastening Set can thus also be used to secure profiles to e.g. panels.

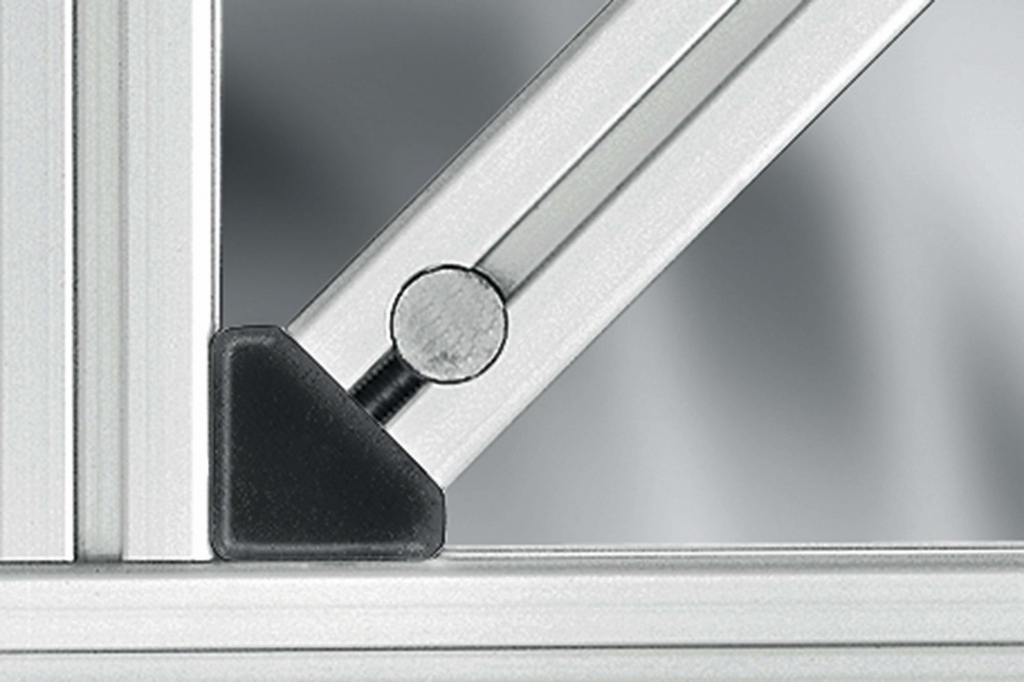

The ends of the Angle Elements can be covered with Caps 6 30×30-45° or 8 40×40-45°.
| Line | Line 8 |
|---|---|
| Material | Al, anodized |
| Property | natural |
| Delivery unit | 1 pce. |
| Weight | m = 148 g |

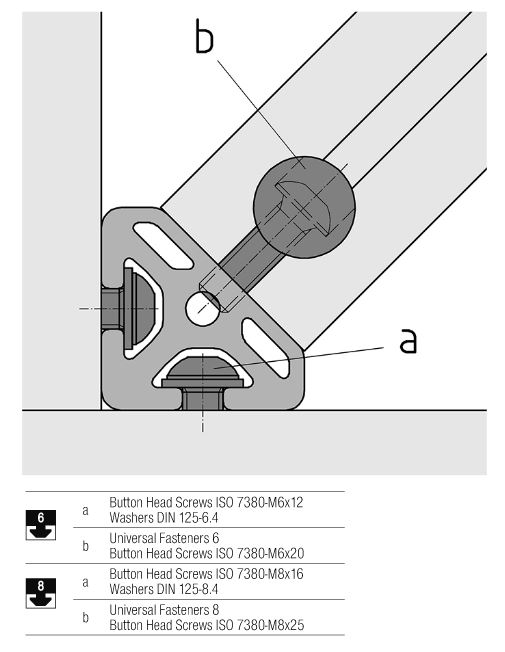

The Angle Elements are screw-connected with Button-Head Screws ISO 7380 and washers DIN 125.
The profile to be connected can be attached using two Universal Fasteners (without anti-torsion pins) and Button-Head Screws ISO 7380.
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 22041424 |
| eCl@ss 4.1 | 22041424 |
| eCl@ss 5.0 | 23250311 |
| eCl@ss 5.1 | 23250311 |
| eCl@ss 6.0.1 | 23250311 |
| eCl@ss 7.1 | 23360290 |
| eCl@ss 8.0 | 23360290 |
| UNSPSC 7.0 | 31162503 |
| UNSPSC 9.0 | 31162503 |
| Customs Tariff Number | 76169990 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
