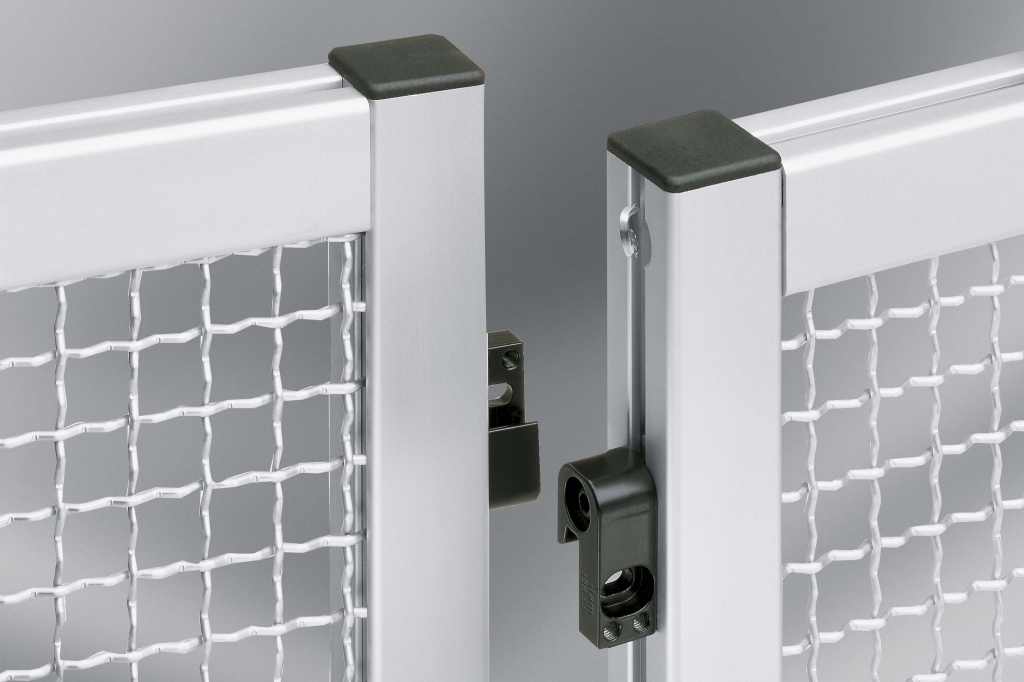

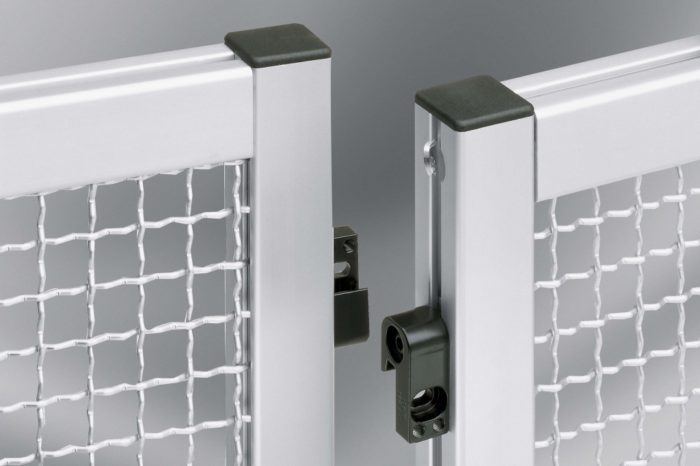

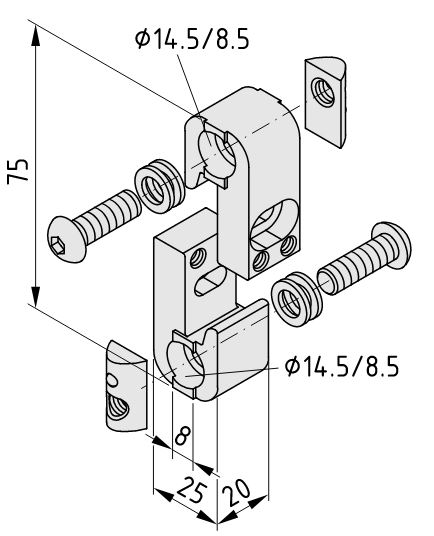

Screw-connected rabbet for swing doors.
Door Rabbets can also be used as fasteners for frame elements if, for safety reasons, a hanger is not allowed.
The frame element cannot be hung without a securing screw and therefore removal of the screw will be detected immediately.
| Weight | 0.419 lbs |
|---|---|
| Line | Line 8 |
| Delivery unit | 1 set |
| Weight | m = 190.0 g |

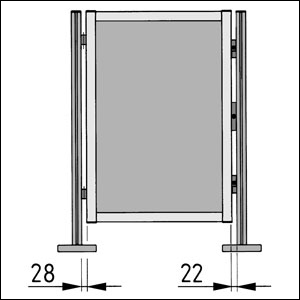

Example application for door construction:
Clearance on left 28 mm with Hinges 8 40 Zn (Section 3.4 Movable Fastening Elements) and on right 22 mm with Door Rabbets 8, in combination with Door Lock 8 (Section 4.3 Locks and Catches).
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 |
22041424
|
| eCl@ss 4.1 |
22041424
|
| eCl@ss 5.0 | 23250311 |
| eCl@ss 5.1 | 23250311 |
| eCl@ss 6.0.1 | 23250311 |
| eCl@ss 7.1 | 23360290 |
| eCl@ss 8.0 | 23360290 |
| UNSPSC 7.0 | 30152001 |
| UNSPSC 9.0 | 30152001 |
| Customs Tariff Number | 79070000 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
