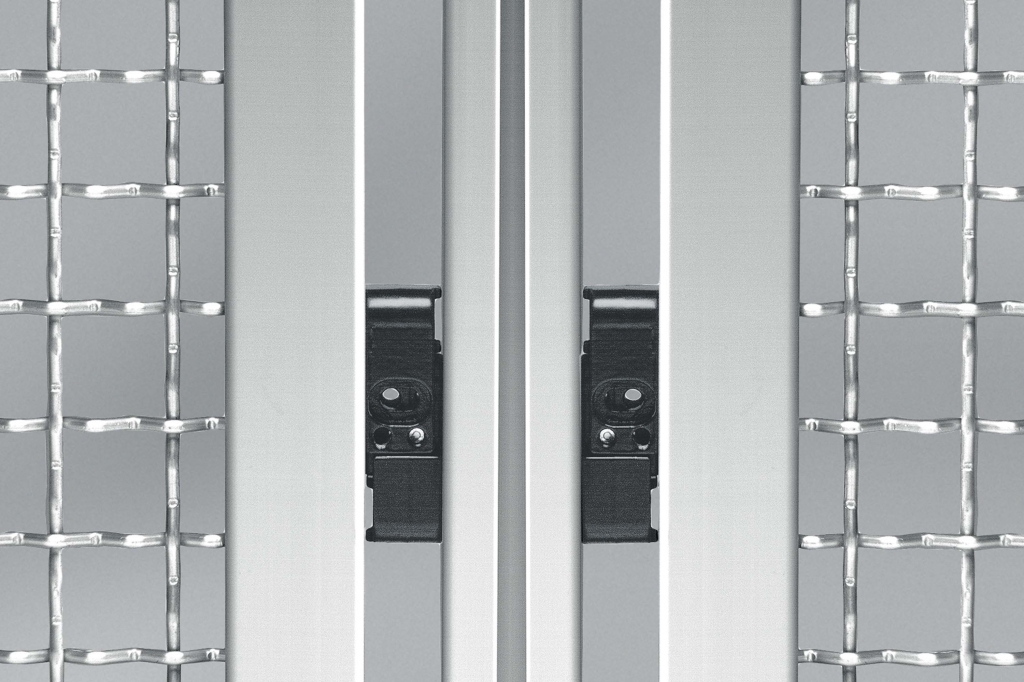

The particularly robust design of Hanger 8 enables frame elements to be frequently attached and secured to Stand Profiles 8.
If required, the Hangers 8 can be screwed together from the front or rear (for safety reasons).
Two Hangers 8 and appropriate Fastening Sets are required for each attachment point.
| Weight | 0.192 lbs |
|---|---|
| Line | Line 8 |
| Delivery unit | 1 set |
| Force max | Fmax. = 750 N |
| Weight | m = 78 g |

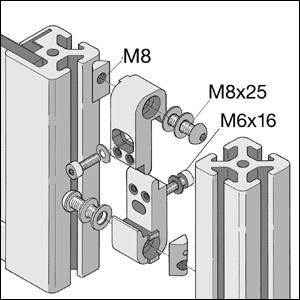

Hanger 8 allows two variations of frame assembly:

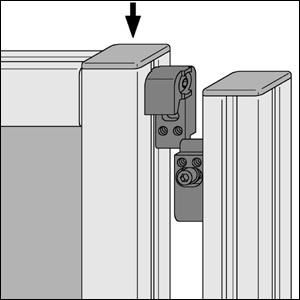

1. Very easy 1-man assembly: the frame element is lowered from above onto the hangers on the Stand Profiles, lugs on the hangers engaging to ensure stability. They are then secured by the Cap Screws provided.

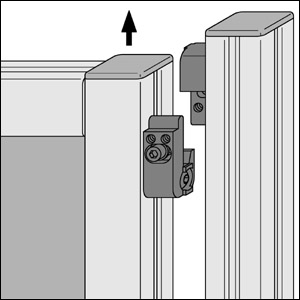

2. The frame element is slid into the hanger on the Stand Profile from below and secured with the Cap Screw. Removal of the screw results in the frame element dropping down.
 |
 |
 |
Attaching the Hanger from the front ensures that the frame and panel elements can be fitted without gaps. |
 |

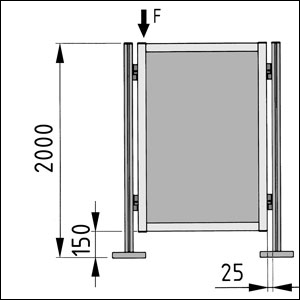

F = approx. 750 N The clearance dimension between frame and Stand Profile is 25 mm. Dimensional tolerances of ± 5 mm can be adjusted through Hanger 8. |
 |

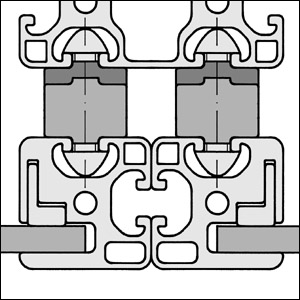

If the upper Hanger 8 is fitted to the Stand Profile and the lower Hanger 8 to the frame element, removal of Hexagon Socket Head Cap Screw M6 will result in the frame element being released. |
 |

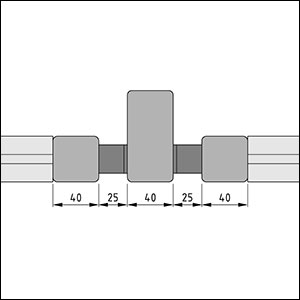

Hanger 8 in conjunction with Clamp Profile 8 40×40. |
 |

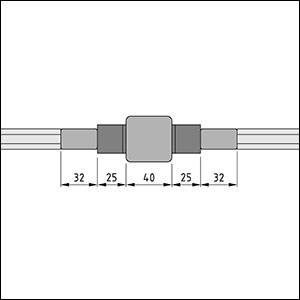

Hanger 8 in conjunction with Clamp Profile 8 32×18. |
|
F = approx. 750 N The clearance dimension between frame and Stand Profile is 25 mm. Dimensional tolerances of ± 5 mm can be adjusted through Hanger 8. |
