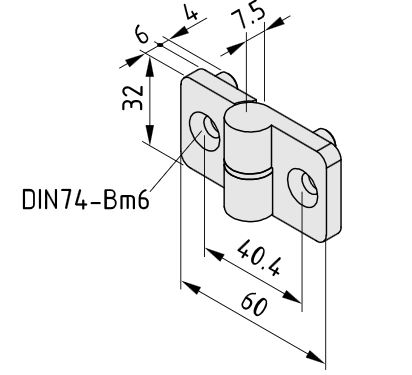

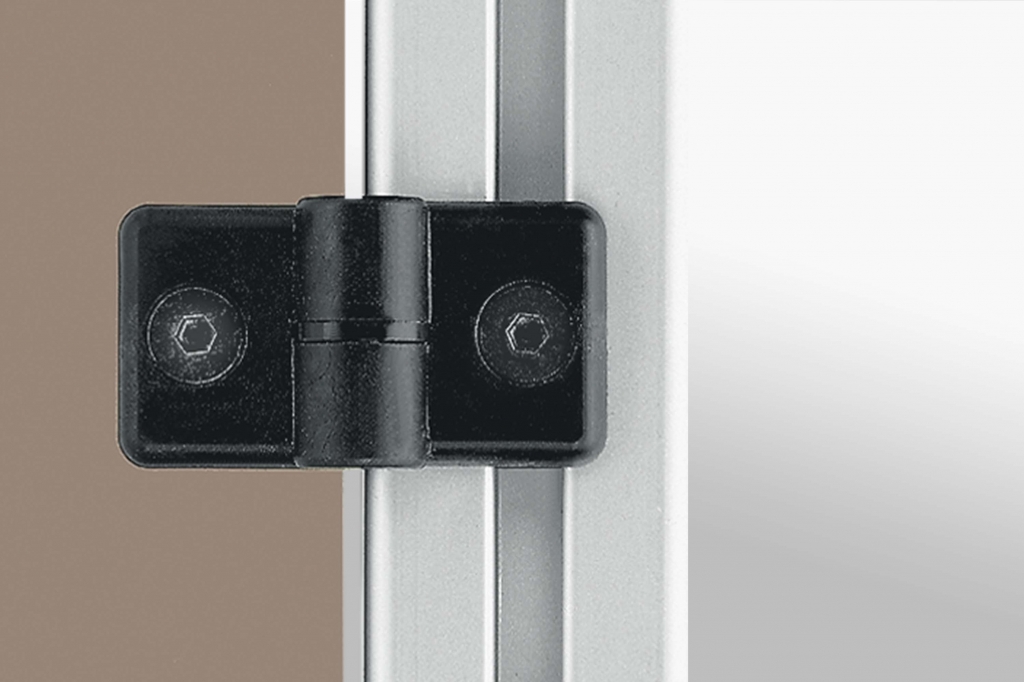

Hinges PA are simple components for lightweight doors and lids. They are provided with an anti-torsion element which engages on the profile grooves.
Panel elements secured with Hinges PA must be machined with the appropriate holes.
>
Double Hinges PA can only be used on 20 mm wide profiles in Line 5, on 30 mm wide profiles in Line 6 and on 40 mm wide profiles in Line 8.
| Weight | 0.04 lbs |
|---|---|
| Line | Line 8 |
| Property | black |
| Delivery unit | 1 pce. |
| Force max | Fmax. = 100 N |
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 22041403 |
| eCl@ss 4.1 | 22041403 |
| eCl@ss 5.0 | 23250304 |
| eCl@ss 5.1 | 23250304 |
| eCl@ss 6.0.1 | 23250304 |
| eCl@ss 7.1 | 23250304 |
| eCl@ss 8.0 | 23250304 |
| UNSPSC 7.0 | 31162403 |
| UNSPSC 9.0 | 31162403 |
| Customs Tariff Number | 39269097 |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
