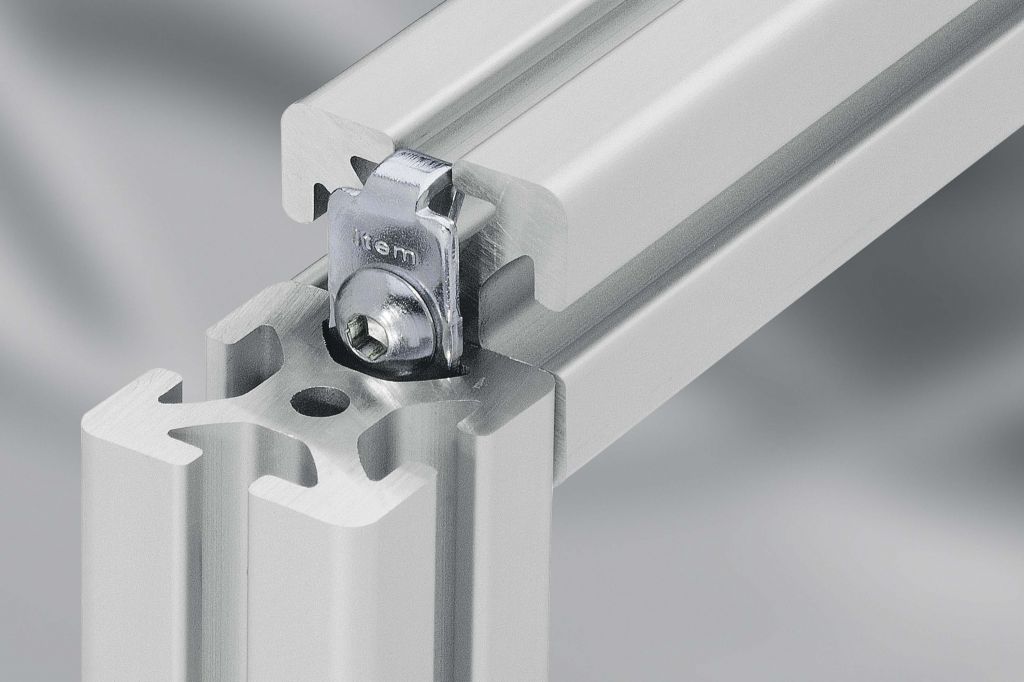

Right-angled, power-locking profile connections with high-strength and minimum processing requirement.
The standard connecting plate ensures optimum load application, with the profiles being correctly fixed relative to each other.

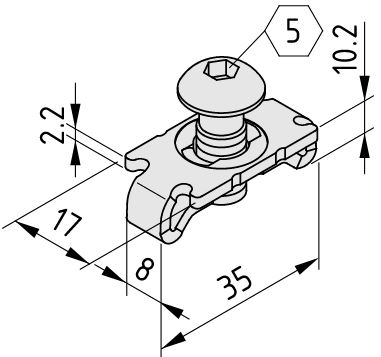

The Standard-Fastening Set 8, bright zinc-plated consists of:
| Weight | 0.05 lbs |
|---|---|
| Line | Line 8 |
| Property | bright zinc-plated |
| Delivery unit | 1 set |
| Torque | Mbz-p = 25 Nm |
| Weight | m = 21 g |
| ESD | Yes |
 |

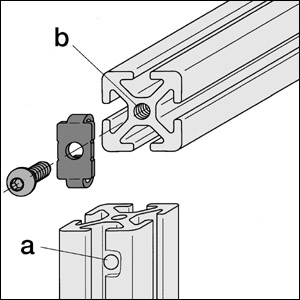

The necessary thread is tapped directly into the core bore of the profiles. |
 |
|
|
Position of the through holes for the key |

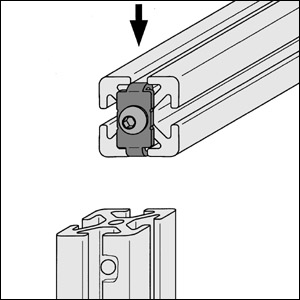

The standard connecting plates can be arranged to match the way in which the profiles are fitted.

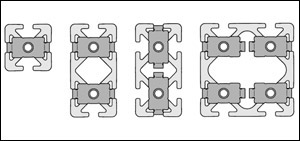

Large profiles with high load-bearing capabilities can be connected using a larger number of Standard Fasteners.
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems.
Do you need the classification data for all item products for your e-procurement system?
If so, please don’t hesitate to contact us.
| eCl@ss 4.0 | 22041424 |
| eCl@ss 4.1 | 22041424 |
| eCl@ss 5.0 | 23250311 |
| eCl@ss 5.1 | 23250311 |
| eCl@ss 6.0.1 | 23250311 |
| eCl@ss 7.1 | 23360290 |
| ECLASS80 | 23360290 |
| UNSPSC 7.0 | 31162503 |
| UNSPSC 9.0 | 31162503 |
| Customs Tariff Number . | 73269098 |
 |
These components are protected against electrostatic discharge. Static discharge can damage electrical components. ESD-safe components safely dissipate differences in potential. |
 |
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc. |
 |
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with. |
